High Performance Concrete (HPC)

High Performance Concrete (Image Credit The Constructor)

High Performance Concrete (HPC)

High Performance Concrete (HPC)


High Performance Concrete (HPC)

➤ The Performance Requirements of Hardened concrete or high-performance concrete are more or less well defined With respect to Shape, finish, strength, durability, shrinkage, and creep,
➤To achieve these objectives economically, the fresh concrete in addition to having a suitable composition in terms of quality and quantity of the materials should satisfy a number of requirements from the mixing stage till it is transported, placed in a framework and compacted,


Definition of high performance concrete➤

➤ High-performance concrete (HPC) can be defined as concrete that possesses high strength, work-ability, density, low permeability and resistance to chemical attack,
HPC is concrete that has been designed to be more durable and if necessary stronger than conventional concrete,


Introduction of high performance concrete➤

➤Deterioration, long-term poor performance, and inadequate resistance to hostile environments led to the accelerated research into the microstructure of concrete and hence the evaluation of high-performance concrete,
➤ Long-term performance of structures has become vital to the economics of a nation,
➤As a result, new materials and composites have been developed,
➤Today concrete structures with high compressive strength of 140 MPa are being built in United States and Europe,


Benefits for the designer➤

➤ The benefits of high-performance concrete to the designers are much more than those of high-strength concrete,
➤Designers can design smaller cross-sections,
➤Slender members,
➤High Elastic modulus,
➤Initial high early strength,
➤Rapid attainment of final creep level,


Benefits for the producer of high-performance concrete➤


➤In the Production of high-performance concrete Quality control in terms of raw materials and finished products is imperative,
➤Increased quality control leads to increased profitability and productivity of usual concrete,
How is high-performance concrete made?

Mechanism of high performance concrete➤

Under compressive loads, failure in normal concrete occurs either➯

➱Within the hydrated cement paste,
➱Along the interface between the cement paste and aggregate particle,
➱Aggregate,

To improve the strength and other properties it is necessary to strengthen these weak areas,


Improving the strength of hydrated cement paste can be done by➮

➤Reducing the water binder ratio and hence the usage of super plasticizing admixtures having high range water reduction capacity,
➤Using supplementary Cementitious materials,


Increasing the strength of the transition zone➮

➤Reducing water and cement ratio.
➤Using supplementary cementitious materials.
➤Ensuring proper coating of aggregates with cement paste.
➤Use of smaller-sized aggregates leads to homogeneous distribution of water.


 Aggregate Failure➱

➤Due to Aggregates failure Cement paste material remains intact.
➤Failure plane propagates through the Coarse aggregate particles.

What are the two typical ingredients used in high performance concrete?

Ingredients of High performance concrete➤

➤Cement (O.P.C, blended Cements etc.)
➤Water,
➤Aggregates
➮Fine Aggregates
➮Coarse Aggregates
➤Admixtures
➤Supplementary Cementitious materials(Fly Ash, Silica fume, GGBS, etc.)


Cement➱

Cement Selection is critical to rheology and compressive strength.

➤Fineness of Cement

➮ From the Strength point of view, the finer the cement the better the concrete,
➮ From the Rheological point of view, The finer the cement the more reactive concrete,


Water➱

➱Chilled water is added to reduce the concrete temperature,
➱ice flakes are added as a part of mixing water,


Aggregate➱

Strength of aggregate depends on the nature of the parent rock Prepared from.

➱Avoid rocks with weak cleavage planes of severely weathered.
➱Fine aggregates should be rounded and uniformly graded.


Admixtures➱

Super plasticiser➮

➱Disperses Cement Particles within the mix.
➱Reduces the Amount of mixed water.
➱Controls the rheology of very low water/binder ratio mixtures.
➱solve slump loss problems.

Supplementary Cementitious materials➱

➱Ground Granulated blast-furnace slag.
➱Fly ash (low Calcium, high calcium).
➱Silica flume or micro silica.
➱ Natural pozzolana (meta kaolin, rice husk ash).


Aspects of High-performance concrete in fresh state➱

➱Batching and mixing.
➱Tests in fresh HPC concrete.
➱Placement and Compaction.


Batching and Mixing➱

➱Batching of individual materials must be accurate.
➱Longer mixing time is required to ensure homogeneity as the mix is usually sticky.
➱Mixing time of 90 seconds is recommended.


Tests on Fresh HPC Concrete➱

Following tests on fresh high-performance concrete is carried out.

➱Slump / Flow table
➱Air content
➱Temperature
➱Unit weight
➱Setting time of mix
➱Bleeding
➱Slump retention and Pump-ability


Placement and compaction of High performance concrete➱

➱Concrete mix is carried from the batching plant with the help of transit mixtures.
➱Method of placing is mostly by pumping.
➱Compaction is by both External as well as internal means.


Test on Hardened high performance concrete➱

The following tests are carried out on hardened high-performance concrete.

➱Compressive strength (Cube and Cylinder)
➱Split Tensile strength.
➱Modulus of elasticity.
➱Water permeability.
➱Rapid Chloride penetration test(RCPT)


Durability of HPC➱

➱Durability of Concrete can be defined as the resistance of concrete to deteriorating influences which may be inside the concrete itself or which may be present in the environment to which it is exposed.
➱ The durability of Concrete Largely depends on the ease with which fluids, both liquids and gases, can enter into and move through the concrete. This property is known as the permeability of concrete.
High Performance Concrete (HPC)

The durability of HPC: Carbonation➱                                          ͏͏͏

➱ In Presence of Moisture CO2 Present in Air reacts with Ca(OH)2  to form CaCO3.
➱ Carbonation causes the reduction in pH of pore water from between 12.6 to 13.5 to about 9.
➱ Steel embedded in concrete forms a thin passivity layer of oxide which remains only with high pH.
➱ As The pH reduces the oxide layer is removed and the corrosion of steel starts, its volume increases and creates tensile stresses in concrete.

Durability of HPC: Chloride attack➱

➱ The primary action in chloride attack is the corrosion of steel and consequently damage to surrounding concrete.
➱ As long as the oxide film on steel is present, The steel remains intact.
➱ Chloride ions destroy the film and in the presence of water and oxygen corrosion occurs.
➱ Corrosion does not occur in dry or fully submerged concrete but occurs in alternate wetting and drying and relative humidity of 70-80 %.
➱ Chlorides can be present in concrete through the use of contaminated aggregates, seawater or chlorides in admixture.
➱ According to I.S.  total chloride content in cement should not exceed 0.05% by mass of cement.
➱ I.S. 456-2000 states that total Chloride content in concrete should not exceed .4 and .6 kg/cum for pre-stressed and reinforced/plain concrete containing embedded metal respectively.
High Performance Concrete (HPC)

Durability of HPC: Sulphate attack➱

➱ Common sulphates present in soil and groundwater are sodium, potassium, magnesium, and calcium.
➱ Sulphates present in solution react with hydrated cement paste.
➱ Sodium sulphate attacks Ca(OH)2 and gypsum is deposited, Ca(OH)2 Can Also be completely leached out.
➱ Magnesium sulphate attacks calcium silicate, calcium aluminate hydrates and also Ca(OH)2.
➱ Calcium sulphate attacks calcium aluminate hydrate (C3A) forming ettringite.
➱ Ettringnite formed has a higher volume and causes expansion in concrete.

Durability of HPC: Alkali Aggregate Reactivity➱

➱ Reaction between active silica constituents of aggregates and alkali in cement forms alkali-silicate gels in planes of weakness or either in pores or surface of aggregates.
➱ The reaction starts with an attack on siliceous minerals in aggregates by alkaline hydroxide in pore water derived from the alkalies(Na2O or K2O) in cement.
➱This gel is of unlimited swelling type, absorbs water and causes an increase in volume.
High Performance Concrete (HPC)

Development Of HPC Mixes➱

➱ Computing the Target strength.
➱ Estimating mixing water content.
➱ Calculation of water to cementitious material ratio.
➱ Selection of percentage of SCM.
➱ Selection of fine to total aggregate ratio.
➱ Calculation of aggregate contents.
➱ Selection of Superplasticiser dosage.
➱ Trial mix and testing.

Development Of HPC Mixes with Fly Ash➱

Approx mixing water for 20 mm aggregate and 100 mm slump

Fly Ash Content  Water kg/Cum
30 155+5 or 155-5
40 150+5 or 150-5
50 145+5 or 145-5

➱ Selection of fine to total aggregate – Normally 25-40 % is used depending upon the grade of concrete, nominal size of aggregate and workability required.
➱ Calculate aggregate content based on the absolute volume method.
High Performance Concrete (HPC)

High Performance Concrete (HPC)


Where is high performance concrete used?
What is high performance concrete used for?

All Necessary Factors➱


Specifications for Bandra – Warli Sea Link Project➱

 ➱ Selection of water/binder ratio sufficient enough to achieve the target strength with special consideration from a durability point of view.
➱ Use of Supplementary Cementitious material together with a low water to binder ratio to make concrete structure more dense with a minimum volume of capillary pores, hence making it more durable.
➱ Water content in the mix is required to be kept at the lowest practical so as to minimize drying Shrinkage.
➱ Limiting the heat generation (especially in mass concrete) by keeping the total OPC content in the mix to the minimum required.
➱ Use of high-range water reduction admixtures to achieve the required workability.
High Performance Concrete (HPC)

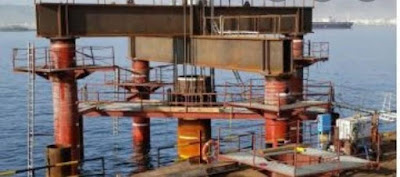

Bandra-Warli Sea link under construction
High Performance Concrete (HPC)
bandra-Warli Sea link

Project Specification➯

Grade of Concrete- M60
Target Strength – 74 MPa
Max.Water / Binder ratio – < .35
Permeability – Less than 25 mm as per DIN 1048

Ingredients (Kg/cum) Earlier Mix Modified mix
Cement  320 300
Fly ash  110 (25 %) 196 (40 %)
Micro silica 43 40
Total cementitious material  473 536
total water  127 136
W/C ratio  .27 .25
Coarse aggregate  947 1077
fine aggregate 947 750
Admixture 15.1 10.9

Properties  Earlier Mix Modified Mix % (Modified/Earlier)
Compressive Strength (MPa)
3 days 39.8 39.3 98.7 %
7 days 56.9 54.8 96.3 %
28 days 78.1 74.7 95.6 %
56 days 79.4 80.9 101.9 %
91 days 80.9 92.2 113.9 %

Durability properties  Field results
Water Permeability @ 28 days NIL
RCPT @ 28 days 657 Coulombs
RCPT @ 91 days 432 Coulombs

High Performance Concrete (HPC)

for more such results click here







Soil Nailing , Soil Nailing Technique, Types of soil nailing

Soil Nailing

Soil Nailing, Soil Nailing Technique, Types of Soil Nailing



Soil Nailing , Soil Nailing Technique, Types of soil nailing,
Soil Nailing




SOIL NAILING AND SOIL NAILING TECHNIQUE



INTRODUCTION OF SOIL NAILING➱


Soil
Nailing
Is a process To Make The soil or Soil fill  More Able to resist
loads (direct loads, Shear Loads Radial loads etc) Or to Make it more
stable,Soil nailing Reinforces soil hence the soil becomes more
stable,

Generally
Soil Nailing Technique is used in steep sloppy areas, high fill areas, High
embankment, retaining walls And other Structures where There is more chance of
failure of soil,

Here in
In this post we are going to describe about soil nailing process, soil nailing
technique, types of soil nailing and its applications,

How does a soil nail wall work?

SOIL NAILING PROCESS- TECHNIQUE➱


What is soil nailing technique?
In the
Process or Technique of Soil Nailing The Soil Is Reinforced With An Element
Such As Self Drilling Anchor bars or Reinforcing Bars Which Are
called Nails See in the fig.

These Self
Drilling Anchor bars or Reinforcing Bars are installed into Self Drilled holes
or pre-drilled holes and after it grouted with contentious mix,

These Self
Drilling Anchors or Reinforcing bars are installed at an angle of 5 to 20
degrees with vertical generally or any other angle which is specified,

As The
Drilling Work Proceeds,The concrete, Shotcrete or any other Drilling materials
are used on The drilled face to grout the nails,

Soil Nailing , Soil Nailing Technique, Types of soil nailing,
Soil nailing Details



MACHINERY REQUIRED FOR SOIL NAILING➱


➤Grouting and mixing Equipments,
➮ High-speed shear Colloidal mixer, Grout pump,

➤Drilling Equipment,
➮Rotary Air Flushed and water Flushed drilling machine, tricone bit , Rigid Drill Rods,

➤Compressor,
➤Shotcreting  Or Guniting Equipment,


MATERIALS REQUIRED FOR SOIL NAILING➱


➤Reinforcing Steel Rods Or Nails,
➤Self drilling anchor(SDA) bars,
Soil Nailing , Soil Nailing Technique, Types of soil nailing
Self Drilling Anchor

➤Shotcrete, Concrete or Any other grouting material,
➤Grout mix,


ORIGIN
OF SOIL NAILING TECHNIQUE➱


➤The
soil nailing technique was first time implemented in France near Versailles for
a Railroad widening Project in 1972,
Soil Nailing , Soil Nailing Technique, Types of soil nailing
Soil nailing

➤The soil nailing Technique in United States was used first time for the support of a
13.7-metre deep foundation excavation in dense silty sand in 1976,


TYPES OF SOIL NAILING -METHODS➱


How do you install soil nails?

Following
Are the Various Types of Soil Nailing Methods or process,
Soil Nailing , Soil Nailing Technique, Types of soil nailing
Inserting nails and fixing plates soil nailing
Soil Nailing , Soil Nailing Technique, Types of soil nailing
Using Shotcrete and grouting



1-Grouted
Soil Nailing or Drilled Soil Nailing



➤In
This type of Soil Nailing and drilling is done on the Wall or the Slope Face
Where nailing is Required,
➤Then
The nails are inserted in the Drilled Holes,
➤After
it the Drilled hole is Filled with Cement Slurry, Shotcrete or any other
Grouting Material,
➤The
The diameter Of Nails Are Taken From 100 mm to 200 mm And the Spacing between each
nails Are Taken 1.5 meters,
Soil Nailing , Soil Nailing Technique, Types of soil nailing
Grouted soil nailing



2- Driven
Soil Nailing


➤This
Type Of Soil Nailing Is used for temporary Stabilization of Slopes,
➤This
Soil Nailing Is Faster Than Other nailing methods,
➤In
In this Soil Nailing Method, The Reinforcement bars are inserted in the face of
slope While the Excavation Activity is Going On,
➤The
The diameter of Reinforcing bars is normally 19 mm to 25 mm, Which is Smaller in size
as Compared to Others,
➤The
Spacing between Nails is Provided 1 meter to 1.2 meter,
➤In The
Driven Soil Nailing There is no Protection of Nails from Corrosion And Rusting,

Soil Nailing , Soil Nailing Technique, Types of soil nailing
Driven soil nailing

3- Self
Drilling Soil Nailing


➤Self
Drilling Anchors (SDA) Bars or Hollow bars are used in self-drilling soil
nailing,
➤Bars
are inserted and Drilled into the surface, and at the same time Grout is
injected While the Drilling Process is going on,
➤In
Self Drilling Soil nailing The Self Drilling Anchors Or hollow Reinforcing Bars
Are More Protected From Corrosion and rusting as compared to Driven soil
nailing method,
➤This
is Faster Than Driven Soil Nailing,

Soil Nailing , Soil Nailing Technique, Types of soil nailing
Self drilling soil nailing

4-Jet
Grouted Soil Nailing


➤In
This Soil nailing method,The water jets Are used for eroding The Soil To make
holes in the surface,
➤After
it the Reinforcing Steel Bars Are inserted and fitted in the ready holes and
grouting is done with shotcrete, Concrete or Other Grouting materials,
➤In Jet
Grouted Soil Nailing The Reinforcing Steel bars are protected From corrosion
and rusting,

Soil Nailing , Soil Nailing Technique, Types of soil nailing
Jet grouted soil nailing

5-
Launched Soil Nailing


➤In
launched soil nailing, The Reinforcing steel bars are inserted Forcefully into
surface in a single shot with the help of of highly compressed air mechanism,
➤In
This Method The Installation process of nails is fast, But it is difficult to
control over length of bars penetrating the surface,
➤The
length of Reinforcing nails is around 6 meter and the diameter is 38 mm,
Soil Nailing , Soil Nailing Technique, Types of soil nailing
Launched soil nailing



APPLICATIONS
OF SOIL NAILING➱


➤Soil
nailing is used for the stabilization of Existing Retaining walls,
➤In
Excavating retaining structures in urban areas for high-rise buildings and
underground utilities,
➤In
Eradicating and Redemption of Landslide,
➤Stabilizing
the Roadways, Highways, and expressways embankments and steep slopes,
➤Retrofitting
and construction of abutments of bridges,
➤Steep
cutting stabilization,
➤Stabilization
of over steep existing embankments,
➤Providing
long-term stability to existing concrete structures without demolition and
rebuilding costs,
➤Temporary
excavation shoring,
➤Stabilization
of Railroad cut slopes,
➤For
Strengthening The Tunnel portals in steep and unstable slopes,
➤For
Stabilization of Slopes in hilly areas where roads are constructed, where
movement of vehicles, people or animals is more,

Soil Nailing , Soil Nailing Technique, Types of soil nailing
Soil nailing





ASSUMPTIONS
AND CONSIDERATIONS IN INSTALLATION OF SOIL NAILS➱


➤Soil
Nailing Should be started within some limit of time after excavation, any delay
may lead to the collapse of soil slope,
➤Reinforcing
bars or soil nails must penetrate beyond the slip plane into the passive zone
for 4 meters to 5 meters,
➤Metallic
reinforcement soil nails get corroded,
➤The
The area occupied by Reinforcing soil nails is sterilized and the site posed
constraints to the development in future,
Soil Nailing , Soil Nailing Technique, Types of soil nailing
Soil nailing Anchor plates
What is a soil nail wall?


ADVANTAGES
OF SOIL NAILING➱


What are the advantages of soil nailing?

➤With
the help of soil nailing the erosion of soil of high fill, high embankment or
steep slope can be avoided,
➤After
soil nailing The age, durability and stability increase,
➤Soil
nailing is suitable for confined locations with difficult access As the
The equipment required for soil nailing is small and mobile to use,



➤The
failure of the soil nailing system is ductile that’s why it provides
warning signs before failure,

You must read About Asphalt Concrete And Bituminous Concrete Click Here
Click here for Engineering jobs and other updates



ASPHALT, ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

ASPHALT, ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

ASPHALT, ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
ASPHALT CONCRETE
Bituminous Concrete layer

ASPHALT, ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

What is ASPHALT CONCRETE ?:➤

➤Basically Asphalt Concrete is Just Aggregate Coated With Asphalt Cement.. and Then Compacted.

There Are Three Basic Elements To The Compacted Mix.
➱1-Aggregate Particles,
➱2-Asphalt Cement,
➱3-Air Voids,
What is meant by bituminous concrete?
What is the difference between bituminous concrete and asphalt?
What is BM and BC?

INTRODUCTION ➤

➤Asphalt is a Mixture of Bitumen of Tar with aggregate,
➤Bitumen Is an Extract of Petroleum Crude,
➤Crude Oil is formed by the decomposition of dead marine microorganisms in the absence of air or oxygen,
➤Bitumen is waste collected during the distillation of petroleum crude,


ACTIVITIES IN ASPHALT CONCRETE WORK ➤

➤Dense Bituminous Macadam( DBM) Or Bituminous Macadam(BM),
➤Bituminous Concrete(BC) OR Semi Dense Bituminous Concrete(SDBC),
➤Prime Coat – SS 1
➤Tack Coat -RS 1

What is DBM and BC?

What is DBM and BC in road construction?
What is BC layer in road construction?

MATERIALS IN ASPHALT CONCRETE ➤

➤Aggregate,
➤Bitumen,
➤Mineral filler (Lime/Cement/Rock Dust),
➤ Anti-striping Agent,
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
Asphalt Concrete Materials

MATERIALS PROPERTIES(AS PER BELOW TABLES)

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

PAVING OPERATION in ASPHALT CONCRETE ➤

CHECKS BEFORE PAVING(PRE-PAVING ACTIVITY)➱

➤Check The Trucks Are Adequate,
➤Check The Production capacity and Paving Capacity is Matching,
➤Check The Rollers Are Adequate,
➤Check The string line, Thermometer, and other tools are ready,
➤Check the screed Of the Paver is Heated As much as Required, (Maximum up to mix Temperature),
➤Check The screed is Blocked to the required loose thickness,
➤Check The Cold Joints are cleaned and applied with a tack coat,
➤Check The Cleaning Should Be done Properly Before Applying tack coat, The Surface Should be Free From loose particles, Dust, Or any other Deleterious Material,
➤Paver Level Sensor To be Set For Required Level Given Of String Wire Or Average Beams,
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

CHECKS DURING PAVING ➱

➤Tack Coat Should be Applied Uniformly With the rate of  Spray of 2.5 to 3 kg per 10 Square meter area,
➤Total Area Should Be covered With Tack Coat,
➤Start The Unloading Of the Truck into the paver, After checking The Temperature Of Mix,
➤Loose Thickness Should Be Checked With a Thickness Gauge Regularly in some Interval of Time, and Length,
➤Check The Camber with line rope, taper.
➤If any Segregated area is Found spread the fines with shovels prior to rolling,
➤Check for Rolling Should Be done As per the Rolling pattern,
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

SURFACE FINISH ➤

➤The tolerance in level should be in between +/- 6 mm,
➤The Core Density should be 92 % of Lab GMM.
➤Road Unevenness index shall be less than 2000 mm per kilometre for road works,
➤The Mix Binder Content shall be +/- .3% of  Designed OBC,
➤Surface Regularity DBM, BC shall be +/- 6 mm , +/- 3 mm,

TRANSVERSE JOINT MATCHING➤

➤The Joint Should be rolled parallel to the joint,
➤These joints are to be Rolled without vibrations,
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

LONGITUDINAL JOINTS MATCHING➤

➤Compact The joint during breakdown Rolling,
➤If two pavers are Working in echelon ,then the roller in the second lane shall roll the joint,
ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS

PLANT OPERATIONS For ASPHALT CONCRETE➤

CHECKS DURING PRODUCTION➤

➤Feed The aggregate to the plant to get the design mix,
➤Maintain The Bitumen Temperature at 150 degrees Celsius,
➤Maintain the aggregate Temperature at 160 to 170 degree Celsius,
➤Ensure The Mix temperature should be Between 140 to 150 degree Celsius,
➤Clean the Vehicles Neatly,
➤Load The mix onto Trucks and Cover it with Tarpaulins and Haul to site,
➤ Check The temperature at plant, and site and record it,


ROLLING PATTERN➤

The Rolling process should start 12 to 15 inches from the lower unsupported edge as the un-compacted edge provides the initial confinement during the first pass, thus minimizing lateral movement of the mix.
Succeeding pass should move to the edge once the central portion of the spread is compacted to some degree because the mix will support the roller and allow the edge to be compacted without lateral movement,

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS




ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS




ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS



REQUIRED MACHINES For ASPHALT CONCRETE➤

Some important machines are required for the Laying of Asphalt concrete, Bituminous Concrete Layer ,


1➮Paver machine

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
Paver machine





2➮Tendem Rollers

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
Tandem Roller





3➮Pneumatic Tyre Rollers



PNEUMATIC TYRE ROLLER➤

What is a pneumatic tyre roller?


➤The Pneumatic tyre roller(PTR) is tire mounted roller with having smooth tyre surface,
➤It’s Weight can be adjusted according to the requirement(Generally 16 to 18 mt for bituminous layers rolling is used),
➤It is used for Compaction and kneading action,
➤Longitudinal movement of the mix doesn’t take place unless the dia. is very low,
➤Horizontal forces are minimized with the use of larger diameters.
➤The movement of the mix under the tyre tends to be lateral,
➤The humps created during breakdown are of no significance and can be cleared in subsequent passes,
➤Under normal conditions, when the roller is on top of a firm mat it has no horizontal thrust as the tire flattens on the bottom which permits a 100 % vertical force,

ASPHALT,ASPHALT CONCRETE, BITUMINOUS CONCRETE LAYERS
PTR



CONDITIONS FOR PNEUMATIC TYRE ROLLERS TO BE EFFECTIVE➤

➤The most effective pressure is the highest pressure that can be used without overstressing the mix,
➤Pressure for normal Highway work when the tyre is hot is 90 psi and 70-75 psi when the tyres are cold,
➤Nine A wheel roller is used commonly,
➤Weight per wheel should not exceed 2000 to 3000 pounds,
➤Rim diameter for tyre -20 inches,
➤Tire width – 9 or 11 inches,
➤While compacting water should not be used on the tyres,


SUMMARY TABLE OF INFLUENCES OF COMPACTION➤

ITEMS EFFECTS CORRECTIONS
AGGREGATE
➮Smooth Surfaced

➮Rough Surfaced
➮Unsound

➮Absorptive

➮Low inter-particle friction

➮High inter-particle friction
➮Breaks under steel-wheeled rollers
➮Dries-Mix difficult to compact

➮Use light rollers, Low mix Temperature,
➮Use Heavy Rollers
➮Use Sound Aggregates, Use pneumatic rollers,
➮Increase asphalt in mix
ASPHALT
Viscosity
➮High

➮Low

➮Particles Movement Restricted
➮Particles moves easily during compaction
➮Use heavy rollers, Increase temperature,
➮Use light rollers
QUALITY
➮High

➮Low

➮Unstable and plastic under roller
➮Reduce Lubrication – difficult compaction
➮Decrease asphalt in mix

➮Increase asphalt in mix,Use heavy rollers

MIX
➮Excess Coarse aggregate

➮Over-sanded

➮Too much filler

➮Too light filler

➮Harsh mix – difficult to compact
➮Too workable – difficult to compact
➮Stiffens Mix-difficult to compact
➮Low cohesion – mix may come apart
➮Reduce coarse aggregate,Use heavy rollers
➮Reduce sand in mix,Use light rollers,
➮Reduce filler in mix,Use heavy rollers
➮Increase filler in mix
MIX TEMPERATURE
➮High

➮Low

➮Difficult to compact-mix lacks cohesion
➮Difficult to compact-mix to stiff
➮Decrease mixing temperature
➮Increase mixing temperature
COURSE THICKNESS
➮Thick lifts

➮Thin lifts

➮Hold heat – more time to compact
➮Lose heat – Less time to compact
➮Roll normally

➮Roll before mix cools, Increase mix temperature

WEATHER CONDITIONS
➮Low air temperature
➮Low surface temperature
➮Wind
➮Cools mix rapidly
➮Cools mix rapidly
➮Cools mix-crusts surface
➮Roll before mix cools
➮Increase mix temperature
➮Increase lift thickness


You Must Read WET Mix Macadam Construction Click here
You Must Granular sub base Construction Click here


 Get The Full Details here About ASPHALT CONCRETE WORK Click here

GRANULAR SUB BASE CONSTRUCTION – GSB CONSTRUCTION

GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION

GRANULAR SUB BASE CONSTRUCTION – GSB CONSTRUCTION

GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
GRANULAR SUB BASE


GRANULAR SUB BASE CONSTRUCTION

FUNCTION:➱

             It Acts as a Drainage layer for The pavements to avoid excessive wetting and weakening of the subgrade.

             In Strength, it is superior as compared to the subgrade, various materials and techniques are used for the construction of the base course.

             It is an intermediate layer between the subgrade and granular base course.

What is a granular sub-base?
What is a granular sub-base in road construction?

        If The Thickness of the base layer provided in the design permits,

➤The sub-base layer shall have two sub-layers.⇩
➤Drainage layer and the filter layer.
➤The upper layer of the sub-base functions as a drainage layer to drain away the that enters through surface cracks.
➤The lower layer of the base should function as a filter/separation layer to prevent intrusion of sub grade soil into the pavements.
GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
permeability testing of GSB

        If the thickness of the granular sub-base layer is less than or equal to 200 mm.

➤Both drainage and filter layers can not be provided separately ( considering the minimum thickness requirements as per 7.2.2).
➤ For such cases, a single drainage-cum-filter layer with GSB gradation Ⅴ or Ⅵ of MoRTH specification may be provided.


MATERIALS REQUIREMENTS For GRANULAR SUB BASE:⇨

➤Natural sand,
➤Crushed gravel,
➤Crushed stone,
➤Crushed slag,
➤Brick metal,kankar and crushed concrete is permitted in the lower sub-base,
➤Shall be free from organic or other deleterious constituents,
➤Shall satisfy the grading requirements as is explained below,
➤shall satisfy the physical requirements as it is explained below,

GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
materials required for GSB
GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
grading requirements
GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
physical requirements
Is code for a granular sub-base?
What is the Type 1 granular sub-base?
What is the granular subbase used for
What is a granular base course
What is the size of GSB


GRANULAR SUB BASE CONSTRUCTION OPERATION

TOE LINE FIXING for GRANULAR SUB BASE:➩

➤The Toe line/fixing of pegs to mark the limits of the Granular sub-base shall be done before the commencement of work.
➤The width of pavements for the toe line shall be calculated by referring to the drawing with due consideration to formation width plus the offsets and slopes of different layers’ depth the current layer from the formation road level( FRL).

GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
grading and rolling of GSB


HAULING AND DUMPING of GRANULAR SUB BASE Material:➯

➤The Required Quantity of GSB shall be Calculated and informed to the GSB Dumping Supervisor or Staff at the site,
➤Dumping Patterns Such as to ensure uniform Spread shall be determined and explained to the dumping supervisor or staff,
➤The materials for GSB shall be hauled to by tippers and dumped on the bed in a predetermined pattern,

GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
GSB Material Quantity Calculation
How is base course aggregate calculated
What is base course material
What is GSB material


GRANULAR SUB BASE CONSTRUCTION OPERATION

SPREADING AND GRADING of GRANULAR SUB BASE:➯

➤The materials shall be up to the required thickness,
➤Control pegs at every 10 meters along the centre line shall be fixed on both sides of the bed in such a manner That they are not disturbed by the movements of the grader,
➤Required level shall be marked on the pegs with suitable vertical offsets,
➤After rough initial spreading, a cotton/nylon string line(line dori) shall be held at the marks on the control pegs on both sides,
➤ The height of the String line from the bed top is measured at fixed horizontal offsets from the centre line,
➤The grader operator shall be directed according to the measurement in the above step to cut and fill material at every point,
➤Each grader run shall overlap by at least 1/3rd of the bled length,
➤Most important if any suggestion is observed, instruct the operator to correct the same while grading,


WATERING:➱

➤The moisture content shall be checked for OMC and if it is less than required water may be added by sprinkling and if it is more than required, shall be allowed to dry by exposure to the sun,
➤The moisture content shall be adjusted with allowance for evaporation losses in a manner to achieve 1 % above to 2 % below OMC During compaction,


COMPACTING:➱

➤Before the commencement of compaction and while spreading the GSB all the oversize materials available more than 2/3rd the thickness of the layer shall be removed manually,
➤The compaction shall be done mechanically using vibratory rollers of 80 to 100 KN static weight for the entire width of the pavement,
➤The rolling shall commence from the lower edge and proceed towards the upper edge, each pass of the roller shall overlap 1/3rd of the proceeding pass,
➤During the compaction, any low spots shall be filled with the material of the same properties and high spots shall be excavated and removed manually,
➤ The number of passes shall be decided beforehand by conducting trial,
➤Each layer shall be tested by sand replacement  method,


RECTIFICATION of GRANULAR SUB BASE:➱

➤If The surface is higher than the required level the defective area shall be trimmed off and compacted,
➤If the surface is lower than the required level the defective area shall be sacrificed, fresh material shall be placed and compacted,


BUMPING in GRANULAR SUB BASE:➱

➤If The surface is exhibiting bumping then the material in the defective area shall be removed to full depth and fresh material will be placed and compacted,


SEGREGATION in GRANULAR SUB BASE:➱

➤If segregation is observed then the material from the defective area shall be removed to full depth and either made good and replaced or replaced by fresh material,

GRANULAR SUB BASE CONSTRUCTION - GSB CONSTRUCTION
GSB Construction



QUALITY CONTROL TEST AND THEIR FREQUENCY

➤Gradation at a frequency of 1 test for every 200 cum,
➤Moisture content test as per IS 2720 Part-2 at a frequency of 1 test for every 250 cum at the time of spreading and rolling,
➤MDD and OMC  As per IS 2720 Part-8 at a frequency of 2 test per 3000 cum,
➤Laboratory determination of CBR as per IS 2720 Part-16 as required,
➤Atterberg’s limits at a frequency of 1 test per 200 cum,
➤Field Density test as per IS 2720 Part-28 at a frequency a set of test for every 1000 sqm to a minimum of 6 tests up to 3000 sqm, if nuclear density meter is used the frequency shall be doubled,


PROBLEMS AND REMEDIES IN GRANULAR SUB BASE CONSTRUCTION


PROBLEMS REMEDIES
➤ GSB bed compaction less than required

➤Variation in surface level

➤Over burden materials mixed during preparation of GSB material,

➤Approved GSB bed

➤GSB Material Dumped Over moist or Wet Surface

➤Required Compaction should not be less than 98 %,
poor Compaction may lead to settlement
➤surface level tolerance limits:➯
for Sub grade:- +/- 20 mm,
for GSB        :- +/- 10 mm,
The Surface level shall be maintained within the tolerance limits else may impact of required thickness of next layer,
Rework may occur due to unacceptable tolerance,
➤Gradation:➯ specified gradation as per approved design
Liquid limit and Plasticity Index:➯ Max 25 And max. 6,
In such case, specified gradation and plasticity index limit shall be ensured before loading the GSB materials or at least before spreading.
Chances of Impact on the drainage properties,
➤At actual completely disturbed bed due to the following reasons,
➯Poorly Graded ⟶ Leads To Segregation,
➯Poor Workmanship⟶after final grading it would have rectified,
➯Poor Quality Control⟶before testing it would have suggested to concerned site Engineer to rectify the bed which leads poor compaction and segregation,
100 % Rework Required
➤Moisture Content ⟶OMC +1% and OMC -2%
➱The bed Should Have moisture Content as per requirement before proceeding for the next layer,
➱Rework may occur due to improper supervision
➱settlement of successive layer

Click here for More Working Procedures and Engineering jobs



Test Of Cement – Consistency Test

Test Of Cement – Consistency Test

Test Of Cement – Consistency Test

Test Of Cement - Consistency Test
Test Of Cement – Consistency Test Apparatus


Purpose Determination Of Consistency For Cement

The test Of Cement – Consistency Test Is Done To Find Out The Consistency Of Cement Which Permits The Vicat apparatus Plunger To Penetrate to a point 5 to 7 mm from the bottom of the Vicat mould when tested. The procedure to determine the quantity of water required to produce a cement paste of standard consistency is Explained In the Following Steps.


Reference Code For Determination Of Consistency Of Cement


Determination Of Consistency Of Cement Is Done According To IS Code 4031 (Part 4).


Required Apparatus For Determination Of Consistency Test



1- Vicat Apparatus With Mould


The vicat apparatus consists of a frame having a movable rod with a cap at one end and at the other end any one of the following attachment, which are interchangeable.
Test Of Cement - Consistency Test
Test Of Cement – Consistency Test apparatus



2- Needles


There Two Types Of Needle Are Required For First For Initial Setting Time And Second For Final Setting Time,

For Initial Setting Time- The needle is having a cross sectional area of 1mm2. The end of the needle is flat.

For Final Setting Time- The needle is circular having a cross sectional area of 1mm2. The needle is fitted with a metal attachment. The end of the needle projects beyond the cutting edge of the hollowed out metal attachment.


3- Balance


Electric Or Any Other Balance Is Required With Highly Precision To Measure The Weight Of Cement,
Test Of Cement - Consistency Test
Electric Balance


4- Plunger for Standard Consistency Test


It is made of polished brass 10 ± 0.05mm in diameter with a projection at the upper end for insertion into the movable rod. The lower end is flat.


5- Graduated Scale


Graduated scale is 40mm in length and the smallest division of scale is 1mm.


6- Vicat Mould


The vicat mould is in the foam of a frustum of a cone having an internal diameter of 60+/- 0.5 mm at the top, 70 +/- 0.5 mm at the bottom and height 40 +/_ 0.5 mm.




The split type vicat mould is used as an alternative to single mould. This mould consist of a split ring having an internal diameter 80+/- 0.1mm and a height 40+/_0.5mm. A non-porous base plate is provided. The split mould is provided with a suitable clamping ring.



7- Standard Weights


8- Gauging Trowel



9- Non Porous plate



Detailed Standard Operating Procedure (Test Of Cement – Consistency Test)





>   Take 500 gms Of Cement.>   Add 24 % Water Into Cement.>   The Paste Must Be Prepared In A Standard Manner And Filled Into Vicat Mould Within 3 To 5 Minutes.>   After Filling The mould Shake The Mould To Expel Air.
>   A standard Plunger is Brought Down To Touch The Surface of the Paste In The test Block And Quickly Released Allowing it To Sink Into Paste By It’s Own Weight.
>   Take The Reading And Note Down It.
>   Conduct The Second Trial With % Of Water At 25 And Take The Reading
>   Conduct Similar Trials With Higher W/C Ratio Till Plunger Penetrates For A Depth Of 33 to 35 mm From The Top.
>   The Percentage Of Water At Which Penetration 33 to 35 mm From To Top Or 5 to 7 mm From Bottom Is A standard Consistency.

Click Here For Updates on Current Engineering Jobs


Click Here For Other Government Jobs Information










WET MIX MACADAM CONSTRUCTION-WMM CONSTRUCTION

Wet Mix Macadam (WMM)

WET MIX MACADAM CONSTRUCTION-WMM CONSTRUCTION


WET MIX MACADAM CONSTRUCTION-WMM CONSTRUCTION
WET MIX MACADAM CONSTRUCTION


WET MIX MACADAM CONSTRUCTION

WET MIX MACADAM – INTRODUCTION

Wet Mix Macadam (WMM) Consist Of Laying And Compacting Clean, Crushed Graded
Aggregate Granular Material, Premixed With Water To a dense mass on Prepared
Sub Grade/Subbase/Base,



What is wet mix macadam?
What is full form of WMM?

FUNCTIONS OF WET MIX MACADAM (WMM)

It
Acts As A Binding Layer Between the Granular Sub Base ( GSB) And The Bituminous
Layer, Provides Structural Support to The Pavement And Helps Dispersing Traffic
Loads To The Layers Below,


It
Is An Improvement Over the Conventional Water Bound Macadam (WBM) Layer Because It
Has A Superior Gradation Of Aggregates, a Faster Rate Of Construction, Less
Consumption Of Water, High Standard Of Densification And Higher Standard of
Quality Achievable,



What is difference between WMM and WBM?
Why WMM is used?



MATERIAL REQUIREMENTS FOR WET MIX MACADAM (WMM)

➤Crushed Stone,
➤If Crushed Gravel/Shingle Is Used Not Less Than 90 % of Its Weight Retained on 4.75 mm Sieve Shall Have At Least Two Fractured Faces,
➤Binders Such As Lime Stone Dust, Kankar Dust,
➤Screeners Such As Moorum, Crushed Over Burnt Bricks etc,
➤Shall Satisfy the grading Requirements as will be explained Shortly Please Continue to Read,
➤Shall Satisfy the physical Requirements as will be taken up Shortly Please Continue to Read,

GRADING REQUIREMENTS OF MATERIALS( in image below)


WET MIX MACADAM CONSTRUCTION MATERIALS
wet mix macadam aggregates

PHYSICAL REQUIREMENTS OF MATERIALS( in image below)

WET MIX MACADAM CONSTRUCTION

WET MIX MACADAM CONSTRUCTION
WET MIX MACADAM MATERIALS PHYSICAL REQUIREMENTS

MACHINERY REQUIREMENTS FOR WMM CONSTRUCTION

Following Machines are Required For Wet Mix Macadam Construction


WET MIX MACADAM CONSTRUCTION-WMM CONSTRUCTION
Machines for WMM Construction


CONSTRUCTION OPERATION AT WET MIX MACADAM PLANT

MIXING OF WMM-

➤The Coarse Aggregates, Fine Aggregates And Water Shall be Mixed In The Mixing Plant, Which Shall Have a mill of Suitable Capacity For Mixing,

➤The Plant Shall Have Different bin feeders for Different fractions Of Aggregates, Required to Arrive at the Required Gradation,

➤ A controlled water addition Mechanism shall be present to give a continuous flow of mixed material that suits pavement requirements at the site,

➤The individual fraction shall be loaded to the bins of the mixing plant by front-end wheel loader tippers from the stockyard,

➤Care shall be taken at the stockyard and at the bin feeders to ensure that the aggregate should not be contaminated or mixed with other fractions,

➤The aggregate for the bottom 100 mm thick of the stockpile shall not be fed in the plant bin,
WET MIX MACADAM CONSTRUCTION-WMM CONSTRUCTION
WMM PLANT

What is wet mix plant?

How is Wmm prepared?
What is WBM?
What is water bound macadam?


CONSTRUCTION OPERATION OF WMM WITH GRADER

➤The Toe line/fixing of pegs to mark the limits of the WMM level shall be done before the commencement of work,

➤The Width of Pavements for the Toe line shall be calculated by referring drawing with due consideration to formation width plus the offsets and slopes of different layers’ depth of the current layer from the formation road level (FRL),

What is the WMM layer?

HAULING AND DUMPING-

➤The Required Quantity Of Wet Mix Macadam(WMM) Shall Be Calculated and Informed To WMM Plant Engineer Of Staff Whoever is taking care of Production,

➤Dumping Pattern Such as to ensure uniform spread, shall be determined and explained to the person who is taking care of dumping at the site,

➤The Material for WMM shall be hauled to the site by tippers and dumped on the bed in a predetermined pattern,

SPREADING AND GRADING-

➤The Materials shall be mechanically (grader etc.) spread in uniform layers such that compacted thickness not exceeding 200 mm or any other specified with due considerations to the loose thickness (Compaction Factor) of WMM,

➤Control pegs at every 10 m long C/L shall be fixed on both sides of the bed in such a manner that they are not disturbed by grader movement,

➤Required Levels shall be marked on the pegs with suitable vertical offsets,

➤After rough initial spreading, a cotton/nylon string (line door) shall be held at marks on the control pegs at both sides,

WET MIX MACADAM CONSTRUCTION
WMM level fixing


WET MIX MACADAM CONSTRUCTION
WMM Spreading And leveling with grader

CONSTRUCTION OPERATION OF WET MIX MACADAM WITH PAVER

WET MIX MACADAM CONSTRUCTION-WMM CONSTRUCTION
WMM Laying with Paver

SPREADING/LAYING WITH PAVER –

➤Immediately after mixing WMM shall be transported to the laying site by tippers and shall be spread uniformly and evenly upon the prepared first layer of WMM or GSB layer with the help of a paver finisher,

➤However at the time of spreading the surface shall be checked for grade, camber and thickness with templates and high or low spots are to be rectified by removing or adding fresh material of the same properties,


JOINT PREPARATION-

➤The work shall be planned in a manner to reduce the number of joints to the minimum. A full-width paver shall be used, if possible, to avoid longitudinal joints,


LONGITUDINAL JOINT-

➤Rolling Shall be done on a strip of approximately 150 mm to 200 mm width from the edge on which the joint is expected to come,

➤This strip shall be rolled along with the edge of the next paver pass,

➤Rolling shall be done in such a manner that the roller drum moves on both the previous and the new surface,

➤The evenness of the joint shall be checked by a straight edge and rectification, if any shall be done immediately,


TRANSVERSE JOINT-

➤A straight edge shall be kept over the transverse edge of the previous work in such a manner that half of the straight edge is on the old surface and another half hangs towards the side where new work has to be carried out,

➤Marks shall be given on the points from where the surface level has started coming down,

➤The old surface shall be cut from the points marked above and removed. the cut material can be reused,

➤After the paver has passed over the joint the new surface near the joint shall be trimmed and shaped slightly as required,

➤Roller shall transversely run over the joint in such a manner that the roller drum moves on both the previous and new surface,

➤ The evenness of the joint shall be checked by a straight edge and rectification, if any shall be done immediately,

WET MIX MACADAM CONSTRUCTION-WMM CONSTRUCTION
transverse joint WMM Laying With Paver

QUALITY CONTROL TESTS AND THEIR FREQUENCY

➤Gradation at a frequency of  test for every 100 cum,

➤Atterberg berg limits at a frequency of  test for every 100 cum,

➤MDD and OMC As per IS 2720 Part-8 at 1 test for Source,

➤Combined Flakiness and Elongation index 1 test for every 200 cum,

➤Aggregate impact value At a frequency of 1 test for every 200 cum,

➤Water absorption at a frequency of 1 test for source,

➤Density of Compacted layer at 1 test(6 pits)/500 sqm and 1 pit for an additional 50 sqm or less,

➤ Top-level checking for given stretch,


PROBLEMS IN THE CONSTRUCTION OF WMM LAYER AND REMEDIES TAKEN

PROBLEMS REMEDIES
➤Availability of WMM plant in good Condition,
➤Mix gradation

➤Thickness and levels of the layers

➤Compaction and Workmanship

➤Confinement

➤Segregation of the mix

➤Plant should be in good condition, with regular maintenance,
➤Ensure gradation of mix before dispatching the mix,
➤Ensure The proper level of GSB before laying of WMM,
➤Ensure 98% Compaction and Good Workmanship,
➤Ensure Laying of Adjoining shoulders along With WMM,
➤Inform the Immediately if mix is not proper and rectify the segregation at the site,




Click here for more Other Updates and work procedures
Click here for engineering jobs







EHS Job Opportunities with L&T

Job Opportunities with L&T for EHS Professionals in High-Speed Rail and Metro Projects

https://www.engineeratsite.com/

Are you an experienced EHS (Environment, Health, and Safety) professional looking for a new challenge in the infrastructure sector? L&T Heavy Civil Infrastructure IC is offering exciting career opportunities for EHS experts to join our team on two large-scale projects: the MAHSR C3 High-Speed Rail Project from Thane (Maharashtra) to Vapi (Gujarat), and the CMRL Metro Project in Chennai. This is your chance to significantly impact two of India’s most prominent rail infrastructure projects. Read on to learn more about the available roles and how you can apply.

Open Positions for EHS Professionals

1) Manager / Senior Manager –  EHS (10 Positions)Location: MAHSR C3 Project (Thane to Vapi) and CMRL Metro Project (Chennai)
Number of Openings: 10
Experience: Minimum 10+ years overall, with at least 3-5 years of experience in Elevated Metro or Railway projects.
Educational Requirements:B.Tech Engineering (Full Time)
Certification in Safety (1-year course from a recognized college/university)
2) Senior Engineer / Assistant Manager – EHS (15 Positions)Location: MAHSR C3 Project (Thane to Vapi) and CMRL Metro Project (Chennai)
Number of Openings: 15
Experience: 4-10 years overall, with 1-2 years of experience in Elevated Metro or Railway projects.
Educational Requirements: B.Tech Engineering (Full Time)
Certification in Safety (1-year course from a recognized college/university)
Why Join L&T Heavy Civil Infrastructure IC?L&T is a globally recognized infrastructure development leader with a rich history of delivering successful large-scale projects. As part of the High-Speed Rail and Metro development teams, you will contribute to shaping India’s transportation future. Joining our EHS department offers you the chance to work on high-profile projects, develop your skills in a fast-paced, technical environment, and grow your career in one of the most vital sectors of civil engineering.

Key Responsibilities for EHS RolesEnsuring compliance with safety regulations in all phases of project construction.
Conducting safety audits, risk assessments, and implementing corrective actions.
Developing and maintaining EHS policies and procedures specific to elevated metro and railway projects.
Training workers and supervisors on safety standards and best practices.
Overseeing accident investigations and implementing preventive measures.By joining our MAHSR C3 Project or CMRL Project, you will be at the forefront of pioneering new safety practices for large-scale infrastructure projects.
Eligibility and Skills Required

1. Experience in Metro or Railway Projects

Experience in elevated metro or railway projects is crucial for these roles, as these sectors come with their own unique set of safety challenges. Candidates should have experience with high-speed or metro rail projects, ensuring a deep understanding of the complexities involved in these large-scale, technically demanding ventures.

2. Educational Qualifications

A B.Tech in Engineering is required for both positions, combined with a safety certification course from a recognized institution. These educational credentials ensure that you are equipped with the technical know-how to oversee safety protocols and lead your team effectively.
3. Strong Communication and Leadership Skills

Both roles require excellent communication skills, as you will be coordinating with various teams and stakeholders. For managerial positions, leadership experience is critical, as you will oversee EHS operations and ensure that safety standards are adhered to at every level.

How to Apply

Interested candidates are encouraged to apply by sending their resumes to justin.r@lntecc.com. When applying, ensure that the subject line reads: “EHS – MAHSR C3 Project” for positions related to the MAHSR High-Speed Rail Project.
“EHS – CMRL” for positions related to the CMRL Metro Project.

Make sure to highlight your relevant experience, certifications, and any major projects you’ve worked on in your resume to stand out.
Project Locations and Work Environment
MAHSR C3 Project (Thane to Vapi)

The MAHSR C3 is a section of the Mumbai-Ahmedabad High-Speed Rail project, India’s first bullet train project. This project involves complex engineering and cutting-edge technology, offering a dynamic environment for EHS professionals to work on one of the most prestigious rail projects in the country.

CMRL Project (Chennai)

The CMRL Metro Project in Chennai is a critical urban infrastructure project, aimed at enhancing public transportation in one of India’s largest cities. Working on this project, you will play a vital role in maintaining high safety standards in a fast-paced, urban construction environment.

Growth Opportunities at L&T

L&T is known for offering vast opportunities for career progression. By joining our team, you will not only gain experience in large-scale infrastructure projects but also have access to professional development resources and training programs. Whether you are starting in a senior engineering role or as a manager, L&T provides avenues for growth that align with your career aspirations.
Why EHS Roles are Crucial in Metro and High-Speed Rail Projects

Metro and high-speed rail projects involve extensive civil engineering work, often conducted in densely populated or heavily trafficked areas. These projects pose significant safety risks due to the complexity of elevated structures and the use of heavy machinery. EHS professionals ensure that all safety protocols are met, protecting both workers and the public.

Benefits of Working with L&T

L&T is committed to the well-being of its employees, offering a range of benefits including: Competitive salaries
Health insurance plans
Retirement benefits
Opportunities for professional development
A collaborative work environment that encourages innovation and teamwork.
Meta Information for Search Engines

Meta Title: EHS Job Openings for High-Speed Rail and Metro Projects | L&T Heavy Civil Infrastructure
Meta Description: Exciting EHS career opportunities at L&T Heavy Civil Infra IC! Apply for Manager, Sr. Engineer, and Assistant Manager roles on the MAHSR and CMRL projects.
Meta Keywords: EHS jobs, Metro project jobs, High-Speed Rail jobs, L&T Heavy Civil Infra, MAHSR project, CMRL project, EHS manager jobs, Railway project EHS jobs, Infrastructure safety jobs
Conclusion

If you are passionate about ensuring safety in large-scale infrastructure projects, these EHS roles with L&T Heavy Civil Infrastructure IC offer a golden opportunity. With the MAHSR and CMRL projects representing some of the most significant developments in India’s rail sector, joining these teams will allow you to work on iconic projects while growing your career in EHS. Don’t miss out on the chance to be a part of something extraordinary—apply today!

FAQs

1. What is the application deadline for these EHS roles?


There is no specified deadline, but it’s recommended to apply as soon as possible, as positions may fill quickly.

2. Can candidates from other industries apply for these positions?

While experience in Elevated Metro or Railway projects is preferred, candidates with strong safety experience in other large-scale infrastructure projects may also be considered.3. Are there relocation benefits for candidates applying for these roles?

Yes, L&T provides relocation benefits for candidates who are selected for positions that require them to move.4. What is the work environment like on the MAHSR and CMRL projects?

The work environment is fast-paced, collaborative, and technical. Safety is a top priority, and EHS professionals will work closely with construction teams to ensure all safety protocols are followed.

5. How long will the MAHSR and CMRL projects run?
Both projects are multi-year ventures, offering long-term opportunities for career growth and professional development.
For more Updates Please Click here

Construction Safety Gear

Construction Safety Gear

Key Takeaways Construction Safety Gear

Construction Safety Gear mirrors the many hazards present in traditional work settings such as falling objects or hazardous chemicals.

https://amzn.to/4eNFQUd

The importance of personal protective equipment (PPE)

Proper selection and maintenance of safety equipment is key to keeping a safe workplace that meets OSHA standards.

The importance of safety gear and legal requirements also helps employees to make better decisions.

Companies seek to remain competitive, so updating their safety gear to the most current level of protection and practices keeps everyone safe… and working.

Construction Safety Gear Saves Lives!

Understanding the Risks

Workspaces are dangerous places The hazards of welding are numerous and can injure workers. This creates risks like falling objects, electrical risks and dangerous substances. Finally, do not overlook the value of safety gear to prevent harm among all workers. The Occupational Safety and Health Administration (OSHA) standards require this as well. Realizing the Hazards Construction websites can always be dangerous. Some of that include: Object falling tools, materials or debris from high places Dangerous currents live wires and broken equipment Exposure to hazardous substances asbestos silica powder dangerous chemical Slip trip fall on uneven surfaces spills Heavy machinery vehicles accident.

Legal Requirements

Fall protection in general is regulated per the guidelines of Occupational Safety and Health Administration (OSHA) which has a list of rules for diver safety gear. Workers have the right to receive protective equipment and employers must ensure it is worn correctly. Non-compliance with OSHA sometimes carry severe punishments like hefty fines and criminal charges. Construction companies save money on damaged goods the their workers life by following the law and making sure they are safe. Workplace safety is not optional — it’s the law and an ethical responsibility. Buying better construction safety gear is a small cost if it assures that workers will be save! ConstructionSafety Gear Basics

Construction sites can be dangerous places. But, with the right safety gear, workers can stay safe. We’ll look at the key safety equipment every worker needs. This includes hard hats, safety glasses, work boots, and more.

Hard Hats: Head Protection

Construction workers must have hard hats. They prevent injuries from falling objects and impacts to the head. Ensure your hard hat has a tough shell, adjustable straps and chin strap for the right fit.

Work Boots: Foot and Ankle Protection

Dust and debris can scratch your eyes, in construction areas that are so dustycluttered. Safety glasses with side shields or goggles to protect your eyes. Opt for goggles having side shields as it will act like barrier fencing.

High-Visibility Clothing: Increased Visibility

Reflective clothing: Wearing high-visibility reflective vests and reflecting jackets helps a lot. This is significant in busy work places. It reduces the chances of accidents by making you noticeable to others.

Fall Protection Equipment: Safeguarding against Heights

Fall protection gear is the most critical part of height for workers The correct reference includes harnesses, lanyards and anchorage points. These can help to prevent the falls or reduce, if it occurs.

Construction Safety Gear

Hand Protection: Guarding Against Cuts

Head: Since head is property in construction, hence it needs to be protected. Another Safety Basic — Construction work is dangerous, and workers need protection from falling debris and objects flying about. One of the most critical ways to provide that sort of safety for site construction crews is a hard hat as in worn by Reds’ pitcher Luis Castillo here early this spring in Goodyear AZ / Image: Mark Sheldon via Twitter These helmets strategically give on impact to save the head from any blows. Marketplace helmets come having suspension systems, and ventilation parcels etc. This will improve comfort and reduce fatigue. For this reason you should ensure that the hard hat fits and meets ANSI Z89. The technology complies with Tier 1 standards in certificate renewal practices that maximise security.

Safety Gear Purpose Key Features
Hard Hats Head protection against falling objects, impacts, and overhead hazards Sturdy shell, adjustable suspension system, chin strap
Safety Glasses Eye and face protection from debris, dust, and flying particles Impact-resistant lenses, side shields
Work Boots Foot and ankle protection against heavy objects, sharp materials, and slippery surfaces Steel toe, slip-resistant sole, ankle support
High-Visibility Clothing Increased visibility to heavy machinery operators and other workers Reflective vests or jackets
Fall Protection Equipment Safeguarding against falls from heights Harnesses, lanyards, anchorage points
Hand Protection Protection against cuts, abrasions, and other hand injuries Durable work gloves

Construction Safety Gear

Head Protection

Head: as it plays a vital role in construction so needs to be protected. One of the most important items required for construction is a hard hat to protect workers from falling debris and other objects. These helmets are designed to absorb impact, providing protection for your head. Helmets available in the market have suspension systems, and ventilation etc. These improve comfort and will keep fatigue from setting in. Because of this, you should be sure your hard hat fits and complies with ANSI Z89. 1 standards for the best protection.

Eye and Face Protection

Why Do Your Eyes And Face Need Protection? Safety glasses, face shields or welding helmets are all obligatory items. Goggles protect the eyes from debris while face shields cover your whole face. Welding helmets are important for welding. These are popular because with the help of auto-darkening filters they can fit shades correctly and give you practicality in vision as well providing protection. Construction worker with yellow hard hat protecting Personal Protective Equipment in work at Construction site industry under construction cranes background, blue sky building process concepturi One of the most important accessories available for ensuring your safety while working on construction sites is a hard hat and how to choose the safe impact protection, face shields, goggles, and welding helmets. Also assures that workers remain safe from hazards at construction sites.

Safety Gear Key Features Protection Provided
Hard Hats Impact-resistant shell, suspension system, ventilation Head protection against falling objects and impact
Safety Glasses Impact-resistant lenses, side shields Eye protection from debris and flying objects
Face Shields Clear, transparent polycarbonate panel Face protection from splashes, sparks, and other hazards
Welding Helmets Auto-darkening filters, adjustable shade levels Eye and face protection during welding operations

Choosing the Right Gear for Your Job

Safety Equipment According to Occupation Personal protective equipment (PPE) — literally, learn which one you need for your role. Think about the dangers you are likely to experience and what will keep you safe and warm.

Assessing Job Hazards

First, do a hazard assessment. Look for risks like falling objects, sharp edges, or dangerous materials. Use OSHA guidelines and industry tips to spot these hazards.

Selecting Appropriate Personal Protective Gear

Identify the dangers, and then select your safety gear. Safety To be worn when necessary, such as hard hats, safety glasses or gloves. The important thing is to ensure your gear fits well, and possibly most importantly feels comfortable

Safety Gear Potential Hazards Addressed
Hard Hat Falling objects, bumps, and impact
Safety Glasses Flying debris, dust, and chemical splashes
Gloves Cuts, abrasions, and chemical exposure
High-Visibility Clothing Struck-by incidents, poor visibility
Steel-Toed Boots Falling objects, punctures, and slips

Proper Use and Maintenance of Safety Gear

Construction safety gear helps in protecting your skin and reduces the physical stress of work, so knowing proper use and upkeep is a must. It is also extremely critical to check the condition of your safety gear regularly and maintain them as per manufacturer guidelines. They help maintain your equipment as well as make sure that it is capable of meeting OSHA compliance.

To keep your safety gear in top condition, follow these tips:

Check your gear before each use. Look for wear, tear, or damage that could harm its protection.

Clean your equipment as the manufacturer instructions say. This keeps it in good shape and lasts longer.

Store your safety gear right when not using it. Keep it in a cool, dry spot, away from sunlight or harsh weather.

Swap out any worn or broken parts right away. Don’t risk using safety gear that’s not up to par.

As long as you follow manufacturer guidelines and OSHA regulations, focus on equipment care —your safety gear will continue to protect. The inspection and maintenances of regular safety gear are important steps that ensure a secure work place. The purpose of this article is to urge you to undoubtedly coddle that safety gear the next time your considering turning back for shore over a pair of flippers.

Conclusion

In the construction world, keeping workers safe is very Important. Using the right safety gear prevents injuries and meets OSHA rules. It’s important to use and care for safety equipment well.

Keeping workers safe is a must, not just a law. Knowing the risks and choosing the right safety gear shows a real care for workers. This makes the job safer and more productive for everyone.

Change is constant in construction. At the same time, new rules and safety gear are inevitable. When workers are healthy, they can perform better and focus on safety. This means the entire industry is much stronger and more trustworthy.

Frequently Asked Questions (FAQs)

What are the key types of construction safety gear?

Must have line crew safety gear: hard hat, shades and work boots. As well, visibility-clothing, fall-protection and hand protection are important.

Why do construction safety gear matters?

Construction sites are full of hazards, including falling debris and electrical dangers. Another example is safety gear to protect workers from any type of harm and keep them away.

What are the legal requirements for construction safety gear?

OSHA rulings dictate the types of safety equipment that must be used on a construction site. This gear must be supplied by employers and maintained in their good condition.

How do I choose the right safety gear for my job?

Safety equipment for YOUR job Knowing your work environment and the way that you feel comfortable in performing it. This making sure it is the right size and feels good.

How do I properly use and maintain my safety gear?

Safety gear is only effective if used and maintained properly. Scrub, rinse and store it appropriately. Abide by the manufacturer’s requirements and follow OSHA rules to maintain it properly.

What are some common construction site hazards that safety gear can protect against?

At construction sites one can fall victim to harmful accidents and the object might fell down or electrical hazard because of use it not properly. Wearing safety gear is a way to keep workers safe from these hazards. Prevents Injuries or Illness

How can construction safety gear help promote a culture of safety on the job site?

With quality safety gear and the proper knowledge of when to use them, your workplace becomes significantly safer. This creates a safety-first culture. By addressing risks, employees are kept safe, and this is proof of the team’s commitment to safety.

Construction Safety Gear

For More Updates Please Click here
To Purchase The PPE directly with Discounted Rates please click on The Below Links

QTM High Visibility Protective Safety Reflective Vest Belt Jacket

skipperseil is Hiring for Managing Director

skipperseil is Hiring for Managing Director

skipperseil is Hiring for Managing Director

Managing Director for Power Transformer Company

Are you an experienced leader with a passion for driving innovation in the power transformer industry? Do you thrive on steering organizations to new heights of success and efficiency?

Join us as the Managing Director and lead our dynamic team towards continued growth and excellence.

Key Responsibilities:Lead strategic planning and execution for overall company growth.
Oversee operations, ensuring alignment with market trends and industry standards.
Foster relationships with stakeholders, partners and clients.
Drive innovation and continuous improvement across all departments.
Ensure operational excellence in line with sustainability and energy efficiency goals.

Ideal Candidate:Proven leadership experience in the power transformer or electrical equipment industry.
Strong business acumen and ability to navigate complex market dynamics.
Exceptional decision-making and problem-solving skills.
Track record of driving growth and operational improvements.
Excellent communication and stakeholder management abilities.

Why Join Us:- Be part of a forward-thinking, sustainable energy company.

Competitive compensation package and benefits.
Opportunity to make a lasting impact in a fast-evolving industry.
Collaborative, innovative, and supportive team culture.

Ready to take the lead?

How To Apply- Contact on below mail id or Directly send your updated CV

chq@skipperseil.com | dipti.sharma@skipperseil.com

For More Job Updates Please click here

Urgent Hiring For Engineers

Urgent Hiring For Engineers:-

Urgent Hiring For Engineers

Project Manager – 01 No’s

Experience – 15 years of Residential Buildings
Location – Nagpur. MH.
Qualification – BE Civil/Diploma Civil
MEP Engineer – 01 No’s
Experience – 10 years of Residential Buildings
Location – Nagpur. MH.
Qualification – BE Civil/Diploma Civil
QA/QC Engineer – 02 No’s
Experience – 3 – 8 years of Residential Buildings
Location – Nagpur. MH.
Qualification – BE Civil/Diploma Civil
Junior & Senior Engineer – 15 No’s
Experience – 3 – 8 years of Mivan Residential Buildings
Location – Nagpur. MH.
Qualification – BE Civil/Diploma Civil
Interview Address – WTC, Tower 2, Kharadi, Pune.
Date & Time – 11 Oct – 10:00 am
CV Mail – admin@dhansmruti.com
For more Job Updates Click here

Hurricane Milton

Hurricane Milton

Hurricane Milton a powerful category 4 hurricane

Hurricane Milton
Image Source Google.com
Tampa preparing for a potential 2024 hurricane coming in full force Current projections show Hurricane Milton, a powerful category 4 hurricane spirling its way through the Gulf of Mexico has it on track to hit Florida’s west coast at some point by Wednesday. Though the storm is expected to slip slightly from its high-end Cat 3 status before it gets to Tampa, National Hurricane Center (NHC) forecasters say Milton still presents a severe menace for the area.

Milton and his Bargain

Currently, Hurricane Milton has a maximum sustained wind of 140-150 mph and is in the Category 4 region on the Saffir-Simpson Hurricane Wind ScaleBefore making landfall, the storm is likely to reach Category 5 strength in the Gulf of Mexico, but then quickly lose some power. But even as a Category 3 storm at landfall, the ability to cause damage is substantial.

TROPICAL DEPRESSION #14 As of Thursday morning, the storm is about 700 miles ESE of Cancun and has begun a “wobble”–a minor but crucial change in the path of the storm that can make or break where landfall occurs. A wobble north or south is the difference between catastrophic impacts and more tolerable conditions for Tampa. Experts are processing up-to-the-minute tracking data, cautioning that predictions so close to landfall were subject to error.

Storm Surge: Tampa’s Biggest Threat

Whether a hurricane makes landfall at a Category 3 or 5 likely will depend on if the storm is able to bombard bicoastal South Florida with bathwater-warm waters and trigger major convection over the eye (and not subject to wind shear). The Tampa Bay area, meanwhile, should remain focused on the storm surge threat from Hurricane Milton. If that’s what happens, the storm will send massive amounts of water — estimated at 6 feet in some parts — into Tampa Bay. In a worst case scenario the NHC are forecasting 8-12 feet of storm surge.

This magnitude of storm surge would result in catastrophic flooding for a large number of low-lying areas, especially those that are found the near coast. A great deal of homes, roads, and businesses must be covered on account if the waterfronts of Tampa Bay. Mandatory evacuations are already partly in place in the areas most at-risk to flooding.

Hurricane Warnings and Timegaps

Several regions in Florida and also Mexico have been put under hurricane warnings and watches, in accordance with the updated.

HURRICANE WARNING AREAS:

Celestun > Rio Lagartos, Mexico
Hurricane Watch Issued For
From Rio Lagartos to Cabo Catoche (Mexico)
South of Celestun (Mexico, to north of Campeche=temp)
Chokoloskee eastward to Suwanee River and Key West north through Tampa Bay
Dry Tortugas
Lake Okeechobee

A Storm Surge Watch is also in effect from Flamingo northward to the mouth of Forty Mile Bend on the Florida Gulf coast, from the Suwannee River to Anna Maria Island and including Tampa Bay. Life-threatening inundation, which is the rising of water over land, is expected. Residents should prepare for very rapid rises in water on a day like this.

Tropical Storm Warnings in effect for part of Mexico.

Evacuation Orders and Preparations

The governor of Florida declared a state of emergency for some counties, including those that line the Gulf Coast. Areas that are prone to flooding in Tampa, St. Petersburg, and Clearwater have been placed under voluntary evacuations. These zones are projected to experience the most surge as the storm comes closest to making landfall.

Residents are asked to —

Heed evacuation orders.
Gather supplies, including water, batteries and non-perishable food
Board up windows and brace doors in secure homes.
Stay out of high flood areas and other low-lying zones
The Role of Meteorologists in Crisis

WFLA meteorologists have been doing a wonderful job keeping Tampa Bay residents in the loop. They follow the strength, course and pace of the storm using refined meteorological models together with real-time satellite images. Local officials rely on that information to make life-and-death decisions, from declaring evacuations to closing schools and businesses.

In the world of hurricane forecasting, one of the most puzzling features to predict is the storm wobble. Even small displacements in the eye of a hurricane can result in hugely different areas of impact. Citizens of Tampa Bay are warned to pay attention to the storm’s path continuously updated on Wobble Tracker. A wobble of just 20 miles can shift the heaviest impacts from one city to another.

How to Stay Safe

If you live in the Tampa Bay area, this is your last-minute check-list. The following guidelines are necessary to keep you safe,

If Told to Leave, Get Out Now; Traffic can get clogged fast, and emergency services may be few and far between.

Prepare for Power Outages Charge your phones, put batteries together and FLASH LIGHTS FOREMOST. The power might not come on for days after the storm hits.

Prepare Your Supplies: The storm could mean supply chain disruptions for days. Among the things that you HAVE to have are water, non-perishable foods, medications and a 1st aid kit.

Keep Important Papers Dry: Place ID, insurance documents and other key papers in waterproof bags.

Long-Term Impact

The details of exactly where and when Milton will make landfall and the strength at which it will do so remain uncertain, but one thing is certain: The Tampa Bay area can not afford to be caught unprepared for the storm. They have not only forced evacuations of thousands ahead of damaging winds and flooding but are also expected to mean long-term disruptions in the weeks after, for which some states look ill-prepared. Roads can be blocked, and utility services can last 3 days. It could take a long time for floodwaters to recede, particularly as the storm churns onshore or if rainbands continue to drench areas after landfall.

The storm is a reminder of the potential threat to Florida with its entire coastline fronting on the Gulf Coast. Meteorologists stress that the best way for people to protect themselves is to remain aware and informed. Now every little thing that you do whether that would be evacuating early, securing your home or hoarding supplies to last you until it its safe to go outside can make a difference when the storm hits.

Keep up with the latest updates here, and to keep tabs on Hurricane Milton follow their live Wobble Tracker.

click here for more updates

Basics of Civil Engineering

Basics of Civil Engineering

What is Basic Civil Engineering

To Khow The Basics of Civil Engineering Please go Through The article Deeply, Civil Engineering is an expansive field that includes designing and building all infrastructure projects like bridges, dams, roads, tunnels, buildings, railroads, pipelines, etc. Aerospace Structure:- Civil engineers can do the aroma structure very nicely. Civil engineers, depending on the projects they work on as well as in the sense they wish to give to those projects, can specialize in a variety of subfields. These sub-fields lead to very diverse career options.

Basics of Civil Engineering

Other civil engineering subfields you will learn more about in college include structural engineering, geotechnical engineering, water resources engineering, and transportation engineering. The foundational classes are the same across all civil engineers in your earlier years, but you choose a series of electives that you specialize in and care about. Well, now we are going to take a look at each of these subfields in More Detail.

Structural Engineering

Structural engineering focuses on calculating and applying forces, strain, stability and all in a structured manner. These shapes can be as varied as a bridge or skyscraper to a spacecraft or an aircraft. Structural Engineer Structural engineers need to make sure that big heavy things do not fall over onto people’s heads.

Basics of Civil Engineering

The subfield is highly mathematical and physical. A class that civil engineering students almost all take is called statistics, which is where they learn how forces are balanced in systems not moving. For instance, to design where resistance is required in a bridge construction to hold it static, one needs to add all the force or torque so that the sum becomes 0 and the structure does not move.

To a structural guy, a very important class is concrete. Students in this class learn that concrete has low tensile strength — it does not perform well when forces are urging them to pull on each other — but that it is very good at absorbing compression. To address the deficiencies, rebar (or steel beams) is placed within the concrete to provide it with any tensile strength required to support structures. Students design rebar (steel reinforcing rods), cast concrete around them in moulds, and then test the beams when the concrete has hardened in the laboratory sense.

Structural Dynamics and Seismic Analysis are electives offered in terms of courses for structural engineering students. What other areas in a scenario will need to be made aware of the fact that dynamic analysis and Seismic analysis are interested in two different topics, structural dynamics pertains to moving systems while seismic is all about asking how a structure responds to an earthquake. Additionally, there are dedicated programs in bridge engineering and timber structure design.

Designing structures and understanding how forces act on them (computational analysis) are the processes involved in structural engineering wherein computer software is widely used. Most of the complex calculations are now done using software although hand readings are still required on occasion. It is to construct buildings and facilities that keep a person safe being used for lifeline facilities.

Geotechnical Engineering

Basics of Civil Engineering

Geotechnical engineering relates to earth materials such as rock and soil, and they tend to work more on the soil. Soil is nothing the way we think and talk will going to changeContrary to what it may appear, Soil forms a significant component for construction. Of course, the structural engineer can do everything right but if the geotech misses something then a structure will sink or lean due to unstable soil. The most common example is the Leaning Tower of Pisa that has actually influenced a structure with dirt problems.

Structural Engineers work on the foundation of structures to decide if they require Shallow or Deep Foundation based on Soil condition. Soil samples are subjected to a series of tests designed to categorize the soil as sand, gravel, or clay and determine how it reacts when it’s compressed (to investigate if the building will suffer from any foundation issues etc).

Students can do various types of tests like triaxial tests in college labs where they apply forces to a sample of soil to see how it will respond. Geotechnical engineers use this information in order to determine the shear strength of soil, which is how much weight that soil can hold up before it fails. A truck that pushes a cone into the ground is one of the common field tests like kellogs and sledge hammer in Medavail soil sciences with sensors measuring how much pressure the ground exerts can deduce whether there are peat stratas or not.

Water Resources Engineering

This discipline is known as water resources engineering, and its purpose is to develop ways of managing water to minimize the impact human activity has on local climates. Such type of work requires designing the systems of water treatment plants, dams, pipelines, canals and storm sewers. A large storm may have water resource engineers designing a system for infrastructure to route excess or yet unallocated water efficiently to the ocean or other drainage areas.

These engineers also get to work on canals (used for irrigation or transportation) and culverts (which let water pass under roads or other structures). Electives within this specialty can include coastal hydraulics (wave propagation, submerged pipelines) and open channel hydraulics (fluid flow in channels).

Transportation Engineering

Transportation engineers work to keep you and the things you need moving safely and efficiently. They plan streets, highways, railroads, and mass transit systems. Take the example of a new development such as building a stadium or grocery store, transportation engineers perform an evaluation on how much traffic is to be expected and accordingly plan for improvements which will help in accommodating this increased volume of traffic.

They also work on the geometrics of roads, like figuring out how curvy an off ramp should be or what a cross section for a freeway that can hold traffic. For example, they might use data from a set of similar locations to project what traffic will be like in the future and make adjustments such as establishing bus stops earlier or widening roads. In addition to designing new systems, transportation engineers often work to improve existing infrastructure by optimizing it (e.g. by timing traffic lights).

It is not as math heavy as structural or geotechnical engineering and typically entails data analysis. For roadway designs, AutoCAD and other software packages may be used by engineers to create and simulate traffic patterns based on proposed changes.

Conclusion of The Article

By being such a widespread and evolving industry, civil engineering provides several career paths to individuals. Structural engineers analyze and design the forces in structures, and geotechnical engineers examine soil to ensure that often huge foundations for these are stable. Efforts of water resources engineers in designing systems to minimize human water use, while Transportation engineers work towards optimizing the movement of goods and people

Civil engineering is more than just building — it’s problem-solving, using the basic principles and technology available to us today we strive to make our world a better place by improving the structures which shape our life.

For more Related Post Please Click Here

ISGEC Hiring Engineer/Sr. Engineer

ISGEC Hiring Engineer/Sr. Engineer

ISGEC IS HIRING FOR ENGINEER/SR. ENGINEERS MECHANICAL AND ELECTRICAL MAINTENANCE
ISGEC Hiring Engineer/Sr. Engineer

Requirements:-

Qualifications & Experience.

>Diploma in Mechanical or Electrical Engineering.

>10-15 years of experience in mechanical/electrical maintenance, especially with hydraulic and mechanical presses.

>Prior experience in the manufacturing industry, ideally in automobile or heavy machinery sectors, is preferred.

Candidates Must be from the Manufacturing Industry related to Automobile, and heavy machining, preferably related to mechanical and Hydraulic Pressess.
HOW TO APPLY –

Share your Updated resume at: monika.gupta@isgec.com

Visit the Official website click here- www.isgec.com

For More Updates Please Click here

Join the Free Telegram Channel For Regular Job Updates Further Click here

Eagle Infra India Limited- Urgent Opening

Eagle Infra India Limited- Urgent Opening

Eagle Infra India Limited-
Required Immediately for Eagle Infra India Limited at H.O., Mumbai: –


Mechanical Engineers – 3 Vacancies


Applications are invited from Mechanical Engineers (Degree / Diploma) having relevant experience of around 3 years and exposure to Documentation, Data Analysis/Verification, Reporting etc. in the Mechanical Field for Projects involving Roads, Metro, Water/STP, Mining, EV etc.

Please apply to: –
EAGLEINFRARECRUITER2024@GMAIL.COM
HR@EIIL.CO.IN
EAGLEHR99@GMAIL.COM

Note: A photo along with current/expected CTC details must be mentioned in the application.

For More Updates Please Click here

Join the Free Telegram Channel For Regular Job Updates Further Click here

Lakshmi Infrastructure & Developers India PVT. LDT- Urgent Opening – Sr. Highway Engineer

Lakshmi Infrastructure & Developers India PVT. LDT

Urgent Opening - Sr. Highway Engineer

Urgent Opening – Sr. Highway Engineer

Qualification:-

 B.Tech (Civil) with a minimum 6+ years experience required in NHAI works

Location: – Rajasthan

To Apply Click Here

For More Updates Please Click here

Join the Free Telegram Channel For Regular Job Updates Further Click here

H.G. Infra Engineering Limited- Urgent Hiring

H.G. Infra Engineering Limited- Urgent Hiring

Urgent Job Opening at HGIEL

H.G. Infra Engineering Limited- Urgent Hiring

Position:-

 Asst. Engineer / Engineer/Sr. Engineer Department: Highway/Structure

Project Location:-

 AP PKG 01 (Andhra Pradesh) Qualification: B.Tech (Civil) / Diploma (Civil) Experience: 3+ Years

Perks & Benefits: As per best industry norms:-

Interested candidates can send their updated CV

with the subject line: “Sr. Engineer / Engineer – Highway /Structure” to kankipati.anilkumar@hginfra.com

Highways | Railways | Metro | Renewables 0141-4106040 | Info@hginfra.com | www.hginfra.com

For More Updates Please Click here
Join the Free Telegram Channel For Regular Job Updates Further Click here

Home Constrution Cost Calculator

With The Help of a Home Construction Cost Calculator, The Cost is Calculated Considering the Current Market Prices of Materials, Labor, and other factors for the respective states and districts. The calculated cost is an approximate estimate, not the exact amount. For a proper estimate, you can contact us at engineeratsite123@gmail.com.

Home Construction Cost Calculator






Ganga Expressway

Ganga Expressway

Ganga Expressway:- Major Infrastructure Project Transforming Uttar Pradesh

Ganga Expressway, which is being Constructed In the state of Uttar Pradesh in India, connects Meerut District to Prayagraj District(old Name Allahabad), This Expressway is Going to Play a Crucial Role in the Development of Uttar Pradesh, it will reduce the Travel time Between Meeraut as well as Delhi to the eastern part of State (Prayagraj and Varanasi Further it is going to Connent to Ballia and Bihar Also). this will play a major role in the Development of Uttar Pradesh as well as India’s economy. by Reducing travel time, Generating Jobs, and enhancing infrastructural value for the state,

https://www.engineeratsite.com/
Ganga Expressway

here in this post, we are going to Explore the details of the Ganga Expressway, Its importance, and the Challenges and Impact the Future is expected to have on India.

Overview of the Ganga Expressway

The Ganga Expressway is a major infrastructure project started by the Uttar Pradesh government under the leadership of Chief Minister Yogi Adityanath.

Total Length- 594 Kilometer

Lanes- Six Lane (Expandable up to eight Lane)

Cost of Project – INR 36000 cr.

Expected to get in Operation – December 2024

The Ganga Expressway will start from Meerut in western Uttar Pradesh and extend to Prayagraj (old name Allahabad) in the east, Connecting 12 districts in the state. The names of Important Cities and District Hapur, Bulandshahr, Amroha, Badaun, Shahjahanpur, Hardoi, Unnao, Rae Bareli, Pratapgarh and Prayagraj. The project will provide high-speed road connectivity to these Districts and Regions,

https://www.engineeratsite.com/2024/09/Ganga-Expressway.html

Major Aspects and Key Features of the Ganga Expressway

The Ganga Expressway is set to Push the Development of the State to the next step: the Important Aspects of The Expressway are explained below-

Six-lane Access-Controlled:-

The expressway will have six lanes initially, which can be expanded to eight lanes in the future whenever required, The access-controlled design ensures limited entry and exit points, enhancing safety minimising risk and reducing travel time.

Length and Speed:-

with the proposed total length of 594 kilometres, the Ganga Expressway will be one of the longest expressways in the country. it Designed and Being Constructed for the Maximum Speed of 120 kilometres per hour,

Toll Collection:-

The Expressway will have a Toll system with Limited entry and exit points; the Toll System will help with Maintenance and Seamless Service of the Expressway in Future. Electronic Toll Collection System Will be Implemented.

Connectivity with Major Highways and Expressways:-

The Ganga Expressway will Connect Delhi. Meerut Expressway and Yamuna Expressway in the West and The Purvanchal Expressway in the East.

Eco-friendly Design:-

The Ganga Expressway is designed with sustainability in mind. Plans include tree plantations along the route, rainwater harvesting systems, and eco-friendly construction practices to minimize the environmental impact.

Airstrips for Emergency Use:-

Just Like other major expressways Agra-Luchnow Expressway, and Purvanchal Expressway, in the state, the Ganga Expressway will Have dedicated airstrips for emergency landing of military and civilian aircraft,


https://www.engineeratsite.com/2024/09/Ganga-Expressway.html


Significance of the Ganga Expressway

The Ganga Expressway has been very important for the Uttar Pradesh Government, A state with a population of more than 22 crore people. It has the potential to facilitate the more than 70 crore Population of the Country, Some Major Advantages that are Most likely to be Gained By This Much People in the Future.

Less Travel Time

Right Now travelling between cities in the western Part and eastern Part of UP Uttar Pradesh Take 11 to 13 hours, a significant amount of time due to road congestion, Poor road conditions, and longer routes. The Ganga Expressway will create a direct route that cuts down travel time by 5 to 7 hours. For Example, the distance between Meerut and Prayagraj, which currently takes around 10-12 hours by road, is expected to be reduced to just 6-7 hours.

Economic Growth

One of the Main Purposes of the Ganga Expressway is to Increase economic development in the state. By improving road connectivity, the expressway will facilitate faster movement of Vehicles, services, and people. This, in turn, will encourage trade and industrial development along the route, especially in districts that have historically been underdeveloped or lacked Major infrastructure.

The expressway will create a development corridor, where industries such as logistics, warehousing, manufacturing, and agriculture will Grow. New business opportunities will be created, and investments are expected to flow into sectors like real estate, hospitality, and retail. Furthermore, small and medium-sized enterprises, located in unreachable parts of the state will benefit from better market access.

Creation of Employment and entrepreneurship

Major infrastructure projects such as the Ganga Expressway create thousands of direct and indirect jobs for huge numbers of people. From construction workers and engineers to maintenance personnel and toll operators, the project is expected to generate employment opportunities at various levels. The industrial and commercial growth along the expressway will further contribute to Employment creation in the state.

Improved Agricultural Supply Chains

Uttar Pradesh is known for its fertile grounds and Huge agricultural Products, especially crops like wheat, rice, sugarcane, and vegetables. While due to poor road infrastructure often delays the transportation of Green goods, leading to post-harvest losses. The Ganga Expressway will significantly reduce the time taken for agricultural products to reach markets, both within the state and in neighbouring states like Delhi, Haryana, and Bihar. This will improve the supply chain, reduce wastage, and increase the economy of farmers.

Tourism

Uttar Pradesh is a state rich in cultural heritage, with iconic sites like the Taj Mahal in Agra, Varanasi, and Prayagraj, which hosts the Kumbh Mela, one of the largest religious gatherings in the world. The Ganga Expressway will provide faster and more efficient travel to these tourist destinations, promoting domestic and international tourism. The expressway will also pass close to religious and cultural Locations, making these sites more accessible to pilgrims and tourists,

Disaster and Emergencies time

The expressway will play a major role in improving disaster management and emergency response in the state. With airstrips along the expressway and its access-controlled Expressway, emergency vehicles can move quickly between cities. In times of floods, accidents, or other natural calamities, the Ganga Expressway will offer a faster and more reliable route for the movement of rescue teams, medical products and facilities,


https://www.engineeratsite.com/2024/09/Ganga-Expressway.html


Challenges Faced by the Ganga Expressway Project

after all, having many benefits, the Ganga Expressway project is not without challenges. Large infrastructure projects, Mainly those that come in more than hundreds of kilometres, often encounter obstacles in land acquisition, financing, and environmental clearances. The Uttar Pradesh government has been working diligently to minimise these problems, but a few challenges remain just like those mentioned below.

Land Acquisition: –

Acquiring land for such a Major infrastructural project is always challenging, especially in populated states like Uttar Pradesh. While compensation packages are being offered to Farmers and landowners, there have been Matter of protests and delays due to land acquisition disputes.

Environmental Concerns: –

Although the Ganga Expressway will be constructed parallel to the Ganga River for a large portion of its length, environmental activists have raised Voices about its potential impact on the Ganga and Other rivers’ ecosystems. The government has ensured that the expressway will be built with minimal environmental Adverse Impact, including measures for flood protection, wildlife conservation, and green construction practices.

Financing and Cost:-

Infrastructure projects of large quantities and amounts often face the risk of overcast and delays due to inflation, unexpected expenses, or resource unavailability. The Ganga Expressway, with an estimated cost of over Rs. 36,000 crore, is no exception. The government, however, is optimistic about securing the necessary funds through public-private partnerships (PPP) and loans from financial institutions.

The Future Impact of the Ganga Expressway

The Ganga Expressway is expected to become a game-changer for Uttar Pradesh. Not only it will improve transportation and connectivity across the state, but also it will lay the foundation for sustained economic growth and development. By connecting key industrial, agricultural, and cultural locations, the expressway will create a growth corridor that attracts investments, creates jobs, and boosts tourism.

In the long term, the Ganga Expressway will help Uttar Pradesh realize its potential as a leading contributor to India’s economy. The improved connectivity will also benefit neighbouring states and contribute to the overall development of the National Capital Region and eastern India.

For More Updates Please Click here

Estimation Software for Civil Engineering

Estimation Software for Civil Engineering



Estimation Software for Civil Engineering



In civil engineering, Accurate and precise estimation has a huge Role in the success of any project. From Planning to budgeting to scheduling and Execution, Proper cost estimation is Necessary and Economical for managing resources like manpower and machinery efficiently and Completing and delivering a project within the stipulated time. Old Conventional and Traditional methods of estimating and Costing are highly Dependent on Excel Sheets and spreadsheets, Manual or one-by-one calculations, and intuition—which can lead to costly errors and delays. This is Why estimation software for civil engineering is necessary for time management and work efficiency.



https://www.engineeratsite.com/
https://www.engineeratsite.com/





Estimation Software for Civil Engineering has Enhanced the Productivity and accuracy of the Infrastructure and other civil construction and civil engineering industries by mechanising the process of cost analysis and estimation, improving accuracy, and enhancing project management efficiency capacity as well. In This Post, We are Going to gain Deep Knowledge About the role of estimation software in civil engineering, its benefits, key features, and how it is Changing and Impacting the industry.



What is Estimation Software for Civil Engineering



Estimation software is a tool and platform in the form of Softcopy used by civil engineers, contractors, and project managers to calculate the costs of any construction project. These tools are used to calculate and estimate the cost and quantities of various activities of any project, like machinery, manpower, material and time, Just to find a detailed cost estimate. Estimation software can be different, from simple cost calculators and estimators to advanced platforms that Compile with other tools like project management systems, Building Information Modeling, and ERP software.

Civil engineering estimation software makes easier the process of creating estimates for large and complex projects by automating calculations, analyzing historical data, and adjusting for real-time market prices and Conditions.



Why is Estimation Software Necessary for Civil Engineers

Actual and Precise cost estimation is critical in civil engineering for Many reasons Few of which are described below:-



Budget Management:-

The main purpose of cost estimation is to make sure that the budget and cost of any project are within the limits and estimates. Inaccurate and rough estimations can lead to costs beyond limits, delays in project execution, and potential failures of the project.


Enhanced Decision Making:-

Estimation software gives ideas and a glimpse to Project managers and Engineers with the help of which they can make better and prompt decisions for Manpower, material, and Machinery Allocation, Procurement, and Scheduling of projects.

Risk Mitigation:


The risk is not estimated and Calculated precisely, and Unforeseen costs can derail a project in the sense of delays and overcosting, but with good estimation tools, civil engineers can anticipate potential risks and develop better plans to mitigate these risks.



Efficient Resource Allocation:-



Estimation software helps optimize the use of Manpower, materials, and machinery, ensuring that the project is going smoothly without unnecessary delays of work or waste.



Streamlining Collaboration:-



In large civil engineering Infrastructure and Construction projects, multiple stakeholders, architects, engineers, contractors, and clients need to be involved in the estimation process. Estimation software collaborates all by providing a centralized platform where everyone can access real-time data.

https://www.engineeratsite.com/
https://www.engineeratsite.com/





Key Features of Civil Engineering Estimation Software



The latest estimation software is designed and manufactured with features that make it indispensable in civil engineering. Some of the most important features include as below-



Material Cost Calculation



Estimating the cost of materials is a major part of any civil engineering project. Estimation software calculates the total cost of materials based on current market prices and quantities needed for the project. This ensures that there is enough material for the work before starting the execution work, and helps avoid excess wastage.



Labor Cost Estimation



Civil engineering projects require skilled and unskilled Manpower at project sites, and calculating Manpower costs is necessary for budgeting accuracy. Estimation software factors in the hours required, labour rates, and the number of workers to determine total labour costs.



Project Scheduling



The Completion of a civil engineering project depends on predefined estimates, time and schedule of different activities. Many estimation tools integrate scheduling features, allowing project managers to assign tasks, set Targets, and track project progress Accurately in a realistic way.



Integration with BIM



Building Information Modeling has become an important factor in current civil engineering projects. Some estimation software integrates with Building Information Modeling systems to enhance project visualization, helping civil engineers to create more Precise estimates by understanding the physical , Practical and functional standards and specifications of the project.



Automation



The meaning and purpose of Automation are to the process of measuring materials, Manpower, and other resources needed for a project. Estimation software automates this process, ensuring that every aspect of the project is considered in the cost estimation. This automation also reduces the time required to complete the estimation, speeding up project planning.



Historical Data and Analysis



Most of the estimation platforms can store and analyze historical project data as and whenever required. By comparing current projects’ Costs and estimates with past ones, civil engineers can identify trends, refine their cost estimates, and make more accurate predictions for the Projects coming in future.

Real-Time Market Price

Estimation software in any civil Engineering Project can connect to databases that provide real-time updates on the price of materials, Mapower, machinery and equipment. This feature of software helps civil engineers to create estimates that reflect current market conditions, ensuring the accuracy of their budgets.

Risk Management Tools



Many estimation software include risk analysis features that help to identify potential issues, such as budget overruns or delays of the project, based on previous projects and current project estimates. This allows civil engineers to develop contingency plans and adjust their estimates accordingly.



https://www.engineeratsite.com/
https://www.engineeratsite.com/





Advantages of Using Estimation Software in Civil Engineering



Using estimation software in civil engineering Projects Gives many benefits that ultimately improve the overall efficiency and accuracy of a project Cost, time and estimate or budget. These benefits are as below-



Enhanced Accuracy of the Project



Estimation software in Civil engineering might mitigate and eliminate the risk of human error, which is very common and usual in manual calculations. With automated cost calculations and Accurate data input, civil engineers can Believe that the estimates generated by the software are as accurate as possible.



Time Savings



Manually calculating costs and estimating is a time-consuming process, especially for large-scale civil engineering projects. Estimation software Accelerates the process by automating calculations, allowing engineers and project managers to focus on other critical activities.



Enhanced and Easy Collaboration



Many estimation tools and software are cloud-based, enabling multiple clients, and authorized individuals to access and work on the same estimate at a time. This is Easy collaboration between teams and ensures that everyone is on the same page throughout the project execution time.

Reduced Costs

Real and Accurate estimates can help to avoid unnecessary Expenditures and over-budget situations. By providing a clear understanding of costs and resource needs upfront, estimation software allows for better budget control and financial planning.

Compliance with Regulations

Many civil engineering projects have to follow local building codes, standards of practice, specifications and regulations. Estimation software often includes features that ensure compliance by integrating industry standards and guidelines into the estimation process.

Risk Mitigation



By providing a more accurate view of project cost estimates and potential risks, estimation software allows civil engineers to develop proactive solutions to challenges. This prevents unexpected mistakes and minimizes the probability of the budget being over-estimated or overrun.



Top Estimation Software for Civil Engineers



There are many popular estimation software and platforms used in civil engineering Nowadays, each offering unique features and advantages. Some of the top options are as below-



PlanSwift

PlanSwift is Majorly used in construction and civil engineering projects Estimating and costing. It offers tools for material estimation and costing, labour cost calculation, and seamless integration with other software. It is user-friendly, making it an option for both small and large projects.

ProEst



ProEst is a cloud-based estimation software and a platform designed for construction and civil engineering professionals. It includes features like material Estimates and Costing, cost estimation, and reporting. The cloud functionality feature of Proest allows users to access their estimates from anywhere, enhancing collaboration within the different integrated institutions and clients.



Sage Estimating

Sage Estimating is a very popular software platform that integrates with construction project management systems. It offers advanced features for material, labour, and equipment cost estimation, as well as a database of real-time pricing for materials comparing the current market.

Bluebeam Revu



Bluebeam Revu is primarily a PDF editing software, but it also offers powerful tools for estimation in civil engineering projects. Its markup and measurement tools are useful for creating precise estimates based on project drawings.



STACK



STACK is a cloud-based software specifically designed for construction Costing and estimation. It makes the process of calculating materials, labour, and equipment costs easy, and is useful for civil engineering projects involving large-scale infrastructure development.



Challenges of Using Estimation Software



After the estimation software has many advantages, it is not without its challenges. These challenges are as follows



Cost of Software and Platforms:-



Estimation software can be expensive, and the initial investment may be a barrier for smaller firms.

Learning and training of Software:-



Estimation software has been developed using high and modern technologies, it requires time and training for Users to fully utilize and learn its features.



Integration and Collaboration Issues-



Not all estimation software integrates easily with other tools, such as BIM or project management software, which can limit its usefulness.



Conclusion


Estimation software for civil engineering is Revolutionary in the Construction Field. It helps to find more accurate, efficient, and streamlined project planning, helping civil engineers avoid costly and estimation mistakes and meet project goals on time and within budget. As technology continues to advance, the role of estimation software will increase from time to time, making it an essential tool for civil engineers in the modern world. By adopting and Learning these platforms, civil engineers can ensure the success of their projects while promoting sustainability and innovation.



For More Updates Click here





Green Energy

Green Energy



Green Energy:- What is Green Energy?

Green energy, Which is also known as renewable or sustainable energy, refers to power generated from natural sources that are replenished constantly and do not produce harmful emissions and ingredients like toxic gases, air pollution etc. These sources Soursec of green energy include solar, wind, hydropower, geothermal, and biomass energy. The main potential of green energy stands in its ability to meet energy demands without the environmental degradation or Damages caused by traditional fossil fuels like coal, oil, and natural gas.

https://www.engineeratsite.com/
Green Energy System



Types of Green Energy:

Solar Energy

Solar power Produces energy from the sun’s rays using photovoltaic (PV) panels or solar thermal collectors. Photovoltaic panels convert sunlight directly into electric Power of Electricity, And thermal collectors use sunlight to heat water or air for various applications. Solar energy is abundant and accessible in most parts of the world, making it a leading source of green energy. Unlike fossil fuels, solar energy produces no air pollution or greenhouse gases during operation. it is Efficiently and in Huge Quantities being Produced by All the Countries,


Wind Energy


Wind energy is Produced by wind turbines, which convert the kinetic energy of moving air into electricity or Electric Power. Wind farms with multiple turbines are often Situated and Established in windy areas such as coastal regions or open plains. Wind power Energy System is one of the fastest-growing renewable energy technologies, offering a clean alternative to fossil fuels. Wind turbines do not emit pollutants, although their installation can impact wildlife and require land use planning. The Setups of Wind Energy Can Easily be Constructed and Established without or with Minimal Effect on Nature.

https://www.engineeratsite.com/
Wind Energy System


Hydropower Energy

Hydropower System generates electricity by using the movement of water through dams, rivers, or tidal systems. It is one of the oldest and most established renewable energy sources. Hydropower stations can generate a steady and reliable electricity source by harnessing and Converting the kinetic energy of flowing water. However, the construction of large dams can have ecological and social impacts, including the displacement of communities and disruption of aquatic ecosystems.

https://www.engineeratsite.com/
Hydropower Generation System


Geothermal Energy

Geothermal energy exploits the heat stored Under the Earth’s surface. In areas where the Earth’s crust thickness is less, such as near tectonic plate boundaries or volcanic regions, geothermal energy can be used to generate electricity or heat directly for buildings. This energy source is highly reliable and produces minimal emissions, but its availability is geographically limited to certain regions.

https://www.engineeratsite.com/
Geothermal Power Generation System


Biomass Energy

Biomass energy is derived from organic materials like wood, crop waste, and animal manure and waste Products. Through processes like combustion or anaerobic digestion, biomass can be used to generate heat, electricity, or even biofuels. Although biomass is renewable, its sustainability depends on proper resource management. If harvested unsustainably, biomass can contribute to deforestation and air pollution.

https://www.engineeratsite.com/
Biomass Energy System

Advantages of Green Energy

The Main and primary advantage of green energy is its minimal environmental impact. Just like fossil fuels, which release significant amounts of carbon dioxide (CO2) and other pollutants, green energy sources emit little to no greenhouse gases. This reduction in emissions helps combat climate change, one of the most Dangerous global challenges today.

Moreover, green energy is renewable, meaning it is not subject to depletion and it is not going to Exhaust or end. As long as the sun shines, the wind blows, and rivers flow, these energy sources can be Utilised and Used indefinitely. This contrasts And Concepts sharply with finite fossil fuels, which are expected to run out in the coming decades.

Green energy also promotes energy independence. Countries that invest in renewable energy infrastructure can reduce their reliance and Dependency on imported fossil fuels, enhancing their energy security and economic growth as well as stability.

Challenges of Green Energy

After All Green Energy has many benefits, green energy faces many uncertain challenges as well. One of the most Important Factors is the intermittent nature of some renewable sources, like solar and wind, which are totally dependent on weather conditions. Energy storage technologies, such as Power batteries, are crucial for addressing this issue but still, these are being developed and Technologies are Being Enhanced to scale Up.

Further, the upfront costs for green energy installations can be higher than other and conventional energy sources. After all, these costs of Green Energy Power Generation Systems have been declining rapidly for a Long Time Ago as technologies improve and economies of scale are achieved.

Conclusion

Green energy represents a vital step towards a sustainable future for the World Power Generation System. By reducing greenhouse gas emissions, promoting energy & Power independence, and leveraging abundant natural resources, it holds the potential to transform the global energy landscape. While there are challenges to overcome, continued investment and innovation in renewable energy technologies can help create a cleaner, healthier planet for future generations.


For More Post Click here

RRB JE Preparation Successful Strategy in 2024

RRB JE Preparation Successful Strategy in 2024

RRB JE Preparation Successful Strategy in 2024 CBT-1 And CBT-2

Hi, Dear all  Aspirants, here in this article we are going to discuss about the most effective preparation strategy for RRB JE in 2024 For Computer based Test- 1(CBT-1) and CBT-2,  Please be in the post and read it till the end.

https://www.engineeratsite.com/
RRB Je exam 2024 preparation strategy

Most Effective Preparation Strategy For RRB Je 2024:- Hi Friends Form Filling For the Post of Je IN RRB is Already Over and Now the Time is to Prepare for the Exam with Consistency and Dedication.

The Notification For 7951 Junior Engineer (Safety and Non-Safety), Depot Material Superintendent (DMS), Chemical Supervisor / Research, Chemical and Metallurgical Assistant (CMA), and Metallurgical Supervisor / Research Post was Released By the Railway Recruitment Board in July 2024 and Last Date for Online Form Submission was 29th August 2024,

Hopefully, The CBT-1 exam May Be Conducted in November or December 2024, That is why less time for preparation is Left, One Should Prepare for the Exam with full dedication, Consistency and an Appropriate time Table and Strategic Study Plan.

RRB Je Preparation Plan for Exam 2024:-

Hi Guys As we know the Computer-based test (CBT) or exam is Going to be Conducted Online Mode for the Recruitment of the Most Deserving Candidate within the Different Trades or Disciplines of Engineering, The RRB Je Exam is Most Awaited For which Lacs of Students have been Preparing to get Government Job as Junior Engineer in Most Respected Department of Indian Government. There in Large Number of Candidates are going to appear in the exam through different RRB’s and Different States, So having the Strategic approach and Robust study Plan with Proper Time Management One Can Get Qualified easily.

Preparation Overview for RRB Je 2024 Exam:-

the Railway Recruitment Board Conduct Various Exams, like ALP, NTPC, JE and many more to hired the Best deserving candidates,

https://www.engineeratsite.com/
RRB JE EXAM 2024 Highlights

Best Strategy For RRB Je 2024 Exam:-

A well-planned Je Exam Preparation Strategy is Very Much Crucial For Candidates Applied For the Post, The Competition is Going to be Very Tough. and The RRB Je Syllabus Includes Huge Diversified subjects including Technical Theories and objectives, GA/GS and Reasoning , General Intelligence, analytical ability, computer knowledge , english etc. and the alloted time for the exam is limited that is why only better strategy and plan can make any one to ge success in the exam of RRB Je 2024,

Strategy 1- Get into and Go through the Syllabus Deeply :-

To increase the chance of getting success in the RRB Je Exam 2024 one have to go through the syllabus deeply and understand it. The candidates are advised to understand the syllabus carefully as there are various subjects such as Technical and non-technical sections like General awareness, science, mathematics, general intelligence, Reasoning etc. are included,

Candidates can get an idea from the syllabus about which topics they have to focus on,

Get here the Brief of the Syllabus of RRB JE Exam 2024 from the table below it will be helpful for the candidates.

https://www.engineeratsite.com/
RRB JE SYLLABUS

Strategy -2  Get the Idea of Exam Pattern for RRB Je Exam 2024:-

The next strategy for preparation for RRB Je Exam 2024 is to master the exam pattern, to succeed in the exam the candidates need to become familiar with the exam pattern, Understand the style and structure of the question paper, Including types of questions, number of questions, number of sections, and number marking pattern and weightage of marks of all different topics and subjects the candidates can make a successful strategy to attend the maximum right question in the exam,

The RRB Je Exam Paper is divided into various parts and various sections with different topics, the 1st part and 1st stage there will be an objective type exam carrying 100 marks. it is divided into 4 different sections. the detailed exam pattern and weightage of several questions are given below in the attached table.

https://www.engineeratsite.com/
RRB Je Exam Pattern 2024

Strategy 3-  Balanced and well planned Time Table:-

The Candidates have to follow a balanced time table to manage the time properly to allocate enough time for each subjects and topics according the requirements, Both the Sections and topics from Technical and Non technical subjects needs enough time for study as well as for revision.

Strategy 4- Mock Test practice and solving questions from books:-

For Securing Good Score and being in Competition with higher Marks a Lot of Practice is required, Candidates Should Take Mock Test Regularly for each Subjects and Topics for preparation for RRB Je, after attending the Mock Tests Candidates can get the ideas of Questions , types questions, can lean how to manage time while attending the exam,

Candidates Can Analyse themselves and find their strength and weakness after taking mock tests, it will help them to improve their strategy to perform better.

Not only mock test, few Popular Books also Can help to Students  for preparation for the exam,

There are some popular authors’ Like R.S. Khurmi, J.K Gupta, S.P. Gupta & S.S. Gupta , Those books can be studied for Preparation, In These Books more than 10000 thousands Objective type questions can be solved and practiced, these question are collected from previous year Different Exams of JE and AE levels.

To purchase the Books directly From Amazon Please Click below links,

R.S. Khurmi – To purchase Click Here

Gupta & Gupta- To Purchase Click here

Non technical Books to purchase- Click here

Strategy 5- Attempting Previous Year Unsolved/Solved Questions and Answers:-

There are several advantages of Solving previous year questions from different JE level exams, with the help of this candidates can make them familiar with the difficulty level of the  exam, type of questions, and overall structure of papers ,

Also solving Previous year questions will increase and boost the confidence of candidates,

Strategy 6- Mindfulness , Exercise , Meditation & Motivation:-

Over all Mindfulness and motivation is the most important factor to clear any exam, for this the Aspirants need to do regular exercises, Yoga, meditation etc. spend some time in playing too keep healthy, to keep motivated aspirants can talk to the friend , family members and other who are already successful in their field,

For More Updates Click here

Join Free Telegram Channel For Regular Updates click here

NHAI Tender – Uday shivshankar Infra Ltd – KMC Construction Ltd JCV Declared L1 Bidder For 3 Projects

Widening to 4 Lane & Paved Shoulder from km. 111.5 to 148.088 on NH 69(Old NH 206) Honnarar-chittoor Section in State of Karnataka on EPC Mode


Widening to 4 Lane & Paved Shoulder from km. 111.5 to 148.088 on NH 69(Old NH 206) Honnarar-chittoor Section in State of Karnataka on EPC Mode.

https://www.engineeratsite.com/
https://www.engineeratsite.com/

NHAI Tender Details Are As Below-

1. Project Details- Widening to 4 Lane & Paved Shoulder from km. 111.5 to 148.088 on NH 69(Old NH 206) Honnarar – chittoor Section in State of Karnataka on EPC Mode.

Joint venture %-:-   UIL- 97%, KMCCL- 2.25%,

Cost :- Rs. 366.19 Cr.

Tenure of Completion of Work:- 24 Months,

2. Project Details- Widening to Two Lane with Paved Shoulders From KB Cross to Chunchanahalli ch. 485+240 to Ch. 523+393 and From ch. 530+393 to Ch. 534+476 at Nelligere of NH 150 A in the state Karnataka on EPC mode.

Joint venture %-:-   UIL- 97%, KMCCL- 2.25%,

Cost :- Rs. 299.19 Cr.

Tenure of Completion of Work:- 24 Months,

3. Project Details- Widening of Four Lane NH-548B from Km. 80+000 near Murgundi to Km. 140+200 near Chikkodi excluding Lenght from Km 118.450….

Joint venture %-:-   UIL- 51%, KMCCL- 249%,

Cost :- Rs. 392.92 Cr.

Tenure of Completion of Work:- 24 Months,


For More Updates Please Click here

Join Our Free Telegram Chanel for Regular Updates of New Tenders and Jobs click here

NEW TENDER OF ROAD PROJECT

NEW TENDER OF ROAD PROJECT – COMPARATIVE STATEMENT

Hi, There new tender of Road Project– Comparative statement is released please read the article.
https://www.engineeratsite.com/
https://www.engineeratsite.com/

Name of Work- PC AM-2(44B) – Improvement NH 753 A Datala Dabhadi panhera Girda Road MDR-21 km0/00 to 45/500 tal. Buldhana Dist. Buldhana on EPC Mode.
Estimated Project Cost – Rs. 201.73 Cr.
Shivalaya Construction Co PVT LTD – L1
Shree Palsiddha Construction             – L2
Evrascon JV                                         -L3
https://www.engineeratsite.com/

For More Updates Please Click here
For More Regular Updates Please Join the Free Telegram Chanel Click here

EXECUTIVE – QUANTITY SURVEYING

HIRING ALERT

FOR THE POST OF EXECUTIVE – QUANTITY SURVEYING

https://www.engineeratsite.com/
https://www.engineeratsite.com/


POSITION: EXECUTIVE-QS
EXPERIENCE: 8YEARS
EDUCATION: B.E(CIVIL), B.TECH(CIVIL) DIPLOMA 12 YEAR
EXPERIENCE
WORK LOCATION: ASSAM
SEND CV THIS NUMBER =+91 72520 00513
For more Regular Job Updates Please Click here
Join our Free telegram Chanel for Regular Updates click here

PNC INFRATECH LTD – REQUIREMENT OF EXPERIENCED PRFESSIONALS FOR CORPORATE OFFICE

PNC INFRATECH LTD- RECRUITMENT OF EXPERIENCED PROFESSIONALS FOR CORPORAT OFFICE

Hi friends there new recruitments are advertised PNC INFRATECH LTD for experienced professionals for their Corporate office.

The details of Post are as below-

https://www.engineeratsite.com/

  1. VP/AVP/GM/Project-Coordinator

BE/Diploma In Civil With 15+ years of Experience in Planning and Execution of highway Projects with Experties in Contracts Administration , Project Monitoring ,Leading the Execution team at site level, Coordination with client/independent Engineers/Consultants/Authorities etc.

    2. VP/AVP/GM -Contracts


BE(civil)/DCE with 10+ years of experience in comprehensive handling at the techno-contractual matters of infrastructure projects, more particularly highway projects and fully conversed with NHAI , MORTH , FIDIC and other contracts(EPC & PPP) with excellent drafting skills.

   3. VP/AVP/GM/DGM/AGM/MANAGER- Accounts/audits/finance.


CA(inter) with experience ranging from 10 to 20 years CA(final) with experience ranging 7 to 20 years in infrastructure/construction sector , well versed with project accounting , preparation and finalisation of balance sheets, MIS reports etc, preference will be given to candidate having experience in SAP.

   4. AVP/GM/DGM/AGM/SENIOR MANAGER-DESIGN


BE(civil) with post Graduation in structure/GT/ Transportation Engineering with experience minimum 10 years and Above in design and details engineering of highways, pavements, bridges and other structure including coordination with clients/authority/ Independant engineers/consultants etc.

   5. AVP/GM- Purchase


BE(Mechanical)/MBA , with experience of 10 to 25 years in procurements including market study and analysis , techno- commercial evaluation of machinery, construction materials/item, life cycle , cost analysis and financial negotiation, vendor development with sound knowledge in SAP,

   6. AVP/GM -HR


MBA/MSW from Reputed institute with minimum 10 to 25 years experience in Construction Industry of corporate level and who taken care of all HR and ER functions including formulating of HR policies , KRA, KPI ,PMS, TA, salary Negotiations, Statuary Compliances, handling legal/court matters, Organisation, development, succession, planning, learning, development for day to day smooth operations and administration of Organisation.

7. GM/DGM – Insurance


Postgraduate with Exepereince of 15 years and above in Engineering, Procurement and Construction sector with hands on experience in procuring best policies with comprehensive coverage at optimal cost with tireless negotiation with insurance companies submission of insurance claims, follow up till their realisation, Sound Knowledge in SAP.

8- GM/DGM/Manager – Store


Graduate / Diploma in Material management having 15 + Years of experience in store inventory in SAP MM and PM Module at Corporate Office Level , Experience in Infrastructure Sector will be given preference.

Note- email hr@pncinfratech.com , Only Sortlisted Candidates will be Called for interview and assessment 0562-4054400 , 0562-4070000

For More Update Click here

Concrete cube Failure -Acceptance Criteria and Is Code

Concrete cube Failure -Acceptance Criteria and Is Code
Concrete Cubes

Concrete cube Failure

The Word “Concrete cube Failure” is too difficult to hear for a civil engineer and quality engineer at construction sites,

It is too difficult to get approval of any structure if the cube fails in strength test,

Many times the Concrete cube failure leads to the demolition of the Structure or Rework,

Rework is not profitable for any construction project.

What happens if a concrete cube fails?

Why do concrete cubes fail?

Concrete Cube Acceptance Criteria➱

Before going to acceptance standards immediately, we’ll go step-by-step in the direction of it,

In order that we will additionally be in a position to establish the basic causes and does concrete actually failed in the compressive strength check.

First, we ought to be properly privy to the right way to sampling and cube casting exercises,

If this goes fallacious your result would possibly point out knowledge that might be concluded.

Now you probably did the appropriate sampling and dice-casting exercise, let’s transfer to the testing half.

You know we did numbering on the Concrete cube and cube number one,2 &Three represents pattern number one, cube quantities 4,5&6 represent sample no 2 and so forth.

Why we numb and we should take cubes for testing in accordance with pattern?

In statistical evaluation and discovering root causes of failure, it helps quite a bit.

Concrete cube Failure -Acceptance Criteria and Is Code
Concrete cube failure

Acceptance Criteria

As per IS 456, the person’s cube strength shouldn’t have variation greater than + / – 15% of the common of the three cubes.

Why concrete cube test is carried out?

In case you get extra variation in any check end result, how one can find the basic explanation for it.

Say you’re testing Three cubes and the numbers written on it are in serial and represent a pattern.
Say you’ve got a cube numbered 4,5 & 6 – by numbers I can say it’s a pattern no 2 and brought after x cum of concrete.

If you’ve got Concrete cube numbers like 3,5&7 taken for testing – it gained’t characterizes a single pattern,

As a result it’s a mix of a number of patterns.

What is the concrete cube test?

Always do confirm cubes taken for testing at any age are from identical pattern.

Now you’ve got Concrete cubes which characterize single patterns and identical workmen who stuffed it.

What is quality of cement and how to check

Suppose you bought outcomes like 15, 20 and 25 mpa.

What it’ll point out – it’ll point out that, there may be a subject in cube casting and you may discard these outcomes simply.

So this will provide you with an influence to have higher Quality management as a result of you recognize the rationale of failure and the place to take motion.

Concrete cube Failure -Acceptance Criteria and Is Code
Concrete cube testing

One single pattern of three cubes cast by a single individual and numbered accurately,

Won’t ever present variation in outcomes and you’ll all the time get outcomes with lesser variation than +/- 15%.

When it’s greater than this, it signifies Concrete cube casting accomplished improperly otherwise you took pattern cubes incorrectly for testing.

Hope you’ll by no means see flowery outcomes like the above instance after implementing it and might catch the root causes of failure simply by eliminating the risk of cube sampling and casting challenge.

So transfer on to acceptance standards,

IS 456, specifies the acceptance standards for compressive in addition to flexure power.

As flexure is 0.7 of sq. root of compressive strength, it is very important get handed in compressive power outcomes.
When we do cube testing, we write its leads to cube check register with serial numbers, say 1 is xyz date concrete from abc location,

What are the Properties of Concrete

And 2 is different date concrete from the ghi location and so forth.

When we examine acceptance standards,

IS says the commonality of Four non-overlapping consecutive check outcomes shouldn’t be lower than fck + 0.85 x standard deviation Or fck + 3 mpa (whichever is greater) for grades of concrete M20 and above.

What is implied by Four non-overlapping consecutive checks – it means while you common out Four check outcomes for acceptance standards,

They need to not overlap in calculations.

Acceptable averages

1,2,3&4, 5,6,7 & 8 and so forth serial quantity smart outcomes ought to be common out.

If you do like averaging beneath

1,2,3&4

If you’ve got low outcomes at 6 and eight and in case you attempt to make averaging like 3,4,5 & 6 – then it overlaps to make you profit by tweaking,

This isn’t permissible and that means of Four non-overlapping consecutive check outcomes.

If you’ve got good high-quality management at concrete,

Then your standard deviation will likely be lower than 2 or barely extra.

In these instances, or in most instances relevant acceptance standards will likely be all the time like fck + Three mpa.

What is consistency test of cement

Sometimes there’s a risk that, in one of many check patterns,

You would possibly get decreased outcomes and which makes that group of Four non-overlapping consecutive check-end results not in a position to meet acceptance standards.

In that scenario, IS 456 additionally specifies that individual check pattern outcomes shouldn’t be lower than

fck – Three mpa for M20 and above grade concretes.

So you also need to examine these standards when a single pattern have decreased outcomes.

Each check outcome ought to meet fck + 3mpa standards as a way to guarantee no failure and detect the issues at the earliest.

Also, it is very important to observe failure patterns to get clues on what is perhaps fallacious or OK.

Please Go Through The Link (Click Here) For More Updates on civil engineering

Quality of Cement-How to check

Quality of Cement-How to check
Cement Bags

Quality of Cement-how to check when it’s obtained at Construction site?

Do you understand, when concrete fails, one of many offender could be the Quality Cement.

It is necessary to test the Quality of Cement when it’s obtained at web site to make sure no failure and stoppage in undertaking resulting from dangerous high quality of cement.
Cement is transported within the luggage and bulkers.

When Cement attain at web site, do test following in an effort to make sure the cement is of fine high quality or not.

Check for ISI mark on the cement bag (This tells model is commonplace and follows the steps to make sure product high quality.

And in such instances third celebration testing report will not be necessary.

However you could get finished third celebration take a look at if shopper calls for otherwise you wish to do)

Check the Cement manufacturing particulars printed on aspect of bag for week,

Month and 12 months of producing to know the quality of cement initially

When week 1 begin and on which day in calendar (Quality of cement)➱

Week 1 begins on the first Jan of yearly.
The day on 1st date will adopted as a begin of week.
Say on 1st Jan, its Tuesday then week additionally begins on each Tuesday.

After checking the manufacturing particulars, do test how a lot previous is cement.
It is recommendation to eat the cement inside three months from manufacturing.
Because nobody is aware of the circumstances the place cement is stocked by a provider / dealer.

Insist your organization to purchase cement instantly from producer,

This make sure you get contemporary cement and no alteration

or damages to cement resulting from storage provider / merchants place.

Printing of Manufacturing week on bag occurs after bag is loaded with cement on a conveyor by which luggage are despatched both for stacking or instantly in wagon (at firm nobody use iron hooks)
Printing is robotically finished,

So someday you could get luggage on which the manufacturing particulars will not be printed accurately (Such instances you must inform the producer about this,

And get the written affirmation from them through e mail earlier than accepting it.

This may even make sure the rectification in printing course of and different engineers will obtain luggage with clear print on luggage)

Also i want to let you know that instantly order luggage haven’t on the market or not for retail printed on it.

A bag having worth written on it’s produced for retail sale.

And also you would possibly get a really previous luggage should you order it by retailer.

Do not settle for the cement which is greater than a month previous (Ensure you set this level in buy order to keep away from dispute in future).

Check the load of cement bags At Random To Know the Reality➱

In India Cement business wont look after the standard of cement, as soon as it’s dispatched from their manufacturing unit.

Cement is transported to their storage yards throughout India, max by means of prepare.

On relieving cement at unload level at railway station, buggers begin taking part in with that cement baggage with iron hook.

No Quality man from that producer will object this damaging of packing by these unskilled labours.
No producer have energy to switch these native labours at every station.

They can change the design and substitute all baggage as an alternative of making an attempt to switch labour which is inconceivable.

As a Engineer all of us ought to write to all cement producer to do one thing in an effort to safeguard the dealing with of cement.

Coming again to the purpose, on account of improper dealing with

And puncturing of cement baggage at a number of location,

There’s a chance that cement in baggage wont weight precisely or above 50 Kg and individuals who makes use of customary as bag for doing their daily work will get extra failure.because the bag might not be bag or 50 Kg.

So you will need to confirm the bag weight is above or equal to 50 Kg to keep away from failure in concrete as some one would possibly use a bag weighting lower than 50Kg as a bag

And do concrete which change an entire lot arithmetic and chemistry of concrete produced.

Manufacturers are privy to these losses on account of dealing with, as an alternative of correcting it,

that they had elevated the amount of cement in every bag to make sure 50Kg is delivered in regular transport loss.

After verifying the freshness on cement we will additional examine it for engineering properties.

Quality of Cement-How to check
Stacking Plane of Cement

Check the temperature of cement in packed bag Only➱

Sometimes chances are you’ll obtain a sizzling cement in bag,

It doesn’t imply that the hydration course of is began in it.

When cement is immediately loaded after manufacturing, it might be sizzling as much as 50 degree,

In such instances retailer cement for two to three days earlier than utilizing in an effort to permit it for cooling.

This occurs when order is greater than provide of cement.

If we use scorching cement false set might happen in concrete produced with it.

Which means concrete will turn into stiff after mixing it, to regain the plasticity, remixing needs to be performed.

Or mixing time of such concrete have to be elevated.

Check for Physical Properties Of Cement(To Know The Quality Of Cement)➱

Color of The cement➱

It relies upon totally on the colour of lime stone which is used to manufacturing of the identical

and the opposite efficiency enhancer components like flyash.

Cement in the direction of off-white shade doesn’t imply it’s unhealthy or have extra flyash or some other components (Example – AAC Cement – it have whitish lime stone,so shade is barely faint than gray shade)

Color of cement usually from shade of gray could also be darkish or could also be faint.

You ought to know why it’s faint or darkish (Ask your organization to rearrange go to to producer plant in an effort to perceive manufacturing higher.Such visits are prepare by producer freed from value on demand by the shoppers).

Smoothness➱

When you’re taking some cement in your fingers and rubbed it, it’s going to really feel silky easy as a consequence of fineness of cement.

If grinding will not be performed correctly, you’ll really feel the roughness in it.
If roughness noticed, test the fineness of cement.

What is Consistency test of Cement

Properties of Concrete it’s mix and types

Lumps in baggage➱

Lumps kinds in baggage as a consequence of lifeless weight on it referred to as as gentle lump which get breaks once we roll the bag.

Hard lumps – kinds as a consequence of to hydration of cement as a consequence of moisture contact

or direct contact in water throughout transport corresponding to rain water entered in bag.

if that is so cement needs to be rejected.

Contamination➱

Take handful of cement and throw it within the water, it ought to float for someday after which sink in water.

If its immediately sinking in water, it exhibits cement is modified after dispatch from plant

and should lead to failure (In such instances cubes needs to be casted and checked for 1 day power,

if it fails in it, cement needs to be rejected)

Consistency of Cement➱

It exhibits usually the water demand by cement, extra it demand larger the water cement ration goes and vice a versa.

In common normal consistency ranges between 27 to 34%

Older cement might present decrease water demand as a consequence of partly hydration of cement.

Also much less finer cement tends to much less water demand (coarser materials have much less floor space than finer materials).

Take the checks of Conistency of cement at 27 +/- 2 degree with relative humidity of 65 +/- 5% as per IS 4031 half 4.

No want to fret in case your lab will not be setup with such a precision,

You may nonetheless do a consistency take a look at and report the consequence as per your lab temperature

and confirm every consequence with outcomes obtained in earlier identical setting.

Compressive Strength Of Cement Cubes➱

A great engineer all the time do test for the compressive power of cement for every obtained batch of cement.

This guarantee no failure in actual work.

As the lab circumstances aren’t normal in case of many of the websites,

engineer can evaluate his outcomes with earlier outcomes of identical cement beneath identical situation.

Do ask to offer a normal lab set as much as your organization proprietor,

this will likely save an enormous losses at fraction of restore value.

Cement obtained in bulker➱

Loose cement dispatched in bulkers should not have the manufacturing particulars printed on it. You must confirm it by studying the main points supplied on dispatch challan.
Dispatch challan do point out the seals numbers that are printed on seals mounted at bulker openings after feeding cement in it.

Before opening the seals on all opening do confirm the numbers written on seal and challan are identical.

After verifying it do the identical course of which we use for inspecting bag cement.

Quality of Cement-How to check
Cement Transportation and feeding bulker

Preserving the pattern from every lot before Unloading➱

A Sample of cement as acquired must be protect in air tight bag or container with all particulars about that batch.

This may assist in fixing the dispute in future which can happen as a result of failure of concrete at undertaking

And in addition allow you to to blacklist the producer if he doesn’t settle for the failure.

Preserve pattern provides you with correct results of precise manufactured cement.

Failure in concrete might happen as a result of many potentialities equivalent to

Storage situation of cement at Construction site.
Batching situation for concrete.
Cube casting errors and so on.

Mistakes might occur at plant as a result of carelessness of any person (Chances are much less as a result of advance programs and automation at plants, however human could make errors too)

If you could have any query on it or if i had miss one thing please do reply i’ll right it.

This will assist engineers to do right checking of cement.

Please click here for more updates on engineering topics

Tubing-Tube- Materials, properties, efficiency

Tubing- Materials, properties, efficiency

Carbon and Alloy steel tube

1010

➱Low carbon range: .08/.13%
➱Good bending and flaring qualities, sometimes metallic element killed.
➱Good weld-ability and plasticity.
➱Relatively poor mach-inability.
➱Used for diesel oil injection lines; oil, fuel and hydraulic lines; condenser and warmth money changer tubes; heat-transfer tubes; lubrication equipment; shafting and bushings; thermocouple junction wells; and wide selection of mechanical applications wherever severe bending or forming needed.

1012➱

➱Low carbon range: .10-.15%
➱Produced from redraw that has been inside-surface conditioned to eliminate the likelihood of ID radial fissures and different defects.
➱Welding properties ar sensible.
➱Usually provided in Temper No. one (annealed) to allow severe fabrication like flaring, upsetting, and short-radius bending.
➱Used virtually completely for diesel oil injection lines.

1015➱

➱Low carbon mechanical steel tube often carried available by distributors attributable to its several applications.
➱Carbon range: .10-.20%.
➱Welding properties ar sensible with all strategies.
➱Flaring and bending qualities ar sensible within the tempered  condition.
➱Used for structural elements in industrial machinery, spacers, bushings, cylinder liners, punches, binder post, pinions, condenser and tuner shafts, magazine tubes in shotguns, gas valves, stitching machines, rifle and piece barrels.

1018➱

➱Generally provided in mechanical grade with carbon restricted to .15-.20% and element to .10-.30%.
➱Machinability is slightly higher than the “standard” 1015 material.
➱Welding properties ar glorious.
In Temper No. one tempered  condition, flaring and bending will be performed satisfactorily by traditional fabrication techniques.
➱Wide variety of mechanical applications the same as those listed for 1015.
➱Successfully used wherever a moderate quantity of machining is contemplated, however not requiring free machining grade like Leaded.

1020➱

➱Carbon range: .15/.25%
➱Used wherever slightly higher mechanical properties ar needed than will be obtained with 1015.
In the correct temper, this material has higher machinability than 1015.
➱May also be used for carburizing functions.
➱Used for record changerposts, chemical-projectile charge tubes, cable connectors, bushings and rollers, gun drill tubes, textile spindles, textile winder elements, hubs for wheel assemblies, and engine elements.

LEADED 1020➱

➱Excellent machining characteristics.
➱Carbon range: .15-25%.
➱Lead range: .15-35%.
➱The addition of lead makes it doable to chop quicker with heavier feeds, cut back decline the tool, and supply a higher end.
➱Interchangeable with 1020.
➱Preferred wherever savings from augmented machinability, lower tool wear, and finer end offset the upper material value.
➱Particularly helpful in screw machine operations, wherever high production necessities ar common.

1025➱

➱Where mechanical properties over those getable with 1020 ar needed, this material is usually counseled.
➱Carbon range: .22-.28%.
➱Good fastening qualities.
➱Used for framing structural elements, engine mounts, hard-hitting condensers and warmth exchangers, piston pins, readying instrumentality, ticker half, spacers, and housings.

1035➱

➱Carbon range: .32-.38%
➱Used wherever higher mechanical properties ar needed than with the lower carbon grades.
➱Within limits, mechanical properties will be improved over cold-drawn properties by heat treatment or a mix of warmth treatment and cold drawing.
➱Bearings and sleeves and bushings, fuse tubes, plating tank anodes, valve pushrods, housings, shanks for reamers, tire reparation tools, rock drilling instrumentality.

1045➱

➱Carbon range: .43-.50%
➱Used wherever higher mechanical properties ar needed than with the lower carbon grades.
➱Within limits, mechanical properties will be improved over cold-drawn properties by heat treatment or a mix of warmth treatment and cold drawing.
➱Bearings and sleeves and bushings, fuse tubes, plating tank anodes, valve pushrods, housings, shanks for reamers, tire reparation tools, rock drilling instrumentality.

1524➱

➱A high strength low alloy containing high metal.
➱Useful for prime pressure diesel oil injection systems.
5% Cr
➱A low carbon five-hitter chromium/.50% alloy steel.
➱Useful for warmth money changer tube.

4130➱

➱These low-alloy steels will be hardened by heat treatment.
➱In the tempered  condition afford sensible workability.
➱Can be equipped conditioned within surfaces.
➱Frequently used for craft structural elements. additionally for engine mounts, drone springs, water tubes, hard-hitting instrument lines, cable connectors, craft studs, bushings, radiolocation antennas and supports, drill shanks, and valve pushrods.

4132➱

➱These low-alloy steels will be hardened by heat treatment.
➱In the tempered  condition afford sensible workability.
➱Can be equipped conditioned within surfaces.
➱Frequently used for craft structural elements. additionally for engine mounts, drone springs, water tubes, hard-hitting instrument lines, cable connectors, craft studs, bushings, radiolocation antennas and supports, drill shanks, and valve pushrods.

8630➱

➱These low-alloy steels will be hardened by heat treatment.
In the toughened condition afford sensible workability.
➱Can be supplied with conditioned within surfaces.
➱Frequently used for craft structural elements. conjointly for engine mounts, drone springs, water tubes, aggressive instrument lines, cable connectors, craft studs, bushings, radio detection and ranging antennas and supports, drill shanks, and valve pushrods.

4140➱

➱Carbon range: .38/.43%.
➱Otherwise there’s very little distinction between 4140 and 4150.
➱However, 4150 is chosen once slightly higher mechanical properties square measure needed.
➱Golf club shafts, racquet handles, tamping rods, tufting needles, drill-shank conduit, key sockets, electrical connectors, and hand tools square measure typical applications.

4150➱

➱Carbon range: .48/.55%
➱Otherwise there’s very little distinction between 4140 and 4150.
➱However, 4150 is chosen once slightly higher mechanical properties square measure needed.
➱Golf club shafts, racquet handles, tamping rods, tufting needles, drill-shank conduit, key sockets, electrical connectors, and hand tools square measure typical applications.

4615➱

➱Carbon content is control to .13-.18% for optimum plasticity.
➱Made from redraw that has been specially conditioned to get rid of ID fissures and different defects.
➱Produced in accordance with current SAE customary for mechanical system conduit.
➱Annealed at end to provide a soft, ductile material. Used nearly completely for mechanical system conduit.

9260➱

➱Carbon range: .56/.64%
➱A high steel containing .75-1.00% atomic number 25 and one.80-2.20% element.
➱Possesses properties of toughness and fatigue resistance.
➱The analysis conjointly points to a cheap alloy.

52100➱

➱This low-alloy steel is employed once high hardness and resistance to wear and abrasion square measure needed.
➱Carbon content: .95-1.10%.
➱Proper heat treatment can improve, inside limits, the mechanical properties of cold-drawn condition.
➱Thread guides, nylon yarn guides, ball-bearing races, nozzles, gear and pinion elements, dental instruments, yarn carrier tubes, extrusion mandrels square measure among its applications.

STAINLESS STEEL CONDUIT➱

303 Se➱

➱An eighteen Cr-9% nickel nonhardenable alloy containing atomic number 34 and additional amounts of sulfur and phosphorus.
➱Most pronto machinable of all primary solid solution grades.
➱Properties on the point of those of kind 304, elongation somewhat lower.
➱Nonmagnetic in toughened condition.
➱Weldable by resistance strategies, fusion fastening not counseled. proof against scaling up to 1650°F.
➱For use wherever a free cutting material is required; offers high resistance to corrosion; assures sensible effect surface.
➱Typical applications: bushings, casters, shafts, rivots, valve and pump elements.

304, 304L➱

➱An eighteen Cr-10%, nickel low-carbon, corrosion and heat-resistant steel.
➱Nonmagnetic within the toughened temper.
➱Subject to damaging inorganic compound precipitation in 900°F to 1600°F vary.
➱Fully corrosion resistant in utterly toughened condition.
➱Excellent mechanical properties as low as -300°F.
➱Type 304L has exceptionally sensible fastening and fabrication properties and might be used rather than stable grades.
➱Extensively used for surgical instruments, food process instrumentation, potable coils, and textile machinery.
➱Other uses embody miniature bearings, camera elements, electrical device covers, ignition harness elements, heat exchangers, craft hydraulic lines.

What do you need for tubing?

305➱

➱A high-nickel variant of 18-8.
➱Behaves abundant constant as kind 304 in corrosion resistance, inorganic compound precipitation, and scale resistance.
➱Low magnetic permeableness (1.005 max.) even once gently cold worked.
➱Low work-hardening rate for severe forming.
➱For applications wherever severe forming is concerned.
➱Used for electrical instruments, beam tube anodes, and grid cups.

309S➱

➱Primarily a heat-resistant alloy containing twenty fifth Cr-12% nickel.
➱Good scaling resistance in continuous service to 2000°F, intermittent service to 1800°F.
➱Subject to inorganic compound precipitation in vary of 900-1600°F.
➱Corrosion resistance kind of like, however higher than, that of kind 304.
➱Very good creep strength and weldability.
➱Too robust for intensive machining.
➱Used extensively for sheath tubes on electrical heating components.
➱Also for warmth money handler and condenser conduit, craft heater elements, and hearth detection instrumentation components.

Why is tubing dangerous?

310S➱

➱This is a heat-resistant alloy containing twenty fifth Cr-20% nickel.
➱Mechanical and corrosion resistant properties rather kind of like, however higher than, those of kind 304.
➱Good for continuous service to 210°F-intermittent to 1900°F.
➱Nonmagnetic at temperature in toughened condition.
➱Excellent weldability.
➱Industrial chamber elements, reaction engine afterburners, thermometer protection elements, fuel lines, special passage lines.

316, 316L➱

➱A terrorist organization Cr-13% Ni-2 1/2% Mo alloy that gives the most effective corrosion resistance of the quality primary solid solution grades, particularly to H2SO3 compounds.
➱Highest creep strength of the three hundred Series.
➱Scale resistance is 1650°F scoop.
➱Type 316L could be a low-carbon variant and might be welded and heated within the vary 900-1600°F while not injury to corrosion resistance.
➱Excellent resistance to dyes, prescription drugs and method liquors.
➱Used conjointly for pipe springs and alternative instrument elements subject to severe corrosion.

317➱

➱A higher metallic element and Cr bearing primary solid solution chrome steel than kind 316.
➱Optimum corrosion resistance.
➱More proof against intergranular attack than kind 316.
➱Preferred wherever lightweight gage material is to be welded.
➱Suitable for applications requiring resistance to vitriol concentrations up to five at temperatures to 120°F.
➱Also wherever condensation of sulfur bearing gases happens.

What is the use of tube?

321➱

➱Type 321 is associate degree eighteen Cr-10% nickel atomic number 22 stable alloy
➱Designed to beat condition to inorganic compound precipitation and resultant intergranular corrosion.
➱Can be welded while not ulterior hardening.
➱Nonmagnetic within the toughened condition.
➱Hardenable solely by cold operating.
➱Approximate kind 304 in corrosion resistance.
➱Resist scaling up to 1600°F in continuous service, 1450°F in intermittent.
➱Types 321 and 347 have higher creep resistance than 304 (347 higher at higher temperatures).
➱Type 347 is extremely fine grained, limiting workability.
➱Aircraft hydraulic lines, exhaust collector rings, fuel lines, industrial and chemical instrument elements, capillary.

347➱

➱Type 347 is associate degree eighteen Cr-11% nickel Nb stable alloy
➱Designed to beat condition to inorganic compound precipitation and resultant intergranular corrosion.
➱Can be welded while not ulterior hardening.
➱Nonmagnetic within the toughened condition.
➱Hardenable solely by cold operating
➱Approximate kind 304 in corrosion resistance.
➱Resist scaling up to 1600°F in continuous service, 1450°F in intermittent.
➱Types 321 and 347 have higher creep resistance than 304 (347 higher at higher temperatures).
➱Type 347 is extremely fine grained, limiting workability.
➱Type 348 offers low-neutron cross section properties.
➱Type 347-Guided missile and rocket elements, readying instrumentation, pump and valve elements.
➱Type 348-Atomic energy applications wherever material either contains hot substance or is exposed thereto.

348➱

➱Type 348 is associate degree eighteen Cr-11% nickel Nb metal stable alloy
➱Designed to beat condition to inorganic compound precipitation and resultant intergranular corrosion.
➱Can be welded while not ulterior hardening.
➱Nonmagnetic within the toughened condition
➱Hardenable solely by cold operating.
➱Approximate kind 304 in corrosion resistance.
➱Resist scaling up to 1600°F in continuous service, 1450°F in intermittent.
➱Type 348 offers low-neutron cross section properties.
➱Type 348-Atomic energy applications wherever material either contains hot substance or is exposed thereto.

What is the difference between a pipe and tube?

21Cr-6Ni-9Mn➱

➱A changed two hundred series primary solid solution unblemished, out there solely in welded grade.
➱Developed permanently corrosion resistance and high strength.
➱High mechanical properties achieved as results of cold operating solely, as ar the three hundred series.
➱Excellent tensile and impact properties within the toughened condition as low as -423°F.
➱Approximately five hundredth of the nickel content of three hundred series unblemished steels are replaced by the redoubled metal content.
➱Having virtually doubly the strength-to-weight quantitative relation of 304, largest usage these days is for craft hydraulic lines.

408➱

➱403 is comparable to kind 410
➱Except that it includes tiny additions of nickel and Mo and might be hardened to illustrator C36-40 by ending or air cooling from 1750-1850oF. Not subject to inorganic compound precipitation, however low in impact properties at low temperatures.
➱Air hardening, they gift some problem in fastening.
➱Widely used where sensible spring properties ar required.
➱Excellent for pipe springs, medical instruments, and rotary engine elements.

410



Type 410 could be a basic hardenable alloy containing twelve-tone music metallic element,
Magnetic altogether conditions and may be hardened to Norman Rockwell C36-40 by extinction or air cooling from 1750-1850°F.
Not subject to inorganic compound precipitation, however low in impact properties at low temperatures.
Air hardening, they gift some issue in fastening.
Type 410 is least costly chrome steel.
Widely used where smart spring properties square measure required.
Excellent for pipe springs, medical instruments, and rotary engine components.

405



Ferritic steel not subject to considerable hardening through air cooling from high temperatures.
This tendency retards the knowledge of hardening cracks caused by fastening.
Practically a similar corrosion and oxidization resistance as sort 410.
Can be machined, drawn, spun and shaped delicately.
Used for applications wherever hardening upon cooling from high temperatures should be avoided.


Why must the ends of pipe be beveled before being welded?

416e



A hardenable, straight metal, low carbon (.15% max.) chrome steel containing either Se or sulfur to produce free machining properties.
Better machining properties than the solid solution 303 sorts, however lower corrosion resistance.
Developed particularly for automatic screw machine work.
Facilitates grinding, and is non seizing.


Concrete Properties It’s Types and Mix

430



Type 430 could be a straight 17 November metallic element alloy with corrosion and heat-resistant properties superior to those of sorts 410 and 420.
It is magnetic altogether tempers and nonhardenable.
The welded material is comparable, however has metal additional (.60% max.) to eliminate coarse grain welds of low plasticity.
Mechanical properties jibe those of soft-cast steel, machines higher than solid solution grades.
Widely used wherever corrosion resistance to the atmosphere, water, and foodstuffs is needed. Examples: dairy farm machinery, electrical appliances, oil burners, and chemical instrumentality.

430Ti



Type 430 could be a straight 17 November metallic element alloy with corrosion and heat-resistant properties superior to those of sorts 410 and 420.
It is magnetic altogether tempers and nonhardenable.
The welded material is comparable, however has metal additional (.60% max.) to eliminate coarse grain welds of low plasticity.
Mechanical properties jibe those of soft-cast steel.
Machines higher than solid solution grades.
Widely used wherever corrosion resistance to the atmosphere, water, and foodstuffs is needed. Examples: dairy farm machinery, electrical appliances, oil burners, and chemical instrumentality.

446



27% Cr-has the very best heat resistance of all ferritic unsullied steels.
A N additive is employed to forestall embrittlement through the 1200-1800°F vary and additionally to assist management grain size.
Resists scaling in continuous service to 1900-2100°F.
Excellent corrosion resistance to aqua fortis, targeted oil of vitriol, and most alkalies.
Shows smart resistance to sulfurous atmospheres at high temperatures.
Used wherever conduit is subjected to heat in oil and gas furnaces, for muffle tubes, fuel lines, steam boilers, chemical instrumentality, hearth detection instrumentality, and for capillary tube.

ALLOY 26-1



A unique twenty sixth Cr-1% Mo ferritic chrome steel.
Available in WELDRAWN grade solely at the moment.
Extremely clean alloy with terribly low carbon, N and alternative impurities.
Alloy is nickel-free, giving economic blessings as alternate for several applications wherever nickel-bearing unsullied grades square measure such that.
Excellent formability and corrosion resistance ought to build it fascinating material for applications within the chemical, organic compound, food process, pulp and paper fields.

N-55



An iron base alloy with wonderful oxidization resistance, smart plasticity.
Can be spun, rolled flanged and dish-shaped cold.
Can be machined, welded and brazed.
Has smart resistance to corrosion in bound media underneath each oxidizing and reducing conditions.
Recommended to be used in applications involving high stresses at temperatures to 1500°F and moderate stresses up to 2000°F.


What is Structural Engineering

17-7 pH



A chromium-nickel chrome steel containing more or less 1 Chronicles metallic element which will be hardened by a low-temperature precipitation hardening treatment.
Offers straightforward hardening, high strength, corrosion resistance akin to sorts 302 and 304, and high fatigue strength.
Can be welded by metal arc, gas-shielded arc and resistance fastening strategies.
Used extensively in craft and missiles yet as for valve and pump components.

16-6 pH



Precipitation hardening alloy thought of being a good replacement for Almar 362.
It is relatively higher in metal, carbon and nickel.
Its properties square measure like 17-7PH, except that it’s obtainable in seamless type for heavier wall applications.
Mechanical properties in each the treated and age hardened conditions square measure over Almar 362, and may be exaggerated considerably by cold operating before aging.
Outstanding characteristics: high strength, ductility, fabricability and exceptional corrosion resistance in numerous environments.
General corrosion resistance and strength seem higher than 410 and 430, and like, or higher than 304 and also the three hundred series of unsullied steels.
Used wherever conduit with high strength and smart corrosion resistance is required.
Immediate applications: instrumentation, high strength meat injection needles, gun drill shanks.

A-286



Precipitation hardening alloy.
Good strength to 1200°F.
Good oxidization resistance for intermittent service up to 1500°F.
Excellent corrosion resistance up to 1300°F against all atmospheres encountered in reaction-propulsion engine and turbo compressor applications.
Reasonably smart resistance to salt spray corrosion.
Used in rocket and reaction-propulsion engine applications wherever high combustible temperatures square measure encountered, and additionally for handling super-cooled fuels like LOX.
Also turbine fuel lines and craft mechanical and hydraulic conduit.

PRINCIPAL CHROME STEEL CONDUIT MERCHANDISE


Capillary conduit



Types 304, 316, 321, 347 and 446 unblemished. (Also 1010 carbon steel; Nickel-2000; Monel-400; and Alloy-600.)
ODs from .030 to .187 in., IDs from .004 in.
Has very clean and sleek ID.
Good fabricability.
Ductile.
High ID uniformity.
Coil lengths up to 3000 foot.

Super Pressure conduit



For pressures to a hundred,000 psi.
Normally made from varieties 304, 316, and 347 conduit.
Also accessible in 4130 steel.
Two types: single wall or composite wall.
Hydrostatically tested to sixty,000 psi once needed by client.
Sized from 1/8 to 3/4 in. OD.

Large OD, light-weight Wall conduit



Types 304, 321 chrome steel.
Sizes to a pair of in. OD, wall thicknesses .025 in. and lighter.
This thin-wall conduit is such as for stern applications wherever severe forming is needed, as in versatile hose, bellows, etc.

Aircraft Hydraulic conduit



Made in varieties 304, 321, 347 Alloy to rigid MILT and AMS specifications.
Guaranteed sleek and clean internal and external surfaces.
Furnished with certified check reports.
Available in each seamless and WELDRAWN forms in sizes from 3/16 to one 1/8 in. OD.
Every length clearly marked with our name, specification, analysis, heat range and size.
Types 21Cr-6Ni-9Mn and 3AI-2.5 Ti alloys are accessible for craft Hydraulic conduit Application.

Aircraft device conduit



Types 304, 304L, 310, 316, 316L, 321 and 347 unblemished.
Meets all industrial and military specifications.
Completely quality controlled with wall uniformity predominate.
Extra shut tolerances.
Precision surface inspected.
Offers fascinating brazing and fastening qualities.
Size range: 1/8 in. OD x .003 in. wall min. to 1/4 in. OD x .016 in. wall max.

Bellows/Flexible Hose conduit



Excellent plasticity to resist severe fabrication and continual flexing for convoluting grades.
Resistance to corrosion and high temperatures.
Freedom from carburization, dents and pick-ups.
Uniform wall thickness and temper.
Smooth surfaces to boost fatigue life.
Usually laid out in varieties 316, 321 and 347 unblemished, however additionally made in Monel Alloy four hundred, Alloy 600, Nickel 200, and alloy Alloy X-750.
ODs, 3/8 to one 1/8 in., wall thickness, .005 to .025 in.
Also created in composites of two,3 or additional plies of thin-wall conduit.

Needle conduit



Stainless steel kind 304.
Widely used for mechanical applications.
Offered in gages from half dozen through thirty three (see table).
Usually provided in lengths of two to twelve foot.


NICKEL AND alloy conduit


NICKEL two hundred (“A” Nickel)



Combines glorious mechanical properties with corrosion resistance that’s usually smart and is outstanding beneath several conditions of exposure.
Non-hard-enable by heat treatment; but strength and hardness could also be magnified by sold  operating.
Scale resistant in sulfur-free atmospheres to 1650°F.
Magnetic all told tempers and in temperatures to regarding 400°F.
Carbon content is .15% max.
Extensively utilized in physical science as cathodes in negatron tubes and in-tuned with reducing acids, foods, chemical process liquors, caustics, rayon, prescription drugs and plastics.
Also used once absolute purity of product should be assured.

NICKEL 201 (Low Carbon Nickel)



Has much constant chemical composition as Nickel two hundred, with one major exception-very low carbon content (.02% max.).
Excellent corrosion resistance-may be utilized in oxidizing temperatures to 1650°F.
Slightly less strength and lower work hardening rate than Nickel two hundred.
Recommended wherever shut radius bends and/or severe flanging or spinning is needed.
Also used for thermometer protection conduit in liquid salt bathtub furnaces.

NICKEL 211(“D” Nickel)



Generally similar in composition to Nickel two hundred, the foremost vital distinction being inclusion of four.5% atomic number 25 to interchange a like quantity of nickel.
Resists region and sulfur attack at elevated temperatures.
Mechanical strength, each at traditional and elevated temperatures, is somewhat larger than that of Nickel two hundred.
Used in constant style of applications as Nickel two hundred wherever larger resistance to sulfur oxidization and magnified mechanical properties area unit needed.NICKEL 270
High-purity grades of nickel exceptionally freed from nonmetal inclusions.
Offers low base hardness and smart plasticity.
Recrystallization temperatures for cold worked material area unit appreciably not up to those for Nickel 201.
Used extensively where Associate in Nursing exceptionally clean and very pure product is needed.
Present major application is for passive cathodes in receiving tubes and for structural parts in special-purpose vacuum tubes.

MONEL ALLOY four hundred (Monel)



Combines high strength, plasticity and wonderful resistance to corrosion; may be a all-purpose alloy.
Scale resistant in sulfur-free atmospheres to 1000°F.
Nonhardenable.
Magnetically attracted at temperature, however loses this characteristic at Curie point simply on top of temperature.
Used in chemical and process instrumentation, pulp and paper machinery, food process and packaging machinery, petroleum, organic compound and power-generating equipment.
Also in surgical and medical instruments, heating parts, magnet valves, and marine instrumentation.

MONEL ALLOY 404



Provided low magnetic permeableness.
Can be fictional without delay. Retains abundant of its strength at outgassing temperatures, and low magnetic permeableness isn’t considerably laid low with process and fabrication.
Well suited to be used in pickling systems handling sulphuric acid answer.
Also for vacuum capacitors and relays, ceramic to metal seals, and envelops for lepton tubes.

MONEL ALLOY K-500 (“K” Monel)



An age-hard-enable grade of Monel with a similar wonderful corrosion resistance, however having bigger strength and hardness.
Can be drawn, formed, upset swagged or otherwise cold worked within the tempered  condition.
Optimum properties is earned by heat treatment from the totally cold-worked tem Ideal for applications wherever strength, light-weight, and resistance to corrosion and wear ar necessary factors.
Widely used for drone springs, torsion tubes liquid level controllers, arbor rods, and sleeves and bushings in pumps and valves handling salt water.

ALLOY 600



A high nickel-chromium-iron alloy.
Outstanding in strength, corrosion resistance, and oxidization resistance at elevated temperatures up to 2150°F.
Can be joined by the same old attachment, brazing and attachment processes.
Extensively used for thermometer protection conduit, muffle tubes, jet and jet engine fuel lines, and instruments.
Also for food process instrumentation, dental and surgical instruments, and odontology appliances.

INCONEL ALLOY 601



Another of the nickel-iron-chromium alloys for top temperature service, exhibiting smart mechanical properties with wonderful resistance to thermal fatigue, distortion, and carburization.
Has exceptional ability to resist oxidization, each cyclic and static.
Uses embrace industrial heating, chemical industries, jet and rocket engines, and hot temperature instrumentation.

INCONEL ALOY 625



A nickel-chromium-iron alloy with atomic number 41 and atomic number 42 superimposed. Has high strength, corrosion and warmth resistance.
Shows wonderful resistance to oxidization as proven by cyclic oxidization tests that indicated total chemical compound penetrations of solely zero.0019 in. once one thousand time unit. at 1800°F and zero.0030 in. once 600 time unit. at 2000°F.
With the atomic number 41 and atomic number 42 additions it’s wonderful stress rupture properties to 1200°F and isn’t laid low with radiation embrittlement.
The higher hot strength of the alloy results from the solution strengthening of the nickel-chromium matrix by the addition of the atomic number 41 and atomic number 42.
Characteristics of alloy Alloy 625 indicate applications within the nuclear and craft fields.
Tubing has been provided for fuel part facing, rocket thrust chambers, and spray bars or nozzles for A/C engines.

INCONEL ALLOY 702



A high metal, low metal modification of alloy Alloy X-750 nickel-chromium-iron alloy.
Creep rupture strength at 1500°F for one thousand time unit. is 10,000 psi.
Offers wonderful oxidization resistance at temperatures to 2400°F.
Recommended for applications within the hot temperature vary wherever stresses ar comparatively low.
Has been used with success in high-temperature furnaces, for fuel part and warmth money changer conduit in nuclear reactors, and in craft and missiles.

ALLOY 718



One of the distinctive options of this alloy’s composition is that the addition of atomic number 41 to allow age hardening of this nickel-chromium-iron-molybdenum alloy.
It is so set aside from widespread nickel-chromium alloy series that ar age-hardened through the employment of metal and metal.
It has smart plasticity at 1200°F-1400°F and mechanical properties together with 1300°F.
Slow aging response permits heating and cooling throughout hardening while not danger of cracking.
Fracture toughness tests (with forms apart from tubing) at temperatures from -320°F to 1000°F indicate wonderful values.
Very satisfactory welds ar obtained victimization inert-arc techniques and issues related to attachment of age-hardenable alloys ar eliminated.
Applications embrace craft heat exchangers, versatile hose and bellows.

INONEL ALLOY X-750



High strength, corrosion resistance, and resistance to oxidization at elevated temperatures (1200-1500°F).
Creep rupture strength at 1500°F for one thousand time unit. is 18,000 psi.
Unusually robust at each normal and high temperatures and within the answer treated and aged condition.
Used for extremely stressed cannular components in corrosive and oxidizing atmospheres, together with braces in reaction engine afterburners, temperature probes, O-rings, bellows, sheaths for thermocouples, torsion tube assemblies, and rocket agent tubes.

ALLOY 800



A nickel-chromium-iron alloy with smart resistance to oxidation; retains its strength at elevated temperatures, has smart workability and attachment properties.
Superior to alloy Alloy 600 in resistance to sulfur, green rot, and liquified cyanide salts, comparable in resistance to oxidization and united neutral salts.
Used for Calrod units, chamber muffles, and warmth exchangers.

DURA NICKEL ALLOY 301 (Duranickel)



A wrought, age hardenable, nickel-aluminum alloy with wonderful resistance to corrosion, not to mention bigger strength and hardness than nickel offers at each space and elevated temperatures
Used for valves, pumps and warmth exchangers handling sulphuric acid sludges and different sulphuric acid solutions and different chemical applications wherever corrosion resistance is needed.


OTHER ALLOYS


WASP-ALLOY



Offers the most effective creep rupture strength of all Super Alloys which will be without delay fictional into conduit.
Can be heat-treated to get high strength needs.
Excellent corrosion resistance up to 1600°F against gaseous  atmospheres encountered in reaction engine operation and similar service applications.
Resistance to oxidization is extremely satisfactory through 1600°F in intermittent service; continuous service temperatures to 1900°F is sustained.
Applications embrace turbine engines and missile systems, reaction engine fuel nozzles, and device spray bars.
Also for different services requiring oxidization resistance at temperatures given on top of.

ALLOY L-605



Offers outstandingly smart corrosion resistance to most agents at normal temperatures.
Resistance to oxidization is nice for intermittent service to 1600°F and continuous service to 2000°F.
Creep rupture strength at 1500°F for one thousand time unit. is 18,000 psi.
Excellent resistance to the new corrosive atmospheres encountered in reaction engine operation.
Resistance to salt spray corrosion is nice.
Typical applications ar rotary engine blades, combustion chambers, device components, and rotary engine rings.
Also temperature probes, thermometer protection tubes, and instrument components and transfer lines within the chemical and organic compound field.

ALLOY 188



Cobalt-base Super Alloy; has 1000-hour stress rupture strength at 1200°F at twenty five,000 psi minimum stress together with resistance to progressive scaling (oxidation) and different kinds of corrosion.
Readily cold worked to extend strength and hardness, may be welded by most standard ways.
Potential uses embody heat instrumentation like thermometer sheaths, turbine and reaction-propulsion engine elements, and nuclear parts.

ALLOY C-276



Excellent corrosion resistance, particularly to metal chloride and cuprous chloride.
Also to wet halogen gas and salt and dioxide solutions.
Has wonderful heat strength.
Resistant to oxidizing and reducing atmospheres to 2000°F.
Primarily used wherever exceptional corrosion resistance and heat strength ar needed.
Typical ar the outer sheath for electrical hollow heating components, thermometer rakes, probes, photographic process instrumentation, and lubricating lines for chemical instrumentation.

ALLOY HX



Excellent high-temperature strength with chemical reaction resistance to 2200°F.
Creep rupture strength at 1500°F for a thousand hour. is 10,000 psi.
Unusual resistance to oxidizing, reducing and neutral atmospheres.
Easily shaped and welded.
Used in the industry thanks to its corrosion resistance and high strength and for jet craft and missile elements and parts.
Also for fuel components in nuclear reactors, thermocouples, metal spray nozzle sleeves, protective cover for ceramic-insulated thermocouples and electrical heating components.

80-20 ALLOY



Combines high thermal ANd mechanical properties with ohmic resistance to an unexceeded degree.
Withstands temperatures to 2100°F for long periods.
Highly immune to corrosion.
Nonmagnetic.
Used for reaction-propulsion engine igniter plugs, thermocouples, instrument elements, special condensers, heat exchangers, and resistance heaters.
30% copper-base alloy
Outstanding for service wherever corrosion and erosion ar encountered.
Higher hardness, tensile and yield strength, and plasticity than the ten alloy offers.
Retains a lot of of its short-time strength and plasticity up to concerning 700°F.
Strength and plasticity increase with falling temperature to concerning -320°F.
Widely utilized in applications requiring exceptional corrosion resistance.

NI-SPAN C ALLOY 902 (Ni-Span C)



Heat treatable; designed primarily to get a continuing modulus of snap during a helpful temperature vary of -50°F to 150°F.
Outstanding modulus management and high strength combined with low drift in mechanical physical phenomenon.
Offers corrosion resistance superior to it of nonstainless steel.
Excellent for drone springs, instrument bellows, and magnetostriction devices.
Also utilized in pressure sensing components of transducers, potentiometers, accelerometers and gyroscopes.

Nickel-Iron Alloy



Fundamentally fitted to structural elements.
Strong, tough, ductile. helpful degree of corrosion resistance.
Magnetic at temperatures below their curie points and nonmagnetic on top of them
Cannot be hardened by heat treatment, however may be strong by cold operating.

36% Nickel-Iron Alloy



Used for bimetallic or composite tube in regulator controls, thermometers, measure and astronomical instruments.
Also air-conditioning-control instruments, strain gages, and features transporting liquid gas.

42% Nickel-Iron Alloy



For protection to glass. it’s well-tried helpful as a regulator metal for higher temperatures.
It has been utilized extensively within the construction of vacuum tubes, lamps, terminal caps, condenser elements, and electronically controlled switches.

52% Nickel-Iron Alloy



Has more or less a similar constant of enlargement as many business glasses furthermore because the forsterite kind ceramics.
It is conjointly one amongst the popular alloys for sensitive magnetic applications and for regulator work. Its high magnetic porousness at each low and high flux densities could be a valuable property.

4 Alloy



Nickel-chromium-iron.
Expansion constant ideal certainly soft glasses.
Widely used as an inside seal.
Thermal electrical electrical resistance is somewhat high, and current-carrying capability is proscribed.
Provides a vacuum tight and strainfree seal.

Alloy 29-17 (Kovar)



A nickel-cobalt vacuum melted  flow enlargement alloy used for creating tight seals with tougher glass glasses and ceramic materials.
It has found use in electronic applications like diodes and integrated circuits.

PRINCIPAL NICKEL AND NICKEL ALLOY TUBING PRODUCTS


Bourdon conduit



Ni-Span C Alloy 902, Monel Alloy K-500 and metal Alloy X-750 ar the foremost unremarkably such as for pipe tubes.
Superior offers these grades in ODs from one/8 through 1 1/8 in. with walls to .125 in. maximum; on top of 5/8 in., most wall is .035 in.

Thermo-couple Protection conduit



Generally laid out in Alloy-600, Monel Alloy four hundred, half-hour copper-base alloy, Nickel-200, and alloy C-276.
Sizes most typically used fall inside the vary of 1/8 to 1/2 in. OD with wall thicknesses.


Super Alloy conduit


Alloys HX, 188 C-276, L-605, 625, 702, 718, X-750, A-286, and Waspaloy ar the nickel alloys usually classified by the trade as “Super Alloys”.

Tubine for physics



36% Nickel-Iron Alloy minimizes the matter of thermal enlargement and contraction in lines handling N
Nickel two hundred and Monel Alloy four hundred ar terribly effective in handling liquid halogen
Alloy 600, metal Alloy X-750, Monel Alloy K-500 and alternative high-nickel alloys supply wonderful properties at low temperatures.

COPPER BASE ALLOYS


30% copper-base alloy



This nickel-copper (30%-70%) alloy was primarily developed to resist cavitation by steam and air mixtures in condensers.
It is extremely immune to many sorts of atmospheres and alkalies.
Has the lastingness of 70-30 brass and is well fancied. Used for economical fine-wire connectors, electrical contacts, rod ferules and guides, and gas action columns.

Beryllium Copper



This cold-drawn material contains one.80-2.00% Be, and nickel or atomic number 27 or each, .20% min.
Its greatest advantage is that it will be shaped whereas within the tempered  condition and, once heat treatment, develops high strength and hardness (C34-42).
Has a high strength-to-electrical-conductivity magnitude relation, wonderful spring stability, resistance to fatigue, wear and corrosion resistance.
Used for pipe tubes, electrical connectors, pc card sorting rolls.

Berylco 33-25



A free-machining Be copper alloy that retains all the physical and mechanical properties of Be copper, as well as fabricability, exceptional stability as a spring material, and wonderful resistance to fatigue, wear, and corrosion.
Where machining time is a vital issue, Berylco 33-25 offers a set advantage over alternative Be copper alloys.
Should cut back machining time by four-hundredth or a lot of.

REACTIVE AND REFRACTORY METAL CONDUIT


Unalloyed atomic number 22 A-40 conduit



The outstanding benefits of sunshine weight and extremely sensible corrosion resistance create this reactive metal ideal for industrial heat exchangers.

Titanium Alloy 3AI-2.5V



A high strength atomic number 22 alloy exhibiting wonderful malleability and cold workability.
Useful wherever strength-to-weight magnitude relation is very important.
Numerous applications within the region trade.

Titanium Alloy 6AI-4V



A high strength atomic number 22 alloy of high alpha-lean beta composition.
High strength-to-weight magnitude relation, wonderful corrosion resistance, sensible fatigue properties, and superior fracture toughness.
Readily machinable and weldable.
Particularly helpful in applications like structural material in aircraft/aerospace trade.
High resistance to brine corrosion.

Columbium and atomic number 41 Alloys



These refractory materials ar utilized in heat structural applications within the missile/aerospace trade, likewise as for fuel component protection functions.
The 1% Zirconium-Columbium alloy is accessible.

Tantalum and atomic number 73 Alloys



High temperature and corrosion resistance.
Ideal for thermocouple junction protection conduit use.
Also wonderful for handling chemical compounds of atomic number 17, chlorides, hydrochloric and azotic acids.
Tantalum alloy conduit is created on a development basis.

Molybdenum and Mo Alloys



Produced on a development basis in an exceedingly restricted vary of sizes and lengths.


ALLOY conduit thought-about FOR convenience BY REQUEST

Titanium Alloy 15-3



A beta atomic number 22 alloy exhibiting a strength-to-weight magnitude relation 2 hundredth over the quality alloy, cold-worked stress-relieved 3AI-2.5V atomic number 22 alloy.
The present elongations ar comparable.
This beta alloy is additionally abundant less notch sensitive than 3AI-2.5V atomic number 22 alloy.
Possible region applications like craft hydraulic line and engine conduit.
The alloy’s strength could also be accrued up to five hundredth by an easy age hardening treatment following fabrication.

Alloy 29-4C



A high purity ferritic stainless-steel having wonderful roughness and crevice corrosion resistance in high chloride environments like brine.
It usually has superior crevice corrosion resistance to alternative commercially out there unstained steels and represents a balance between corrosion resistance and economy.

Alloy 690



A solid solution-ed reinforced nickel base alloy having wonderful corrosion resistance to a broad vary of environments, each at close and elevated temperatures.

Alloy 2205



A duplex unstained having a fine grained micro structure consisting of regarding five hundredth solid solution in an exceedingly primary solid solution matrix.
The alloy is superior to 316 and 317 in several things and has double the yield strength of 304.

Inconel 617



A nickel-chromium-cobalt-moly alloy exhibiting wonderful heat strength and oxidization resistance.
Developed to be used in craft engines, thermocouple junction protection tubes and heater tubes.

Incoloy 825



A nickel-iron-chromium alloy containing Mo and copper to form it terribly immune to reducing environments like element or oxyacid.
It is conjointly immune to chloride stress corrosion.

1524 Steel



A high strength low alloy containing high Mn.
Useful for prime pressure fuel injection systems.

5% metallic element Steel



A low carbon five-hitter chromium/.50% alloy steel helpful for warmth money changer conduit.

9260 Steel



A high steel containing one.00% Mn and a couple of.00% atomic number 14.
It possesses properties of toughness and fatigue resistance.
The analysis conjointly points to a cost-effective alloy.

Ferralium



A twin section ferritic-austenitic stainless-steel which mixes high mechanical strength and malleability with outstanding corrosion resistance, particularly to reducing acids.
It is kind of like our alternative twin section alloy 2205.

29-17 (Kovar)



A nickel-cobalt vacuum dissolved flow enlargement alloy used for creating tight seals with more durable Pyrex glasses and ceramic materials.
It has found use in electronic applications like diodes and integrated circuits.




Please Click here for More Civil Engineering Updates

Concrete- Properties , Types and Mix

Concrete- Properties , Types and Mix
Concrete

Properties of Concrete

Segregation(parts or substances disperses)  in concrete is because of particle segregation in concrete purposes and makes use of, through which particulate solids tends to get segregated by high quality or property of variations within the measurement, density, form and different properties of particles of which they’re composed.The concrete stoop check measures the consistency of contemporary concrete earlier than it units.

The workability check(or stoop check) carried out to test the workability(the property of concrete to ease of compaction, transportation and pouring) of freshly made concrete or concrete combine. It may also be used as an indicator of an improperly combined batch.Simply outlined, stoop is a measure of the consistency of contemporary concrete.

The stoop check or check of workability is a quite simple and straightforward check. it the apparatuses The stoop cone is a proper round cone that’s 12 inches excessive. The base of the cone is eight inches in diameter and the highest of the cone is four inches in diameter.Bleeding in contemporary concrete refers back to the course of the place free water within the combine comes upward to the floor as a result of settlement of heavier stable particles comparable to cement and water. Some bleeding is regular whereas some extreme bleeding can create issues on concrete.

Make certain that the chilly climate concrete has been cured and don’t allow hardened concrete to dry out.

Keep ice from forming – Once ice is fashioned, the hydration stops and the power growth is intensively impaired. Fresh concrete frozen through the preliminary 24 hours can lose 50% of its power of 28 day power!

What Should be salary of engineers

Pouring Concrete vs Pouring Rain

If it rains in the course of the interval when the concrete is contemporary (about 2-Four hours after mixing), the entire floor ought to be protected(no rain drops ought to enter) from the rain. If the ending course of was just lately achieved, rainwater could not trigger any injury so long as it has not labored into the floor even and the slab is out of contact.

What is soil exploration in Civil Engineering

Grades of concrete

Concrete is acknowledged and designed  by its grades which is designed as M15, M20 and many others. by which letter M represents the concrete combine and quantity 15, 20 represents the required compressive energy (fck) of 150mm dice at 28 days  in N/mm2.

What is concrete explain?


What is concrete used for?

Concrete Honeycomb



Water cure:-Curing

The most important strategies of  curing of concrete is flooded, ponded, or mist sprayed. These are the simplest curing technique and strategies for the stopping combine from water evaporation. Make positive sufficient time is given to concrete for curing.

Water retaining methods:

Use coverings corresponding to sand, canvas, burlap, or straw which might be stored constantly moist.Other reactive penetrating sealers (silanes and siloxanes) and most high-performance coatings, corresponding to epoxies and urethanes, be certain these to be utilized solely after the concrete is absolutely cured (usually 28 days). Almost all sealers can used after the concrete hag achieved the age of  28 days.

The typical vary Taken is in between the vary of  9.5 mm and 37.5 mm in diameter. – Fine aggregates are normally sand or crushed stone that are beneath the vary 9.55 mm in diameter. Normally essentially the most usable widespread measurement of mixture which is utilized in development is 20 mm. 40 mm measurement of mixture is widespread in mass concrete.

The water–cement ratio is the ratio of the burden of water to the burden of cement used within the combine. A decrease water cement ratio outcomes the upper power and sturdiness, however it might trigger the combo troublesome to work with and type.

Workability might be resolved with the usage of plasticizers or super-plasticizers.Superplasticizers, also called excessive vary water reducers, are chemical admixtures used the place well-dispersed particle suspension is required.

The addition of superplasticizer within the truck throughout transit is a reasonably new improvement inside the business.A concrete combination ratio of 1 half cement, three components sand, and three components mixture will produce a  mixture of practically 3000 psi. the Mixing of water with the cement, sand, and stone will create a paste which can bind the components collectively till the combo is hardened.

Concrete honeycombing is normally brought on by just a few widespread components, together with: An absence of integrity on the perimeter type boards on the time the concrete is being poured.the uneven or not in correct ratio of cement to water ratio that outcomes poor workability concrete. Poor consolidation practices or inefficient technique of vibration.

Concrete- Properties , Types and Mix
Concrete honey combing


Concrete Mix Ratio

In order to fight this downside, footings are positioned 6 inches beneath the frost line. The frost line is the utmost depth the place the bottom stage will get freeze within the winter.  If the kinds are eliminated too quickly, the concrete can start to sag, crack and collapse, particularly if situations like temperature affected its energy.

The fineness of fantastic mixture (cement) is measured by sieving it on commonplace sieves. The proportion of cement of which the grain sizes are bigger than the desired mesh dimension is thus decided.Water–cement ratio.

Workability may be resolved with using plasticizers or super-plasticizers.Empty the combo right into a mortar tub or wheelbarrow and kind a despair in the course of the combo. Measure the really useful and required amount of water (every 80-pound bag of concrete combine would require about Three quarts of water). it will likely be the Pour roughly of  2/Three of the water into the despair.

If utilizing liquid cement shade, add to the blending water.Allow Proper Time to Water Cure. when the concrete is positioned or poured, the energy of concrete will increase in a short time in a interval of 3-7 days.

Concrete which is moist cured for 7 days is about 50% stronger than uncured concrete.Mortar is used to carry constructing supplies equivalent to brick or stone collectively. It is shaped of or composed of a thick combination of the components water, sand, and cement.The water to cement ratio is greater in mortar than in concrete in an effort to kind its bonding aspect.


Types of concrete

Workability may be resolved with using plasticizers or super-plasticizers.Sand is the most typical mixture additive to cement however it’s not the one choice. You can use many different aggregates together with crushed stone, gravel and chunks of previous concrete.

You can combine cement with out sand if you happen to use different aggregates.Cement is made by heating powdered limestone with clay. Cement is a element in mortar and concrete: mortar, used to bind or create bond between joints of  bricks collectively, is ready by including cement in sand and water combine.

Concrete is made by mixing cement with sand, water and mixture (crushed rock).Lime is used extensively for wastewater therapy with ferrous sulfate. The rocks and minerals from which these supplies are produced or generated, usually  limestone and chalk, are composed of calcium carbonate primarily.

Materials that has the sufficient amount of calcium compounds, silica, alumina and iron oxide are crushed,  screened and positioned in a rotating cement manufacturing kiln. Ingredients used on this course of are usually supplies akin to limestone, sandstone, marl, shale, iron, clay, and fly ash.Empty the combination right into a mortar tub or wheelbarrow and type a melancholy in the midst of the combination.

If utilizing liquid cement colour, add to the blending water.On common, the price of putting in a cement slab can run between $three and $12 per sq. foot of area. However, that quantity could also be larger or decrease relying on whether or not the terrain wants in depth work beforehand, the concrete thickness is uncommon or the house owner helped put together the positioning.


What is structural Engineering

CONCRETE MIXING RATIOS


Another “old rule of thumb” of blending concrete ingedients is 1 half cement : 2 half sand : three half gravel by quantity. Mix correctly(in order to get uniform combine) the dry substances and slowly add water into the dry combine till the concrete is workable.

This combination might must be modified relying on the mixture used to supply a concrete of the fitting workability.Concrete is a heterogeneous (composite) materials consisting of cement, water, advantageous aggregates and coarse aggregates.Otherwise it’s a heterogeneous materials.

Cement could also be known as a homogeneous materials. But concrete is just not.Concrete Language. Abstract phrases denotes the intangible qualities, virtues, concepts, and ideas. These phrases reveals issues we all know solely by our intellectul thoughts, like “truth,” “honor,” “kindness,.” Concrete phrases check with tangible, qualities, virtues , properties or traits, issues we all know via our senses or data.

The Concrete is usually ready with these three primary elements: water, combination (rock, sand, or gravel) and cement. Cement, acts as a binding agent when it’s combined with water and aggregates.

The water causes the hardening and setting  of concrete combine via a course of known as hydration of cement. Hydration is a chemical response between cement,water and combination through which the foremost compounds in cement type chemical bonds with water molecules and turn out to be hydrates or hydration merchandise.

The particles in a mix are nonetheless composed of components and compounds, however they don’t seem to be all equivalent.Cement is a mix as a result of it’s composed of various kinds of compound particles.


STRUCTURAL ENGINEERING

STRUCTURAL ENGINEERING




STRUCTURAL ENGINEERING


Problem-Solving Through Creative Approach in Structural Engineering
Structural Damage Assessments

In forensics, the knowledge and experience of all of us of structures plays a key role to understand how  environmental events and weather, building usage and gravity can affect the life of a structural part or the whole structure.

Experience and knowledge of structural engineering has reflected and shown also to us how construction and installation defects, deferred maintenance and substandard materials can result in any loss or damage.

What is structural engineering exactly?

Building defects and deficiencies become more evident after weather and environmental events, such as flooding, tornados, and hurricanes. For example, wooden structural parts that has been exposed to long-term or repeated moisture contact may be structurally damaged from rot, microbial growth, potentially resulting in failure during what would otherwise be considered a non-damaging event.

Every region of the United States has its own geographical and climatic distinctions. The expert professionals at Stephens Engineering are well informed of the unique variables in construction and structural stability in your specific region.

Our professionals are knowledgeable in the building practices and process that results in sound construction and can investigate and identify construction defects readily. From years of experience, we understand the complex factors that need to come together to achieve a sound structure. We are uniquely qualified to complete structural-related damage investigations.

What is the work of structural engineering?

What are the basic structural elements?

You must Read about The Salary of Engineer

Flood Damage Investigations

Flood damage is a serious problem…one that needs to be addressed quickly and accurately. The experts at Stephens Engineering are experienced in investigating various types of structural- and foundation-related damage due to flooding. Flood damage investigations typically involve observation and assessment of the various building components
(foundations, pilings, framing, roofing and claddings, and inundated materials) that may have been removed, displaced or structurally compromised by the flood event.
Whether the damage is solely flood related or we are deciphering between flood vs. wind damage, we are prepared to evaluate the root cause and timeline of the damage.

What are the 3 types of structures?

What are examples of structure?

Building construction and process

Structural Collapse Examinations

Whether due to design or construction deficiencies, extreme wind loads from tornados and hurricanes, storm surge, earthquakes, tree or vehicle impacts, soil movement, material defects, decay/corrosion, or maintenance deficiencies, the Stephens Engineering experts can determine the proximate cause of the structural failure or collapse.
We primarily focus on the cause and extent of the damage and provide repair recommendations, if necessary. Each report is illustrated with photographs. Our report will locate and describe the claimed and unclaimed damage on the property and articulate a precise opinion based solely on the discovered evidence and research.


Construction Defects

The International Risk Management Institute (IRMI) defines a construction defect as “a deficiency in the design or construction of a building or structure resulting from a failure to design or construct in a reasonably workmanlike manner, and/or in accordance with a buyer’s reasonable expectation.” Deficiencies can result from design errors and/or omissions, the installation of defective, damaged, and/or inferior products or materials, and/or substandard workmanship.
Construction defects can cause physical damage to people or property or financial losses in the form of loss of use or value and/or increased expenses.


Roofing Damage

Stephens Engineering performs roofing damage assessments on residential and commercial buildings for all types of roofing (asphalt shingles, modified bitumen, roll roofing, metal, clay and concrete tile, EPDM, TPO, built-up roofing, and more).
From low-sloped roofs to elevated high-pitched roofs, our engineers can identify the difference between weather-related damage (hail and wind), installation defects, animal or man-made damage, new vs. old damage, or age-related deterioration.

Real Estate Foundation Inspections

Stephens Engineering Consultants, Inc. provides commercial and residential foundation inspections and assessments. Having a foundation inspection by an experienced structural engineer with help you to understand the real causes behind the damage and provide recommendations for remediation.
We know that a foundation inspection needs to be completed with great care and attention. For this reason, our foundation inspection service goes beyond the common “Level A” offered by home inspectors. In addition to a thorough visual inspection of the structure and foundation, our “Level B” foundation inspection includes:
  • A thorough, detailed foundation assessment that is accompanied by a computer-generated sketch of your foundation;
  • Interior observations of your interior floor plan, walls, and other areas;
  • Exterior drainage and damage inspection;
  • Review of the exterior landscaping and vegetative growth as it pertains to foundation performance;
  • A clear conclusion of our findings that is supported by quality photographs;
  • Engineering recommendations, if necessary, to assist with decisions concerning the best course of action.

salary of engineer-Best Salary Engineering job

salary of engineer-Best Salary Engineering job

Which engineering has highest salary ?


What are the 6 types of engineers?


Types of highly paid engineering job

There is a common that it requires 4 lines of work to be balanced for the well existence of the world. They are namely; Medicine, Arts, Law and Engineering. The closer your profession to these categories, the more you will earn and the more important you will be to the society; period. When it comes to engineering, you can comfortable say that every other thing that you utilize on daily basis are invented by engineering. That’s why you should consider doing engineering.

Here are 7 careers under engineering.


1-Building engineering



Have you always had a love for building skyscrapers? Does your definition of aesthetic includes a lot of buildings? If so, building engineering or high riser engineering is the profession for you. Being the textbook interpretation of the concept engineers, you will be able to earn a fortune if you were a committed person in this line of work.

What do building services engineers do?


What do you call a building engineer?

Still there is huge opportunity in the field of building engineering, as In the developing countries a lot of infrastructural development has to take place,

What is a building engineer salary?

The Salary of Building Engineers is Different in Various countries if we talk about united states the average salary for building engineers $70780 as of June 30, 2020. the salary vary between the rang of $61000 to $83300 per year,The range of salary whatever a building engineer may be receiving depends on many factors such as educational qualification, certifications, additional skills, number of years of experience he have etc.

How much does a building engineer make an hour?


What qualifications do you need to be a building services engineer?

And if we talk about the salary of building engineers in India, the salary is maximum 40 k INR per month in starting if he has degree in engineering from any reputed college of IIT, if he has diploma in engineering then the maximum salary is not more than 22 K INR per month, salary vary in the range of 30 to 40 K INR per month, for Degree holders,

salary of engineer-Best Salary Engineering job

2-Highway engineering


A country’s infrastructural facilities decide the economic growth and existence of the country. Roads of all types are one such component. Being well, qualified in this line of work will immensely be beneficial since the world doesn’t stop developing itself.

Why do we need to study highway engineering?

There is a lot of scope of highways in developing countries like India,Even Developed countries also are spreading the network of highways continuously for better connectivity and development,

The Salary of highway Engineers is Different in Various countries if we talk about united states the average salary for highway engineers $70500 per year as of June 30, 2020. the salary vary between the rang of $60000 to $82500 per year ,The range of salary whatever a highway engineer may be receiving depends on many factors such as educational qualification, certifications, additional skills, number of years of experience he have etc.

What do highway engineers do?

And if we talk about the salary of highway engineers in India, the salary is maximum 39 K INR in starting if he has degree in engineering from any reputed college of IIT, if he has diploma in engineering then the maximum salary is not more than 21 K INR per month, salary vary in the range of 35 to 40 K INR per month, for Degree holders,

salary of engineer-Best Salary Engineering job

3-Hydraulic engineering

Just like how the majority of our body is made out of water, the world cannot live without water. That’s why hydraulic engineering is a line of work where you can earn a lot while helping the development of the country. This involves the designing and maintenance of dams and things like that; they are quite interesting to learn.

What is the study of hydraulics?


Why is hydraulic engineering important?

The Average salary for hydraulic engineers is near about $ 55000, it ranges in between $53000 to $ 57000, and the minimum salary and an inexperienced individual is approx $ 37000, while the highest salary in approx $ 109000, The salary Varies depending on various factors such as described above.


What do you call a water engineer?


In The current times there is a big issue of conserving the water, That is why there is great opportunity in this field for the professionals,


An aptitude for engineering and a vision that would help in effective management of water resources would be the most essential skills. Good business acumen, excellent project management skills, ability to work under pressure, good planning and organizing skills are some of the other qualities which will be of great help. He/she should be able to demonstrate a strong sense of responsibility, commitment, and dedication.


The most useful ans essential skill for a hydraulic engineer is an greater aptitude for engineering and a great vision, project management skills, being able to work under extreme pressure, better planning skill, better organizing skill and ability to understand all the technical and practical terms, these are the skills which helps an individual for better career growth,

salary of engineer-Best Salary Engineering job

4-Mechanical engineering



Mechanical engineering is yet another field that has many sub branches in it. This is where you would learn about all the turbines, engines and everything where there cogs and whatnot. If you are into detailed mechanisms of vehicles, and heavy machinery, this is an amazing field to get yourself into.

Is mechanical engineering a stressful job?

There are many streams and function in mechanical engineering such as Design, construction, study, development, production, testing and inventing mechanical tools, engines, Machines, thermal sensors and devices, for fulfilling the human needs.

What the mechanical engineers do?


Is Mechanical Engineering a good career?

There are many branches in mechanical engineering such as automobile engineering, Power plant engineering, manufacturing engineering etc.

What are the types of mechanical engineering?

Mechanical engineers has to work in offices generally but many times they have to go for visit the sites also to check and solve the issue if any occurs,In Construction industries the mechanical engineers has to spent half time on sites to maintain the productivity and better utilization of equipment, working on sites.

Generally mechanical engineers need Bachelor’s degree in mechanical engineering stream or mechanical automobile engineering.

There is a anticipated statics that the growth in mechanical engineering will be 9 % in the period of 2016 to 2026 according to Bureau of Labor statistics.

According to Bureau of Labor statistics reports the income of Mechanical engineers in mid 2016 was $ 84195 Per year, in current time the salary of Mechanical engineers is minimum $ 700000 Per year.


5-Mechatronic engineering



This line of work is a combination of electronic and mechanical engineering in the right amounts. If you have found yourself to be interested in robotics and even nanotechnology, this is the best field for you. You just could end up as the first engineer to construct a Transformer robot!

What mechatronic engineers do?


What should a mechatronics engineer know?

Mechatronics Engineers or Specialist have to work with designing control systems, Control systems for bottling or packaging of edible products, Massive industrial robots, prototype developments etc.

Is Mechatronics Engineering in demand?


Is Mechatronics Engineering a good career?

 Mechatronics Specialist have different job titles as following.

➱Service Engineer.
➱Instrumentation Engineer.
➱Systems Engineer.
➱Data Logging Engineer.
➱Software Engineer.
➱Control System Engineer.
➱Automobile Engineer.
➱Project engineer.

What are the subjects in mechatronics?

What is Mechatronics Engineering salary?

The Average Salary of Mechatronics Specialist is Approx $ 88800 Per year, and The Highest Salary is Approx $ 103380 Pers Year, This Data is As per the site Recruiter.

6-Electrical engineering



The world is in dark without electricity. In fact, electricity is what keeps the world running. The demand for electrical engineers will simply never go down since every day new projects start and every day huge power plants needs to be looked after.

The Salary of Electrical Engineers is also As per Mechanical engineers, Which Depends on Experience, Qualification, Skills, Etc.

What is the average starting salary for an electrical engineer ?


What is the highest salary for a electrical engineer?


Is Electrical Engineering a good career?


What skills do electrical engineers need?


7-Automobile engineering

If you’re a motor head, choosing this side of engineering will help you to educate yourself on the things you love. The demand for automobile engineers will always be high because the world of cars doesn’t die ever, so will your source of growing income.

Which course is best for automobile engineering?

What is the scope of automobile engineering?

Please click here for more updates

Ductility, Ductility Test of Bitumen,

Ductility, Ductility Test of Bitumen
Ductility Test of Bitumen

What is ductility test ?

Ductility Test of Bitumen -Definition

Distance of Elongation(Length of elongation) In centimetres to which the bituminous material gives before breaking when the briquette specimen of that bituminous material is pulled at a specified temperature and at a specified speed.

Ductility Test of Bitumen

The purpose of the Ductility test of bitumen is as follows:-

➱To know and measure the Ductility of any Bituminous sample or specimen.

➱To know the suitability of the material Wherever (Road or other Construction) Works it is going to be used.

Which factors may affect the value of the ductility Test of bitumen?

Apparatus For Ductility Test of Bitumen

1- Testing Machine➱

The testing Machine for Ductility is Designed in such a way for pulling the Briquette of bituminous material apart, In This machine The Specimen is Submerged in water continuously While Both side clips are pulled apart Horizontally at a uniform speed of 50 + or – 2.5 mm per minute.

Ductility, Ductility Test of Bitumen
Ductility Testing Machine

You must Read What is Soil Exploration and Soil Investigation

What is the maximum value of the Ductility Test of Bitumen?

2- Briquette Mould➱

A Mould Made of Brass is used, At both Ends of the mould Circular holes Are Made To grip The Fixed and Movable Ends Of the machine These Circular holes are called Clips, The Dimensions of the Briquette specimen After the mould is Properly assembled are as follows.

➱The Total Length is 75.0 ±0.5 mm.

➱ The Distance Between the Clips is 30.0 ±0.3 mm.

➱ Width at Mouth at clip 20.0 ±0.2 mm.

➱Width of Briquette at minimum cross-section 10.0 ±0.1 mm.

➱Throughout Thickness 10.0 ±0.1 mm.

Ductility, Ductility Test of Bitumen
Ductility testing machine with briquette mould

What is bituminous or Asphalt layers and Asphalt

3- Water Bath➱

A Water bath Preferably with a thermostat and a minimum capacity of  10 liters is used. It Maintains the Specified Testing temperature of 27.0 ±0.1 ℃.

4- Thermometer➱

A thermometer with a Capacity of 250 ℃ is used. Which can Read The temperature up to 0.01℃.

Principles of Ductility Test ➱

The Ductility test is performed as per standards in IS Code 1208-1978.


While Designing flexible pavements in road works, The Most essential and important factor is that the binder or the bituminous material should create a thin and ductile film all around the aggregate so that the physical interlocking of the aggregate gets improved, the ductility test of bituminous material gives the adhesive properties of bitumen and it’s the ability to get stretched.

The Distance in centimetres between two ends of a standard briquette specimen After elongation before breaking in Bituminous material due to being pulled apart at a specified temperature and speed is called the Ductility of That particular bituminous material.

If The binder material used in road construction has less ductility than specified, it will get cracked when it is subjected to repeated traffic loads. and will give a pervious pavement surface.

Ductility, Ductility Test of Bitumen
Laying of flexible pavement

What is the Wet mix macadam Layer and How is it Constructed

Procedure of Ductility Test➱

➱The Ductility test shall be conducted at a temperature of 27 ±0.5 ℃ and at a rate of pulling of 50 ± 2.5 mm/minute ( This Temperature and rate pull is taken in normal testing unless otherwise specified)

➱Melt the bitumen to be tested to a temperature of  75 to 100 ℃ above its approximate softening point till it becomes fluids.

➱Assemble the mould on a brass plate and coat on all the sides with a mixture of glycerin and dextrin of equal parts to avoid sticking of the material.

➱Fill the mould until it is more than level full.

➱In filling the mould, pour the material in a thin stream back and forth from end to end of the mould.

➱Leave it to cool at room temperature for 30 to 40 minutes and then place it in a water bath maintained at a specific temperature for 30 minutes.

➱Cut off excess bitumen by means of hot straight-edged putty knife level full.

➱The Brass Plate and mould with briquette specimen will be placed in water after cutting the excess bitumen and it will be kept at a specified temperature for about 85 to 90 minutes.

➱Remove the briquette from the plate, detach the sidepieces and test the briquette immediately.

➱While the test is being conducted, make sure that the water in the tank of the testing machine covers the specimen above by at least 25 mm and is maintained continuously within ±0.5 ℃ of specified temperature.

➱Attach rings at each end of the clips to the hooks in the testing machine and pull the two clips apart horizontally at a uniform speed as specified until the briquette raptures.

➱Measure the distance in centimetres through which the clips have been pulled to produce rapture.

➱At least Three determinations shall be made for each test.

 Report ➱

➱Report the average of three normal tests as ductility of the sample, providing that, the three determinations are within ± 5 % of their mean value.

➱If the Value of three determinations does not lie within ± 5 % of their mean value but the two higher are within ± 5 % of their mean value, then record the mean of the two higher values as the test results.

Precision➱

➱The Duplicate test results should not differ by more than the values Given Below (For Road work).

Repeatability  Reproducibility
10 % of mean value 20 % of the mean value

Precautions In Ductility test➱

➱In the Filling of mould care shall be taken to see that no air bubbles shall be formed, and not to disarrange the parts and thus distort the briquette.

For More Updates on Civil Engineering Click Here

Soil Exploration – Types and purpose,Soil Investigation

Soil Exploration - Types and purpose,Soil Investigation

Definition of Soil Exploration➪

➱Collecting data from site or field, Testing in laboratory and investigation of the samples collected for the purpose of design, and construction and structures is called the soil Exploration.

➱Many aspects , choice of foundation, settlement analysis of soil, the bearing capacity of soil and all other properties depends on various engineering properties of soil.

 these properties are to be determined by some field as well as the laboratory test . So, the here in this post,we will discuss mainly on the field test those are conducted to determine these required properties.

Soil Exploration - Types and purpose,Soil Investigation

What is the purpose of soil exploration ?


What detailed exploration ?.

The primary objective of a soil exploration are-

➱Determination of the nature of the deposit of the soil, depth and the thickness of the each soil layer Strata,

  As we know that soil is a layered material . So, what is the thickness of each layer and at what depth it starts and end. all of  these the information are necessary for designing a foundation .

➱The Determination of the Engineering properties of the soil and rock strata that affects the performance of the structure.

➱Determination of the in-situ properties by performing field tests.

Soil Exploration - Types and purpose,Soil Investigation

You must read about The building Construction process and Materials

Soil Strata Required➱

Soil Profile➱

➱The thickness of layer, the soil identification, the starting and the end date of the each layer is also very much important.

 Index properties➱

➱water content, atterberg limit etc.

The strength and comprehensibility characteristics-

➱Friction angle(phi), compression index (Cc), OCR (Over Consolidated Ratio).

What is OCR➱

The over consolidated ratio- I have mentioned about the normally consolidated soil and the over consolidated soil . for the over consolidated soil this OCR value is taken as 1. Because in the normally consolidated soil, you have the present stress which is greater than the maximum past stress, which is soil is experienced .

So, here we assume that for the normally consolidated soil, this OCR value is 1, but for the over consolidated soil where the present stress is less than the stress,which the soil is already experienced , here this ratio is the past maximums experience stress of the soil divided by the present stress that we are applying .

 So, I have already discussed that how we can determine the maximum past effective overburden stress or maximum past stress, that soil is experienced by casagrande  method, we can get that value from e log p curve, and applying the Casagrande method we can determine what is PC . So, that PC is the past maximum effective overburden stress that this soil is experienced.

The ratio between the maximum past stress the soil is experienced and the present stress.

➱Others things (the water table depth),

What are the methods of soil exploration ?

The direct method – test pits➱

➱The test pits or trench are open type or Accessible open type of exploratory method,

➱The soil can be inspected in it’s natural condition.

So, we can Obtain the soil sample from the site itself and those samples we can use to determine the soil properties in the laboratory.

The soil samples can be brought to the laboratory and for determining the properties of the soil.

➱The test pits are suitable up to 3 meters depth(very small depth) and the cost of the this increases proportionally with depth.

➱When The depth of strange is increased, Providing lateral support is must that is why the cost of this is increases with the increase in depth.that is why this method is suitable for sample small depth only up to 3 meter,

What is bituminous layer or Asphalt layer

Semi direct methods – boring➱

➱Boring we have to do, to collect the soil sample for a particular specific depth and those soil sample we use for our laboratory test to determine the soil properties. Sometimes these boring are also required to conduct the field test for a particular depth .

What are the different types of exploration ?.

➱The common methods of boring are

➮Augur boring,
➮wash boring,
➮rotary drilling
➮and percussion drilling .

What is Wet mix macadam layer

 Auger boring ➱

➱This soil auger(a device) we use for the advancing of a borehole in construction of a bore hole in the ground, it will also use to collect the soil sample and those soil samples we use for the laboratory test.

➱Auger may be hand operated or powered even If it is the hand operated then we can use it for relatively small depth up to 3 to 5 meter. If it is a power driven, then we can use this method up to a greater depth up to 60 to 70 meter in case of continuous light auger. Boring can be done up to 60 to 70 meters if The augur is a power driven augur.

➱Auger boring is easy and useful in case of partially saturated sand silts and medium to steep cohesive soil.

Soil Exploration - Types and purpose,Soil Investigation
Soil Exploration - Types and purpose,Soil Investigation

What is Granular Sab base layer (GSB Layers)

Wash boring➱

➱wash boring is generally used below the ground water table for which the auger method is not useful or suitable.

➱This method may be used for all kind of soil except those mixed with gravel and boulder .

➱A casing pipe is pushed and driven into the soil with the help of drop weight;

Soil Exploration - Types and purpose,Soil Investigation

 Rotary drilling➱

➱This is can be used for sand clay and rock (unless this is badly fissured),

➱This is very fast method,

 ➱Even rock course may be obtained by using a suitable diamond  drill bits.

Soil Exploration - Types and purpose,Soil Investigation

Percussion drilling➱

➱This method cannot be used for loose sand and is slow if this process is low in plastic clay,

➱The formation gets badly disturbed by impact .

Soil Exploration - Types and purpose,Soil Investigation

What is Consistency test of Cement

For More Updates please visit The main site

find more updates on civil engineering

Building Construction – Process, components and materials

Building Construction - Process, components and materials

In this post, we will study Building Constructionstep-by-step process and  building components,

Building Construction - Process, components and materials



BUILDING CONSTRUCTION PROCESS

Building a construction step involved in any type of construction is not an easy task perhaps it requires lots of effort and investment for building construction requires lots of time and it is tedious work yet its result is a permanent asset for us therefore care should be taken in Building construction process before planning Building construction projects must consider important aspects like the purpose of construction, utility, financial proficiency the demand for work, etc.

Construction of residential building required following paperwork before the start of actual construction.

These steps are of pre-construction phase➱

➱To acquire lend or plot.
➱Preparation of drawings as per requirements of consumers.
➱Estimation of material cost, labor cost and contingencies.
➱Approval of drawings and estimates from client.
➱Approval of drawings from City Development Authority.
➱Start of construction work either through contractor or laborer hired on daily basis.
➱Marking of plot boundaries.
➱Cleaning of plot.
➱Preparation of site layout as per drawing.

 To acquire lend or plot For Building Construction➱

➱It is the most important step in building construction.
➱Search for the location for the building which is best suited for building construction purposes.
➱Be careful while selecting land which has all the desired facilities available nearby and should be free from all land related issues.
➱It is suggested that do prior data collection before buying land or plot either by doing research online or seek help from real estate agents or concerned persons regarding the effective cost of the same.

 To seek technical help In Building Construction

 After selection proper land for Building Construction take the help of a Well known architect to make available building designs and drawing and take his/her Suggestion.

An architect will prepare the plan as per  requirement of building ,number of flats shops, According to your requirements and budget.

Then the Architect will meet and consult with An Engineer to get the details of the reinforcements and other materials to be used.How deep the foundation is going to be, width of pillar etc.

Preparing estimate and budget➱

The construction of a building Consumes a big amount of material and money. after, planning and structural detailing completed these details are transferred to the building estimator.

The building estimator will estimate the material quantity quantity of different items of work, and prepare an abstract sheet that shows the cost of building construction. if financial resources are limited we need to seek pre-approval for loans in advance or else you may end up in a cash crunch situation.

Permission from authorities For Building Construction

This is important work to do after the project is ready to be executed for that we have to take permission from the local municipal body before you could go for the construction.

Following are the list of document project required before applying for permission this document may differ from state, to state but some are essential for every building construction work.

➱Land survey:➮ survey of the land has to be carried out with the help of an authorized land surveyor.
➱Soil test report of the land.
➱Land documents.
➱Architecture / elevation / sectional drawings.
➱Structural report.
➱Architect certificate of undertaking on record and certificate of the undertaking of civil engineer on record.

Approach a builder For Building Construction➱

A builder or contractor for Building Construction must be chosen carefully because it is a mature for securing building construction quality and timely construction of work.

Pre-investigation must be done about the builder before handing work in the contract document, all the work related details must be clearly stated.

The Layouts and works details along with methods of payments time, cost and scale should be covered,

All The terms and conditions of contract should be check deeply before finalizing the deal of contract.

You must Read The Details about Pile load test click here

Building construction steps

During Building Construction steps:➯
➱Site preparation or leveling work.
➱Excavation and PPC.
➱Foundation.
➱Plinth beam or slab.
➱Superstructure column.
➱Brick masonry work.
➱The lintel over door window gaps.
➱Floor slab or roof structure.
➱Door window framing and fixations.
➱Electrical and plumbing.
➱Exterior finishing.
➱Terrace and roof finishing.
➱Internal finishes.
➱Woodwork and fixture fittings.

 Site preparation or leveling For Building Construction

The construction site must be cleaned before the work is executed. this work involves the removal of roots of trees, debris and leveling ground area,

Earth work ➱

Generally excavation is carried out for the construction of wall foundations excavation should be carried out as per the drawings defined lengths and widths. after excavation, layout the foundation and back fill the remaining excavated area around foundation with soil.

In Residential buildings the floor levels is kept higher than the natural ground levels, Soil will be filled up to floor l levels and compacted,

Building Construction - Process, components and materials
Building Construction - Process, components and materials

Excavation and PCC➱

Excavation of foundation of building will be done with help of machines as per dimensions and measurements available in the drawing.

After Excavation, The Excavated area will leveled as per requirement and PCC (Plain Cement Concrete) Layer will be Laid Before Fixing the Reinforcements,

Foundation➱

The Base of the building is supported in the Lower most part of the building which is “foundation”.And the Foundation is directly connected with The earth soil. a building is load transferred from the superstructure to the soil and needs to be extremely strong to handle the load.


When the PCC layer is laid , The reinforcement work for foundation is started, After reinforcement is fixed , the bottom level must be checked before concreting, and The Gap between the foundation will be filled with earth soil.

Concrete work in foundation in Building Construction

It is too much necessary to check the levels of foundation prior to concrete. level the foundation base to same level now pour the concrete as per drawing specifications. Normally the concrete of ratio 1 : 4 : 8 is used for foundation, sometimes it is even Used the ratio of  1:5:10 or 1 : 6 : 20.

Here 1 : 4: 8 means,

1 Part cement per cubic
4 Parts of sand per cubic
8 Parts of coarse aggregates,

Depth of foundation is generally 9″ to 18″ and in the maximum cases it is taken as 12″. The foundation width is equals to the depth of foundation.

Damp-proof course (D.P.C)➱

To protect walls from moisture, a layer of damp proof course material is laid down at floor level. i inch thick concrete layer is used. material of damp-proof course layer consists of concrete ratio 1 : 1.5 : 3 with a mixture of waterproof material 1 kilogram per bag.

Plinth beam and slab:➮

After the foundation work is done ground beam form-work preparation is started and poured with concrete.over the plinth beam, masonry work is started.

Superstructure -column:➮

The superstructure is the portion above the plinth level of the building the main component of the superstructure is a column and beam.

Brick masonry work InBuilding Construction

➱

After Column and beam frame work is complete, Masonry works will be started with defferent materials like bricks, concrete ,blocks fly ash bricks etc. As per building drawing.

➱Masonry work is done using a cement mortar mix.
➱It is a mixture of cement and sand.

➱Masonry work is carried out with cement mortar.
➱Cement mortar is a mixture of cement and sand.
➱Ratio of cement mortar varies from 1 : 4 to 1 : 6 here 1 : 6 mean one part cement and 6 part of sand.
➱Dampen about 25 bricks with a hose pipe and clean away all loose dirt from the top of footing and moisten about a meter of surface at one end of the foundation with the hose pipe.
➱Throw a Matar line just behind the threaded level line and lay bricks on the mortar bed.
➱Make sure bricks exactly follow the threaded horizontal level line.

The lintel/door window gaps➱

➱The lintel is constructed on the door and window to support the masonry work over it . after this further masonry work is done.
➱Masonry work of buildings is carried out in one go till roof.
➱Openings for windows and doors are left during masonry Works.
➱Reinforced cement concrete beams are laid down on the top of openings so those loads of structure above openings not directly come on to the door frames.

Roofing➱

Roof slab of building is poured after completion of masonry Works nowadays roofing is of reinforced cement concrete slab.

Slab thickness and reinforcement details should be according to approved drawings.

Floor slab or roof structure in Building Construction➱

Then the form-work is started to construct slab resting on the column and beam. over slab form-work, slab reinforcement is placed as per slab detailed drawing.

Door window framing and fixations➱

After that door window frames are fixed at their specified position given in drawing.

Doors and windows➱

Traditionally, doors and windows of woods are used but steel and aluminum is also not a bad choice.

In case of wooden doors and windows, frames are fixed in walls during masonry work. panels are then fixed with hinges after plaster work.

Electrical and plumbing in Building Construction➱

Electrical and plumbings are fixed in the walls and slabs in such a way that they are concealed and not visible. after the finishing work is done. the point and pipe and left out such that later they can be finished with the electric fitting and plumbing fixtures.

Exterior finishing➱

Once this work is completed external plastering and finishing work is started waterproofing is also done to prevent rising dampness in the wall external cladding can also be done to enhance the elevation of the house.

Plastering and pointing:➱

Form-work will be  removed only after 14 days of casting of slab After removing Form work plaster work will be started, mortar for plaster work is normally of 1:3 or 1:4 to be used, thickness of plaster layers should not be greater than 0.75 inch cure the surface about 7 days so that plaster gain proper strength.

Terrace and roof finishing in Building Construction➱

On top of the slab waterproofing is done to prevent any leakage in the slab. generally, terrazzo tiling is done to prevent the slab from a weathering effect.

Internal finishing➱

Internal walls are plaster with smooth finish and flooring is done with tiles later on the walls are painted or textured.

Woodwork and fixture fittings➱

After completing the above work the furniture work will be started. side by side electrical fitting, switchboard, and plumbing fittings are complete in the bathrooms and kitchen areas too.

The final and the last process ofBuilding Construction is interior decoration work. Proper furnishing and fabric is used to complete the Building Construction.

Services➱

There different types of services which provide are as following-

➱These are electricity supply, gas supply, water supply, sanitary etc Conduit’s for electric supply are fixed in walls before plastering.

➱Similarly water supply and sanitary lines are also laid before pouring of building floor note that gas lines are not fixed in walls or slabs.

➱Gas line remains open in air.

Structural components of the building and their standard dimensions➱

The structural components or essential elements of any building. without this structural building not able to stand and sustain its position on the ground. These components systems provide strength, stability, support and durability guarantee in structural component systems.

What is High performance concrete click to know

Following his list of building components➱

➮Foundation
➮Plingth
➮Earth filling
➮DPC(damp-proof course)
➮Flooring
➮Walls
➮RCC column
➮Sill level
➮Lintel
➮Ceiling
➮Chhajjas
➮RCC beam
➮Roof or slab
➮Doors
➮Windows
➮Parapet walls
➮Waterproofing on terrace
➮Coping

Building Construction - Process, components and materials

Structural components of building➱

Foundation➯

A foundation is the lowest part of building structure rested on soil below ground level. all loads of building transferred to foundation through beam and column arrangement. its main function is to distribute the load evenly and safely to the ground.

In frame structure, footings are generally used as the foundation to support the structural load of the building.

Building Construction - Process, components and materials

Following our various types of foundations and footings used in Building Construction:

Shallow foundation➯

➮Individual footing or isolated footing
➮Combined footing
➮Strip foundation
➮Raft or mat foundation

Deep foundation➱

➮Pile foundation
➮Drilled shafts or caissons

Standard dimensions:➱

Foundation size depth totally depends on the structural and site ground condition so there are no standard dimension commendations for it.

But for small structures like rowhouses depth of the foundation should be at least 1.5 m from ground level.

Plinth level➱

The plinth level or plinth is the offset created between ground level and the superstructure of the ding. it is made by constructing a brick wall from ground level to the ring level of the building.

Its main function is to prevent the entry of moisture from the surface to the building superstructure.

Standard dimensions➱

Plinth height of any building must be at least 45 centimetres from the ground level.

What is Standard Proctor compaction test of soil

Earth filling➱

An earth filling or soil filling is done between the plinth wall. it is essential to fill the open space left between the ground level to the plinth level earth filling must be very well compacted. so that the flooring gets sufficient hard surface base.

Standard dimensions➱

Earth must be filled to the top of the plinth level different materials can utilize as Earth fill like soil, coarse aggregate, waste materials brickbat etc.

DPC(Damp-proof course)➱

DPC is a lighter of waterproofing materials such as asphalt or waterproof cement at the plinth level the superstructure walls are constructed above the DPC layer so that no dampness rises from the ground surface into the walls.

In sort, DPC present the rise of water to superstructure if dampness rises in the wall of the superstore it reduces the strength of the walls and creates unhealthy living conditions. also it created defects in paint and plaster and ultimately increase maintenance cost.

In the case of plinth beams are provided above ground level DPC is not required because plinth beam itself performs as a DPC layer to restrict the entry of dampness.

Building Construction - Process, components and materials

Standard dimensions➱

generally, DPC is late on brick masonry construction up to the plinth level so the width of DPC is the same as the width of the brick wall and thickness may vary from 2.5 centimetres to 5 centimetres.

Flooring In Building construction➱

Flooring is an important component of the home it is one which provided an attractive and pleasant look to the house flooring is made by laying tile on it.

There are different designs and materials are available to make flooring.

➮Timber flooring
➮Laminated flooring
➮Vinyl flooring
➮Porcelain or ceramic tile flooring
➮Natural stone flooring marble granite etc.

Standard dimensions➱

Flooring is provided above earth filling with base made of cement concrete 1 : 2 : for flooring material should have sufficient thickness and strength.

Walls➱

Walls are the vertical component in any structure it can be constructed using stones, bricks ,concrete blocks etc the different types of bonds are used for constructing walls .bricks walls are essential to enclose the inside area and protect against wind, sunshine, rain, etc. doors and windows are provided in the walls for ventilation and access to the building.

Standard dimensions➱

walls may be made single brick walls or double brick walls the single brick wall has a thickness of 100 millimetres in the double brick wall has a thickness of 230 millimetres.

RCC column➱

Columns are vertical members constructed to support any structural frame load coming from the slab, beam transferred to column and column transfer a load to the footing safely.

Building structure may have two types of columns architectural columns and structural columns architectural columns primly used to increase the aesthetic appearance of building while a structural column takes the load coming from the slab above and transfers safely to the foundation.

Standard dimensions➱

column may have various sizes as per the structural load requirements but for minimum dimension for any structural column is restricted to 9 X 9 or 225 mm X 225 mm.

Building Construction - Process, components and materials

Sill level➱

It is the base point of any window in the house or it is a level where windows are placed. sill level is very important to ensure evenness in all window level sill is a height which is ensuring that the proper amount of light enters in the house it also provides easy to habitat to look outside through the window without any discomfort dotted provides a solid base for window installment.

Standard dimensions➱

Sill level of any house should be around 3 feet or 900 millimetres.

Building Construction - Process, components and materials



Lintel➱

Lintels are constructed from reinforced cement concrete it is provided above the wall openings like doors, windows etc. the lintel actually takes the load coming on window and door openings.

In sort, lintel safeguard the door and window from excess load coming from above in residential building lintel can be constructed from concrete or brick masonry,

Standard dimension➱

Generally, the lintel width is the same as the width of wall and thickness between 4 inch to 6 inch.

Ceiling➱

Ceiling is not a separate part but is a bottom face of any slab ceiling is most important part of any room because it can be decorated to increase aesthetic appearance POP(Plaster of Paris) is a material used for making false ceilings. it is a location where we can hang decorative items. fan etc to increase architecture view of room.

Standard dimension➱

Ceiling height is kept 9′ 6″ to 10′ 6″ it can be more or less as per requirement.

Chhajjas➱

Chhajjas is also called as weather shed this is a structure which is constructed above window projected outside from window face the main function of weather shed to restrict the direct entry of rainwater and sunlight hatches are constructed from reinforced cement concrete.

Standard dimensions➱

The length of chhajjas = width of window + 0.15 M bearing on both side

Width of chhajjas = 0.45 M to 0.60 m

RCC beam

RCC beam is an important component in any frame structure beam is a horizontal member which connects columns on both side. it main function is to take load from upper structure and transfer it to the column.

Generally column to beam connection is called direct support while the beam to beam connection is called indirect support in most of cases the beam supported by two columns and the most rarely used is the cantilever beam.

Standard dimension➱

Minimum Beam dimension is 9″X 9″

Building Construction - Process, components and materials

Roof or RCC slab➱

Roof is an Important and essential  component for any building structure which provides protection against environmental factors such as Sun, wind and rain.normally all roof rests on sidewalls and required anchoring so that wind and another mechanical  impact cannot destroy it.

Roof may have different shapes but flat and sloped roofs are more popular typically most of roofs are constructed from RCC, stone slab,tiles etc.

Standard dimension➱

Generally RCC slab thickness can have minimum dimension 4″ to 6″ as per requirement.

Doors➱

Doors are the main entry and exit point of any house without doors there will be no security in house they are one which separates the one room from others doors have locked key facility, so we can lock the house by locking the door and go out freely they are made of strong material like steel, wood, iron ,therefore, they are not easily breakable.

There are different types of doors used in house.
➮Hinged doors
➮Dutch doors
➮Roller doors
➮Bi-fold doors and many more these are discussed below

Standard dimension➱

Main door of the drawing-room, bedroom, kitchen may have a width up to 2’6″ to 3′ and other rooms like bath, W / C is 2′ to 3′ height of doors is almost 7′ every time or up to lintel level.

Windows➱

Windows are one of an essential component of any house or building it is one that allows fresh air and light to enter into the house without window house becomes darkroom or jail.

Windows are provided at sill level and their height extended up to lintel level there are various types of windows used in house like

➮Single hung windows
➮Arched windows
➮Awning windows
➮Bay windows
➮Bow windows
➮Casement windows and many more are discussed below

Standard dimension➱

Window opening width may change depending as per requirement but its height generally kept 1.4 m From sill level or up to the bottom of the lintel.

Parapet walls➱

It’s a Low height wall built along the edge of the roof, terrace, walkway, balcony etc. it is generally constructed with single brick wall.It can be constructed using RCC, Steel, aluminium, glass etc.

Standard dimensions➱

Parapet wall height is 3 feet-0.9 m

Building Construction - Process, components and materials

Waterproofing on terrace➱

Damp proof course is the protective layer to restrict the movement of moisture water through roof slab. for DPC on roof flexible materials are used which provide a lesser number of joints like mastic, asphalt, Bitumen felts, plastic sheets etc.

Building Construction - Process, components and materials

Copping➱

Coping is structure which is constructed on top of boundary walls and parapet wall etc to protect rain water directly store on brick masonry wall.

The main function of coping is to drain off rainwater during the rainy season end improves the aesthetics of the structure/wall.

Building Construction - Process, components and materials



The standard room size and location in residential building➱

What are the standard room size and location in residential buildings in this video you come to know about the various standard dimensions of different elements of residential houses.

Area limitations➱

The limitation of area and height of the buildings of different types of construction and occupancy is achieved by satisfying floor area ratio (FAR). FAR is taking into account the following aspect.

➮Occupancy class
➮Type of construction
➮Width of the street fronting the building and the traffic load
➮The density and locality where the building is proposed
➮Parking facilities
➮Local firefighting facilities
➮Water supply and drainage facilities

Floor area ratio(far) = total cover area of all floors / plot area

The floor area ratio is generally in between 1.0 to 2.0 depends on the type of construction.

For example, if a plot measures 15 m X  20 m and building bay- laws stipulates permissible FAR as 2.0 , then the maximum built-up area which can be put on the plot is 600 square meters. if the area covered at ground floor is 150 square meters, the total number of floors that can be constructed is (600/150)= 4,

Height of the building➱

The height and number of the story for a building are related to FAR and the provisions of open spaces are already explained earlier dot where the building height is not covered by FAR, the maximum height should be limited to the width of the street as follows,➮

➱The maximum height of the building shall not exceed two times the width of road abutting plus the front open space.

➱If a building abuts on two or more streets of different widths, the building shall be deemed to face upon the street that has the greater width and the building height shall be regulated by the width of that street and may be continued to this height to a depth of 24 m long the narrower street subject to the conformity of open spaces.

➱In the vicinity of aerodromes, the maximum height fixed in consultation with civil aviation authorities.

 Appurtenances is like a water tank on the roof ventilating and air-conditioning appliances, lift room, chimneys and parapet walls not exceeding 1.2 m height are not included in the height of the building.

Standard room size and location in residential building➱

The minimum Room size and location for different types of room:➮


➱Bed room, Living room, Drawing room, Dining room, Study room.

Minimum area: 9.5 sqm

standard living room size 9 feet x 10 feet.

Minimum size of side:

1- For single room the Minimum width should be 2.4 meter.
2-Where there are two rooms one of these shall not be less than 9.5 square M and others not less than 7.5 square m with a minimum width of 2.1 m.

The height of room: the of all room for human habitation shall not be less than 2.75 m

Other requirement: For air conditioning room height should not less than 2.4 m.

The recommended standard room size and location for the living room of various sizes are as below-



Size Dimension in meter + (Area) Dimension in Feet + (Area)
Large 6.71 X 8.53(57.24) 22 28(616)
Medium 4.88 6.01(29.33) 16 20(320)
Small  3.66 5.49(20) 12 18(216)
Very Small 3.05 3.66(11.16) 10 12(120)



Kitchen➱

Minimum Area: 5 sqm.

Minimum size of side: the width of the room should not be less than 1.8 meter and where is a separate store, the area of the kitchen may be reduced to 4.5 square meter, a kitchen that is intended to use as dining also shall have a floor area of not less than 7.5 sqm with minimum width 2.1 m.

The height of room: the kitchen height shall not less than 2.75 square m.

The recommended standard room size and location for the kitchen of various sizes are as below



Size Dimension in meter + (Area) Dimension in Feet + (Area)
Large 3.65 6.09(22.23) 12 20(240)
Medium 3.05 4.87(14.85) 10 16(160)
Small  3.05 2.44(6.10) 10 08(80)
Very Small 2.13 2.70(5.85) 07 09(63)



What is Consistency test of Cement click to know

Bathroom in water closet➱

Minimum area: 1.8 square meter (bathroom) 1.1 square meter (WC)

Minimum size of side: if bath in water closet are combined its floor area shall not be less than 2.8 square meter with minimum side width of 1.2 m.

The height of the room: shall not less than 2 M.

Other requirement

It should be located such that at least one of its walls open to the external wall.

It should not be directly over or under any other room than another latrine washing place bath or Terrace in case of multi-storied buildings unless the floor is watertight.

it should have a platform or seat of watertight non absorbent materials.

it should be provided with the impervious floor sloping towards the drain with a suitable grade and not towards veranda or any other room.

The recommended dimensions of common bathroom of different sizes are as below:

Size Dimension in meter + (Area) Dimension in Feet + (Area)
Large 2.13 3.66(7.8) 12(84)
Medium 1.83 3.05(5.6) 10(60)
Small  1.52 2.75(4.20) 9(45)
Very Small 1.06 1.98(2.04) 3.5 6.5(22.75)



Storeroom➱

Minimum area: the minimum area of storerooms should not be less than 3 sqm.

The height of store room: The store room’s height should not be less than 2.2 meter.

The recommended standard dimensions off storeroom of various sizes are as below:-

Size Dimension in meter + (Area) Dimension in Feet + (Area)
Large 3.65 4.2615.55) 12 14(168)
Medium 2.44 3.05(7.42) 10(80)
Small  1.52 1.83(2.80) 6(30)
Very Small



Garage➱

Minimum area: The minimum area of garage should not be less than 12.5 square Meter.

The height of room: The garage should not be less than 2.4 Meter.

Staircase➱

Minimum size of side: The Minimum standard width of the stair is  taken 1 Meter.

The height of stair: The Minimum Standard clear Headroom’s height  shall be 2.2 meter.

Other requirement:

➯The minimum width of tread without nosing shall be 250 millimetres for residential buildings.
➯The maximum height of rising shall be 190 millimeters for residential buildings.

Plinth height➱

The height of the plinth shall not be less than 450 millimetres from the surrounding ground level. a height of 600 millimetres is the best from drainage or other considerations.

Parapet wall➱

Parapet walls and handrails provided on the edges of roof terraces, balcony, veranda, etc shall be not less than 1.05 m and not more than 1.20 m in height from the finished floor level.

Boundary Wall➱

The requirements for the boundary wall are as following-

Except with special permission of the authority, the maximum height of the compound wall shall be 1.5 m above the center line of the front street.

Compound wall height up to 2.4 meter height may be allowed if the top 0.9 meter is of an open type construction of a design should be approved by the concerned authority.

Minimum ceiling height standards for residential house➱

However, if there is no rule to follow contractors and development both public and private sectors tend to reduce the size of dwellings being developed whilst trying to avoid any reduction in value.

Bye- law for minimum height and size standards allows well-planned and systematic construction of house and towns, and provide proper utilization of space.

How ceiling height is decided➱

Human height in different position

Before deciding the minimum ceiling height we need to understand human height in different positions in a room as seen in the figure the average human height is around 5 feet 5 inches but, we raise our hand upward it’s around 6 feet 6 inch maximum. so considering this fact the minimum height of the ceiling is taken.

Minimum ceiling height inhabitable room➱

As we know that the minimum height of door height is about 7 feet for all doors in the house each door of the house. must have a minimum height of 7 feet this is because of the fact that human average height is about 5.5 feet and when we raise hand upward is about 6 feet 6 inches.

So, there must be a gap between our hand and door frame bottom of the top frame.

Nowadays, architects and engineers keep the floor to ceiling height about 10 feet in most cases. again let’s understand this fact also.

Total floor top to ceiling top is about 10 feet. deducting the thickness of the slab becomes 9 feet 6 inches.

Let’s consider fan handing from the bottom of the ceiling is about 1.5 feet downward sight and when any men raise its hand toward ceiling straight as height becomes 7 feet. So The gap remains between men’s hand and bottom of the ceiling fan will be

 = 9 feet 6 inches -7 feet -1.5 feet = 1 foot or 12 inches.

Therefore from the above fact we can conclude that the minimum ceiling height should at least 9 feet 6 inches for any habitable room in residential building.

Minimum ceiling height in sunken slab of bath and w / c➱

Generally, sunken slab for bath and w / c is about 1 to 1.5 feet sunken below the slab. so, if total ceiling height is about 9 feet 6 inches then space left below we’ll be around 7 feet 6 inches.

Therefore the minimum ceiling height for Beth and W / C sunken slab should be 7 feet 6 inches.

Minimum ceiling height for various rooms in house➱

living room / drawing-room➱

the living room of any house is a place or area where the homeowners and family members gather to spend time together dot it’s an area designed for recreation but also for entertainment space where guests are welcomed when visit the living room also termed as drawing-room.

The minimum ceiling height for the living room from the top of floor to bottom of the ceiling should be not less than 2.75 M or 9 feet 6 inches.

In the case of an air conditioned room the minimum height should not less than 2.4 m or 7 feet 8 inches. measured from the top of the floor to the lowest point of a/c duct or the fall ceiling should be provided.

Kitchen➱

The kitchen is the most important and essential room in any house because it is the center of your family’s day-to-day living. everyone’s day starts in your kitchen with a cup of coffee or energizing breakfast to start your day.

kitchen space used to make meals for your family in your kitchen and probably even eat in your kitchen.

As the kitchen area is a continuously used area of any house. its ceiling height should not be less than 2.75 M or 9 feet 6 inches.

Bedroom➱

A bedroom of any house is one of a private room where people usually sleep for the night or relax during the day it is estimated that humans spent our one-third life by sleeping and most of the time we are asleep we are sleeping in a bedroom.

The minimum ceiling height of the bedroom should not less than 2.3 m or 7 feet 6 inches measure from top tiles to the bottom of the ceiling.

Storeroom➱

The storeroom sometimes attached to the kitchen is the place for storing grains foodstuff and/or junk in the house for their ready availability and use in an emergency.

The minimum ceiling height of the storeroom should not less than 2.3 m or 7 feet 6 inches measured from top tiles to the bottom of the ceiling.

Bath and water closet➱

It is an area sometimes attached soiled and often a bathtub in a shower.

The minimum ceiling height of the bath and toilet should not less than 2.3 m or 7 feet 6 inches measured from top tiles to the bottom of the ceiling.

Garage➱

It is a place where house owner vehicle repaired, perked, serviced and also used for storing used parts and accessories of the vehicle,

The minimum ceiling height of the garage should not be less than 7 feet. but generally, it is kept more than 7 feet.

mezzanine floor➱

A mezzanine floor is an extra floor between two main floors, and therefore it is not counted on the main floors of any building.

The minimum ceiling height of the room with the mezzanine floor from ceiling to top flooring of the ground floor is about 14 feet 4 m.

Minimum ceiling height basement➱

the minimum ceiling height of the basement should be at least 7 feet to 9 feet.

Standard height of window from floor level➱

The standard height of the window from floor level is an important point of discussion while constructing a new house or renovating an old house.

The proper height of the window is very important for comfortable living as it permits the Sun and natural air entry from the exact level.

What is window ?➱

A window is one type of opening in the wall which provides passage to pass light sound and sometimes air modern windows generally have glazed or covered with transparent or translucent material.

The windows are the most important part of any house which provides light, fresh air, and ventilation in the house. windows are also useful for the purposes of architectural decoration.

The windows provided allows light into the room enhance your wall colors or furniture it provided seasonal utility like allows Sun heat into the room and close the opening during summer to avoid outer heat to enter the house.

Types of window➱

there are different types of windows available in the market you can choose from them as per your requirements.

The windows can have different shapes like square rectangular, and even triangular, some windows open outward, some slide up-down, or slides one side to open these types are available in different materials like wood, steel, aluminum and PVC also used to make a window.

Following are the 18 popular types of the window as listed below-

➱Single hung windows
➱Double hung windows
➱Arched windows
➱Awning windows
➱Bay windows
➱Bow windows
➱Casement windows
➱Egress windows
➱Garden window
➱Glass block windows
➱Hopper windows
➱Jalousie windows
➱Picture windows
➱Round circle windows
➱Skylight windows
➱Sliding windows
➱Storm windows
➱Transom windows

What is standard size of window➱

Windows are a very essential part of any house. for a simple residential building or house, a minimum of 15 percent area of the room is allowed to provide for window openings.

That means we can provide a window opening area around 15 percent of the room area if the area of the room is 100 square foot then we can provide one window with size 4 feet x 4 ft for public and commercial building this is around 20 percent allowed,

Width of the window depends on the factors like-

➱The dimension of the room
➱Use of the room
➱Location of the room
➱Direction and speed of prevailing winds
➱Climatic conditions of the region and
➱Local trends, aesthetic, view, etc

Following are some standard size of windows is mostly used in the house-

The height of the window generally fix, but it can changed as per architectural and owner requirements windows height is fixed around  feet or up to the level of the door frame or a lintel level,

Standard height of window from floor level➱

 There are two levels that are important while placing the window in position.

sill level: – The level or distance from the floor to the bottom of the window frame is called the sill level it is generally kept about 900 millimetres or 3 feet.

Lintel level:- The level from the top of the floor level to the top of the door frame on which lintel is placed is called the lintel.

Level the lintel is generally provided to avoid direct load on the wall and distribute above wall load to below load the lintel is generally made up of reinforced concrete or cement mortar lintel level is provided as same as the height of the door which is generally 2.1 m or 7 feet.

So, the standard height of the door from floor level is 2.1 meter or 7 feet ,it can be simply calculated by following calculations,

The height of window from level of floor = door height – window height

in case the height of the door is taken 7 feet and the height of the window is taken 4 feet then the

Height of the window will be = 7 feet – 4 feet = 3 feet

The standard height of window from floor level is 900 millimetres or 3 feet it can vary depending upon the size of the window, ceiling height,and owner requirement.

Types of doors for your perfect house➱

What is door➱

Doors are defined as “the movable structure used for opening and closing an entrance or forgiving access in or out of something”

A frame used for given access to indoor or outdoor as to a building or room or giving access to a closet, cupboard etc most doors turn on hinges, slide in grooves, or revolve on an axis

Importance of doors

We all know the proverb that the first impression is usually the last and this is true especially for entrance to our homes the entrance of any house creates a lasting impression on visitors mind but somehow doors remain unnoticed unless either they are elegantly done or completed in Bad shape.

Doors are the major important element of any home they do not only provide aesthetically pleasing but also have features like durability, strength, water and heat resistance, and it should not warp with time.

Past days have been gone now doors were used for the mere purpose of maintaining privacy and security. nowadays doors become important aesthetic appearance structure an integral part of a home’s interiors.

Types of doors➱

Following are that major types of doors:-

➱Hinged doors
➱Dutch doors
➱Pocket doors
➱Roller doors
➱Bi-fold doors
➱Sliding doors
➱Pivot doors
➱French doors
➱Panel doors
➱PVC doors
➱Flush doors
➱Battened and ledged doors
➱Bamboo doors
➱Glass doors
➱Aluminum doors
➱Fiberglass door
➱Fiber reinforced plastic doors
➱Steel doors
➱Louvered doors
➱Swing doors
➱Collapsible doors
➱Sliding doors
➱Rolling shutters
➱Glazed Slash
➱Revolving doors
➱Wooden or timber door

Hinged doors➱

A hinged door generally made of either a solid wooden panel door or hollow core door affixed to a doer jamb with two or more hinges.

These types of doors are too common and are useful in almost any application in which a doer is required these doors are generally located as front entry rear entry interior and wardrobe doors.

Dutch doors➱

A Dutch door also nose is double hung or half door sometimes and is a doer that split in half horizontally allowing the top half to open while the bottom half stays shut secure tight bolt holds the two halves together and it operates as a normal door.

Nowadays Dutch doors popular for their practicality as well as their old-world feel. these doors are the prime choice for interior doors as well allowing you to keep an eye and ear on children and animals while keeping them in or out of a certain part of the house

Pocket doors➱

The special feature of pocket doors is that it gets disappear into a special cavity inside the wall when opened.

These doors generally have top hung and slide along a track mounted on the ceiling many house owners choice for pocket doors simply because they like the style. the pocket sliding door is sometimes used to separate two rooms so that they may be joined as needed.

Roller doors➱

Roller doors mostly used for garages and storage facilities however they are an extremely trendy addition to a living room for instance.

Bi-fold doors➱

Bi-folding doors are generally used for seamless connections between inside and out side of any house. bi-folding designs are not like Dutch or French but they give stacked neatly out of the way providing gloriously open access to the garden and an expansive feeling inside.

Sliding doors➱

Sliding doors are also known as bypassed doors and are generally used for locations including large opening as that discovered in a bedroom or closets.

Sliding doors do not swing open and rather you have to move them on the track and that’s why they do not disrupt other components of the space therefore just a part of the opening is accessible at a time.

Pivot doors➱

The pivot doors are simply designed to rotate about its vertical axis these doors are available with or without a stopper this door can effortlessly rotate 360 degrees in its own axis.

The pivot doors are made with complicated hinges hidden on the top and bottom of the door which forms the center from where the door Tate’s these types of doors.

French doors➱

A French door generally made up of one piece and has the light construction with glass panes extending for most of its length dot they are also known as French windows.

If you are searching for something different and eyes catching French doors would be the ideal choice these types of doors have hinges set up on each side of the opening and they swing to each other in full fill in the center they provide an unblocked view when both side doors are opened.

Panel doors➱

The past panel doors are very popular for quite some time its name gives the idea about its making that the door is crafted not of one single piece of wood or other material.

Generally panel doors are most suitable for exterior doors but if you want a hey ah fire door that can better deaden sound then you can have panel doors installed as interior doors as well.

PVC doors➱

PVC or polyvinyl chloride is a very popular material choice for doors in your bathroom these lightweight doors minimize your work while maximizing your investment.

These doors look like painted wooden doors that do not need any maintenance which is for the absorbent natural fibers of the wood if you go for PVC shower doors you’ll find that they’re simple to install and easy to clean.

Flush door➱

A flush door is made of solid block board core vertical Stiles and horizontal rails that create a pre fixed frame and block board is composed of wooden strips.

They bonded under high pressure and temperature using a synthetic resin so we can say that the flush door is a Dewar that is made of a timber frame covered with ply from both sides the hollow part Left on is filled with rectangular blocks of softwood.

Afterward the final decorative finish is given by fixing the veneer on the top it is named as a flush door because it has an entirely smooth surface and if water splashed on its surface it would simply flow off its surface without accumulating.

Battened and ledged doors➱

These types of doors composed of vertical boards called battens which are nailed or screwed to horizontal members called Ledger’s the battens used are generally 15 to 18 centimetres wide and 2 to 3 centimetres thick normally narrow battened doors have a better appearance.

These doors can be either braced or braced and framed to offer rigidness in a much better look such doors are mostly utilized for toilets, baths, WC and other rooms as well as in homes where the economy is the prime factor to consider.

Bamboo door➱

Bamboo strip can be used in doors and windows, including their frames and so on one common option to the wood item is the jute coir composite board which can be made use of for the manufacture of doors.

Doors composed of bamboo Jude have the benefit of being water resistant, rust resistant, termite resistant, environmentally friendly, biodegradable and expense efficient.

Glass door➱

Glass is most commonly used for windows and doors primarily for paneling it depends on owner weather like to use glass doors can be made out of glass for particular areas generally glass doors most suitable location is on the back side as it offers an unblocked view of the yard or garden.

Front doors made of glass also look gorgeous however care needs to be required to guarantee both personal privacy and sturdiness fixing one panel of glass set into wood frames are irregular and gorgeous alternative for front doors.

Glass door is more expensive compared to others and needs more effort to upkeep these doors have more weight than other doors besides being pricey.

Aluminum doors➱

When you plan to give elegance look to your house what types of door do you prefer ? perhaps the best choice for you would be aluminum aluminum doors already first choice option for contemporary architecture because of the security, aesthetics and insulation properties it gives.

As it well known fact that aluminum is a durable and sturdy material that doesn’t need too much maintenance there is no doubt about the quality of aluminum.

It has already been tested through a bit expensive it’s actually one of the best choices in the door market aluminum doors can be used for both residential and commercial purposes it’s perfect for glazing and glass fronts providing you with a high quality frame.

Fiberglass door➱

Generally glass fiber is manufactured by bonding fiber with resin that can be utilized to produce a variety of products consisting of bathtubs, doors, and windows and so on.

Fiberglass is proven to be one of the most solidified products with fairly low upkeep expenses as compared with wood and steel fiberglass doors are well-known as steady as they do not warp, bow or twist.

Windows and doors made up of fiberglass can be offered with wood panels on the surface to surpass the visual Appeals doors manufactured out of fiberglass can be utilized for both outside and interior areas.

Fiber reinforced plastic doors➱

Fiber reinforced plastic has high strength it can be put to numerous usages consisting of manufacture of doors FRP doors are available in many colors and surfaces consisting of natural wood surfaces in the market.

These types of doors may have 2 leaves of 1.5 millimetres density and Leafs are molded over a core product forming a sandwich panel FRP doors are one of the popular choice for modern day house construction.

Collapsible doors➱

The collapsible doors are composed of vertical double channels (20 X 10 X 2 millimetres) join together with hollows on the inside to create an artificial gap.

Channels are spaced about 100 mm to 200 millimetres apart and braced with diagonal iron flats which allow the shutter to open close giving an appearance of a steel curtain.

The doors shutter operates within two rails one fixed to the floor and the other at the lintel roller fixed on top supports the equivalent movement in both directions for easier operation.

Sliding glass doors➱

These doors are generally utilized where there is space limitation for the swing of a hinged door or for aesthetic purposes these doors are commonly used in commercial structures.

The doors shutters slides horizontally along the tracks with the help of runners and rails generally the door is hung by two trolley hangers at the top of the door running in a concealed track.

While at the bottom rollers are provided to slide the shutter in the channel track for providing easy movement plastic rollers are fixed at top bottom.

Rolling shutters➱

Rolling shutters are generally used for shops /go downs this shutter works as a barrier and provides protection against fire and theft’s wind and hails.

The rolling shutter is made of steel slabs called laths or slates which are around 1.25 centimeters thick interlocked with each other and coiled upon a specially designed pipe shaft called drum mounted at the top.

Such an arrangement is made that shutter moves in two vertical steel guide channels mounted at the ends the channels may be made of steel sheets deep enough to accommodate shutter and to keep it in position.

The rolling door is raised to open it and lowered to close it on large rolling shutter doors more than 10 square meter the action may be motorized.

Glazed / Slash➱

Glazed or Slash doors are the same as framed paneled doors except one of the panel’s is replaced with a glass to improve visibility of the interior room.

Revolving doors➱

This door has a central shaft with four wings that hang on it the shaft rotates around the vertical axis within around enclosure.

The doors central shaft is fitted with a ball bearing arrangement at the bottom which allows the shutters to move without any jerk and making noise.

These types of doors may be fully penalty glazed or partly glazed.

Wooden or timber door➱

These types of doors are primarily used for interior door applications timber is the oldest material used for the doors and timber never seems out of fashion.

There are many good reasons for using wood such as wooden doors provide soundproofing insulation and security. they are easy to install and clean.

They have a long life being a natural material they have a different appeal. they do look elegant they are very costly.

How to reduce construction cost➱

Building a dream home is everyone’s aspiration everyone person wants to construct Dream Home .

Where they can cherish their memories but when people want to make their dream into reality.

It is very hard to fulfill it is because house construction cost is not cheap nowadays for the middle class family is about investing their whole life income in building a home.

That’s why many people find it a large investment in their life for this reason they try to save as much as possible to get the optimum value of their price also some people go for loans that are why it is necessary to effectively use the money to get maximum benefit it is not a big task.

Selection of plot➱

Because that can reduce your transportation cost for a lifetime but many sellers are there who take the opportunity of high demand and sell the roadside plots at a very high price so be careful while choosing the plot if you are getting it a little far from the main road then it is okay.

Conduct soil test➱

While selecting a plot just not focus on the communication facility but do soil test which is a much essential part of the construction because there are different types of soils are available and each soil behaves differently before buying the plot check the soil if it is a paddy field agricultural field or soil with hard soil.

Because if the soil is not good or if it is a loose soil then there you will have to expense a huge cost and after if it comes to know that plot having paddy field then the foundation cost is huge and again to get permission to make the home is huge.

Confirm electrical and water supply an area➱

If there is no electric and water connection near your plot then you have to apply for a separate pole connection near your home and have to make a separate connection for plumbing which is again expensive so look after these factors before buying a plot.

Choosing construction materials➱

In any type of construction building materials play a major Cost effective role among all the construction material bricks, cement, rod and sand make a large part of the construction material if you purchase material.

In the lot main one order for whole material manner then there will be less expenditure regarding construction material. because the dealer will give you more discount as you purchase more amount of material.

Prepare structural drawings➱

Preparing structural drawings for the house is essential the majority of people ignore this and don’t know about the structural drawings of buildings.

They only thought about the architectural drawings of the building but structural drawing is all about foundation plan detail framing plan detail column and beam plan detail and other structural components of buildings.

From this structural drawing how much amount of rod send cement and bricks will be required can be calculated in advance and if this is done accurately then there is a chance of saving lots of money.

Saving and finishing materials➱

Not only is the construction material only responsible for rising costs along with that finishing the material is also responsible while we consider finishing work there is flooring material doors and windows and especially wooden works for interior absorbs a huge cost.

But this can be reduced if you are choosing proper material and buying material in bulk amount at a time if you are purchasing this material in phase by phase manner the shopkeeper may not give you a discount but if you are purchasing in a bulk amount and from one shopkeeper then you can save your money.

Do not make change after construction starts➱

Sometimes people approve one plan before construction and during construction they suddenly change their plan this is one of the major reasons which again increases the construction cost dot try to avoid this thing unless and until it is necessary.

Go for pre-fabrication work➱

To minimize the cost of house construction you use modern technology use prefabricated parts for the construction of your home in this type of construction a part of the building is constructed at the factory or in a separate place.

And then combined to a site to make the house it has a lot of benefits it not only reduces the cost but also reduces the time of construction.

Use fly ash instead of red bricks

 If you want to reduce the cost then choose to fly ash bricks instead of red bricks or other bricks fly ash bricks are less costlier than red bricks but have good strength for construction . it can reduce the cost of construction in a considerable amount.

Select good color and putter➱

If you wish to reduce color cost then go for lime based color put the color twice to make the color brighter .

don’t use putty generally putty is often used when we need a smooth wall surface or the wall is very rough or there are larger sand particles showing to avoid extra cost for putty always purchased the standard size of sand for the purpose of plastering.

Saving in labor cost➱

Labor cost is also a large part of the construction which cannot cut easily but try to calculate the works in hours how much labor will be required to finish work and how much time in this way you can save your cost by estimating the labor cost otherwise the labor will work according to their time and you have to expense more.

Saving in machinery cost➱

Construction machines are always hired on a rental basis and their rental cost is too high so try to take maximum advantages of construction machinery in a calculated way by which construction cost can be saved.

Saving and flooring

flooring can be done both costly or economically tiles come in odd pricing range select one of them according to your budget also cement flooring is a great option. to reduce the construction cost and one of the long-lasting flooring.

Saving in wooden work➱

As far as possible if there is no essential need for wooden work try to avoid it you can also try to avoid the use of costly woods for construction instead you can use a jack fruit tree while Jack jungle jack and similar wood most available in your place to reduce the total cost of wood up to 50%.

Selecting good shape of house➱

The shape of the house also contributes to increasing the cost of construction when the size of home increases it increases the surface area and ultimately the cost of construction so try to sign house such a way that it will reduce the surface area and reduce the cost.

Reduce numbers of wall➱

Make the home more spacious by reducing the number of walls it ultimately reduces the surface area and also decreases the cost it also permits natural light to enter the house and decreases the number of electricity expenses.

Click here for more civil engineering knowledge
For Current Government jobs Click here

Pile Load test

Pile Load test

PILE LOAD TEST


INTRODUCTION➱

Something relevant for onshore and coastal areas where the possibility of load testing is feasible whereas for offshore conditions full-scale load testing is not feasible because of several constraints In any case to understand what involves such load test will be very useful so that you can see what alternatives can be worked out for offshore conditions.

But in the near shore around less than 20-25 meters we have done pile Load testing but quite cumbersome quite expensive and time-consuming So the pile Load test if you look at the design of foundation you know there has always been a debate because of the uncertainty associated with the soil parameters.

Always it is understood that design is verified by testing to full scale at the side of the final construction If you look at many of the international course obviously they state that in the engineering based design is not hundred percent sure.

So if you go back to British course or European course including Indian course specially for pile foundation, you will see that every pile needs to be tested to its capacity ,

So if you have seen in a construction site several hundred piles testing every one of them becomes you know elaborate as well expensive time-consuming it puts the whole project in a different schedule of construction activities,

So you select critical piles or piles that may represent actual site conditions So among hundred number of piles may select say 2 piles or 3 piles which may represent actually the site conditions ,So normally most of the modern-day projects we take about 3 to 5 percent of the piles,

That means if you have hundred piles you do the testing of 5 piles So you select them in randomly to distribute all around the site in such a way that you can extract information from this pile testing so that you can represent them in the design process,

But by doing that what you are actually going to do is you take this so-called test parameters and then that calculate and go back to the design revisit the design and adjust the design parameters to suit the tested pile information,

So if the tested file is giving the design or the failure load is lower than the design load means your design parameters what you have used in your calculations are on a higher side or vice versa So you can go back and then adjust the parameters until that you get the design capacity versus failure,

Load is almost close by so this adjustment is even now many of the projects we try to do this so that in the future installation become almost reasonably correct So that means this testing has to be done up front before the construction starts so that is the idea behind pile load testing,

That means you get a comfortable level of confidence which is very essential for foundation system,because you cannot have an uncertainty on a foundation for structure which may actually pose a big threat So the pile Load test has been there for several decades for onshore and offshore projects of near coastal areas,Several kinds I would say So since,

What is the purpose of pile load test?

PROCEDURE OF PILE LOAD TEST➱

Now you see the procedure how we want to start the project with low testing we want to do the load tasting up front before the actual construction starts so you can say sacrificial testing that means once you do the testing of this piles the piles will never be able to use it because you already have failed the pile to ultimate load capacity that means you have a different category of testing

Or you can actually test the same pile which you want to use it as a part of the structure that means you cannot fail the pile but you can actually apply the loading until the load that it may get during its service You know so you can see here now planning is required what type of testing is planned for that particular site whether you want to do a full-scale failure to load test or you want to a working load test,

The test that may actually take you to the level of working load and stop then you actually construct the structural system on top of it So this pile Load test is quite useful in a sense so we will look at various test and the procedures available for us So we will be looking at both horizontal load test and vertical load test,

You know we have specially the coastal areas and the berthing structures and offshore structures we have considered amount of horizontal load compared to onshore structures And then we will look at some of the testing some special testing by which you could actually get the similar information,

But that kind of empirical method you do some testing and extract the information and prorate it to obtain the axial failure load which nowadays seems to be very economical and is quick specially the dynamic testing and some of these are commonly used,

Pile Load test

So if you select 5 percent of the piles for testing using gravity method the remaining 95 percent you know still uncertainty exist because if you look at a site your construction site say 1 kilometre by half kilo meter wide industrial construction and you select only 5 remaining 95 percent of the pile is distributed all along this site,

Now you may conclude based on 5 piles that these remaining piles are safe we have adjusted the design but what surety you have over the distribution of soil within a 1000 meter length it may be very difficult decision So instead you go for the remainder of the pile with simplified method instead of going and putting a big weight and then measuring the displacement and strain you do a simplified method of pro rating the capacity based on certain small scale testing which is what we used in dynamic testing and which is very useful in many cases,

It proved to be So if you do a full-scale testing and on the same pile you do a dynamic testing compared capacity then you can actually get a very good feel how the dynamic testing is fairing with regards to the full-scale gravity testing and your design your theoretical design you have 3 numbers to compare and then you can come to a conclusion,

 And then the remainder of the piles you go and do a So you can see the correlation is very important from gravity testing to a dynamic testing to a engineering design then you go back and do the remainder of the pile you have only engineering design adjustment plus the dynamic testing ,

So this procedure is adopted in most of the large-scale projects but of course if you look at only some projects were only 5 piles 10 piles are there and subject and dimensions of the structure is so small like 50 meter by 50 meter the variability may not be that great so you can do only one pile test and you can leave it,

 And in the application of such simplified methods for pile monitoring for offshore structures is very much useful like what we have learned about your medical scheme to calculate the number of blows required to drive a pile to a particular depth of penetration using a particular hammer,

You can back calculate and it is called pile monitoring system that means you will use the information during driving and then calculate what resistance it would have been offered by the the soil during driving,

And then you just adjust it to long-term capacity using several parameters and then you can predict or at the end of driving you can say the pile would have achieved this much capacity,

Now what you did avoiding here you are not going to place a big weight and try to do a measurement of displacement which is quite cumbersome especially when the pilot very large and the load is huge ,

And that is why the pile monitoring system is one of the indirect means of getting pile capacity in offshore condition and that is what we are going to discuss at the last And in the recent times in the last 10 years,

Or so another method of permanent implant of device into the pile system which is adapted for concrete piles at least You know basically before you install the concrete pile you would a load cell at the bottom of the concrete pile itself,

And just cause the pile and afterwards you have a activation system a wire will come to the ground so you can activate the hydraulics and you just push the pile against the soil resistance And this can be done for ultimate test,

Or it can be so this O-cell test is also employed in some of the onshore projects bridge projects in US but very in this part of the world because it is quite expensive you need to embark a complete load cell inside the pile itself,

Permanently you cannot extract them afterwards so it is just left over there So this O-cell is basically Oster berg cell name after the person the professor who found this method for one of the bridge project in US,

It is in use for quite very useful and few projects we have used it for offshore or coastal so we will go through each one area by little bit detail So the purpose of pile load test is to find out the install pile capacity and verify and remove the uncertainty of associated with the assessment,

That we have gone through do during boring taking Sample and then to laboratory test and then properties and unknown properties are calibrated using past you know information So all those things will be removed once you have the actual capacity versus the displacement,

And to assess the load displacement basically there is no critical information that easy to relate the capacity versus displacement You might have already got the methodology to evaluate the bearing capacity,

 A multi layer site what you saw was basically a single soil layer giving a theoretical relationship between the capacity and the displacement whereas when we have a multi layer soil the behavior itself is going to be complex and the only way to get the load displacement relationship is to carry out complete load test,which will be a prototype in nature you are not doing a scale model like our laboratory,

So the primary purpose is to link and assess the load displacement characteristics of a particular pile at a site So the test can be of in fact 3 categories basically the one that normally carry out is the static load test the load is static in nature and that the dynamic load test which is what we were talking about,

The quicker and the cheaper methods Then we have the bidirectional method using O cell you can actually do this way or the other way In the static load test we have got variety of load application methods,

One is the constant rate of penetration imagine if you have the pile already installed and try to do the loading the displacement is not under control so that means if you go by this method whatever displacement comes you will actually note down whereas if you actually control the displacement by changing the load according to the displacement characteristics,

The rate of petition can be controlled So but the first one is quite obviously very difficult to do because you have to continuously having a monetary system of displacement and adjust the loading according to the rate of penetration,

Not many of the contractors have this facility because you need a feedback loop so that when the displacement increases you have to decrease the loading and it is only feasible by hydraulic means where as normally most of the most load test,

You see in the field they all just put big weights so removal of weight is going to be very difficult So most of the time we do maintained the load test you put one weight weight for several hours according to the procedure and monitor the displacement,

If the displacement become constants that mean for that particular load soil has achieved its maximum possible displacement Then go to the next load displacement and apply the loading wait for several hours and vice versa you remove the loading and look at any elastic rebound happening or is a plastic failure,

So basically this maintained load test is commonly used in most of the projects very rarely we go for this particular method Dynamic load testing we have very similar idea like you know the pile hammer when you take a hammer and drop onto the pile and you see the stress waves travel through the pile and get reflected,

If the absorption is not enough and you measure the statistics of the transmitted stress waves and reflected stress waves and depending on the reflection and the transmission you back calculate using the same principle,

What we were looking at the the dynamic equation and calculate that what would have been the resistance offered by the soil because this much waves has reflected back from the soil itself So that is indirect means but before going and doing the actual testing at the site you may have to actually do a calibration in a known material which is easy to do,

After that you can compare with the known material versus actual pile at the site this is you got 2 types of tests one is the high strain dynamic testing the other one is the low strain dynamic testing just the weight of the hammer and the low strain dynamic testing is normally preferred because for concrete piles,

If you do a high impact the pile itself will actually fail Pile monitoring I think we will talk about it little later it is a simple idea of using the driving information or driving records number of blow counts and you know the duration between the blow,

Sometimes you will have major stresses at the pile tip at the top and calculate back the resistance which is also is dynamic because you are using the pile the hammer impact loading Bidirectional method is quite useful only for the O cell testing which is you can do testing in both directions, because the load cell itself is planted into the the pile foundation,

So you can do vertical load test you can do compression tension I think obviously some of the piles in coastal areas for example berthing structures you will have compression loading and tension loading depending on the magnitude of horizontal load,

So the pile needs to be tested for compression and tension as we calculate the capacity you know pile capacity we calculate using skin friction pleasant bearing that is for compression For tension you will have only skin friction depending on whether the pile is plugged or unplugged,

You will see the internal and external So in this case the tension testing is required for only few number of files for example even if you design a structure the whole structure does not have any tension loading that you do not need to do this type of testing,

But most of the berthing structures will have tension because the gravity loading is very less and it is predominantly going to resist the horizontal loads like ship berthing structures so you will see a huge amount of tension coming at you have to make sure that the pile has sufficient penetration to take the tension loading,

It is not the whole structure will pulled off In many cases what we normally do is if you are unable to penetrate that much longer than you actually do a anchoring of the pile into the ground means you will do a smaller hole we will talk about one of the days,

I think later in one of the sessions about encourage files only for tension loading which is very essential for such type of design Then we have also lateral test static and cyclic and you can see here static test is going to give you certain capacity which will degrade when you apply the same loading,

Several times because the top layer of the soil as we have learned from our P-Y curve near the seabed you can see the soil gets disturbed quite a bit because of the repeated nature of loading and degrade the displacement or increase the displacement degrade the capacity,

So we need to see after how many cycles the capacity gets that means you would see that displacement would be more Then we have loading limit whether to load to the ultimate failure stage that means the pile will go into permanent deformation and the soil or you want to do a routine test by which you will not destroy the pile,

You will only do a extend of maximum working load the structure may get and stop it so that the same pile can be used for permanent construction as part of the structure so either way we can decide Only problem is there is an uncertainty in the second one you know you do not know what behavior,

It will go through after it achieves that so-called working load limit because it can fail straight away plastic deformation can happen or it can have a redundancy after that which will not be revealed when you do the working load test,

Whereas when you do this you will be able to find out at what load the pile is failing then you know what is the factor of sifting because the factor of safety is defined as the ultimate load by working load or ultimate capacity by working load,

So you will only be able to ascertain the factor of safety if you are able to find the ultimate load of what you will not be ascertain that factor of safety because in the working load test you only have that level it may actually fail after just going slightly higher than the working load which will not give you the comfort-ability of the factor of safety,

So that is why the working load test is normally not preferred but then cost versus your factor of safety and design requirements You have to decide how many number of piles you want to do ultimate load test and how many you will do a working load test,

But of course if the test result so large scatter then you will increase the number of piles that you do testing If you do a 5 piles and all 5 of them are shows very reasonable matching of results and you may have actually conclude that no further testing is required but each one of them shows different results and different variations in displacement characteristics you may actually decide to do,

Furthermore addition to the pile testing which again is is actually an procedure is decided by the the site representatives I think we have discussed the performance is design validation I think the primary purpose is design validation whatever corruption you have made during your bore holes and to the design stage,

You would like to validate that those assumptions are nullified so that your process of construction can go Quality control for sure in concrete pile is one of the biggest worry in fact steel pile you do not have such issues but the quality control of concrete pile construction,

Because everything goes underwater you have to displace I think we have discussed about the construction of concrete pile you have to displace the slurry which was poured inside by means of good quality concrete but the quality could not be ascertained because nobody can go inside So when you do this kind of low strain dynamic testing you could also assess the concrete the honey combing structure,

If the concrete is not done properly you will see that the reflected waves will differ from the solid concrete that if you have you can actually have uh testing of pile itself whether the pile is sound enough to reflect and transmit the waves or if the pile has got low honey combing inside also can reveal Similarly for steel piles if the file has been broken during driving and if you do this testing and it will reveal that if the stress waves are not coming you could easily find out where is the fault,

So that is the idea behind this the low strain dynamic testing So basically quality control of the construction itself can be verified by means of carrying out cross correlation test Sometimes you do a design development you know you basically you have a large number of some projects of thousands of piles like if you go to some of the large-scale industrial projects,

You may have several hundred piles So you do a representative pile testing and use that information to further develop and then come up with a design procedure In many cases if you if you look at some of the large-scale projects they actually develop new design procedures specific to the site using the design data collected from the pile load test plus the portable information,

And they come up with their own design strategy and the you know you do not need to follow the standard procedure given in either any of the codes or regulations because it is proved by testing at the site so that will be done sometimes And in many cases always you will use it for further refinement of academic interest,

I think these these are secondary but of course insufficient site investigation normally you do not do a construction without the site investigation but then all depends on you know the the owners intention sometimes some government organisations may not be able to do a site investigation,

Before the hour of contract to the contractor because of the nature of limitations they have They may not be able to allocate funds separately for site investigation and separate for construction it is part of the construction itself So what happens is when a contractor comes to the site they have no clue what is the site so they will be doing the site investigation so that is the time when the design becomes difficult the design has to be evolving based on the available information,

But not actual site information Many cases that happens so you do that at that time when the project starts you have assumed certain parameters during design and then you proceed with the construction but then do the testing 1st Once you do the testing your assumed information verified and several other limitations on you know basically cost is one of the primary parameters,

Nobody wants to do testing if they can live an engineered design I think everyone will be happy but that will not be the Now guidance from Handbook of pile load testing this is just give you an idea of how to decide how many piles is good for a particular site,

You know just of course this is only a guidance it will need to be decided by the site engineer and the and the owner of course for sure depending on how much of time and money is located for that purpose,

But typically you can see the complex or very much unknown ground conditions you know it is isolated place no one has constructed in the vicinity so then probably you can go for a large number of So you see here they recommended is 1 preliminary pile test per 250 piles so that means preliminary means this pile will not be allowed to be used in the permanent construction,

So you do a separate file at an isolated location within the periphery of the the boundary where the structure is going to be built It will not be within inside because what you do not want you do not want to fail the soil between close vicinity of a working pile,

For example you have a pile here and just half a meter away or 1 meter away you want to construct a pile and fill it which is not very good because you cannot install another pile in the because the soil already have mobilized its full strength and failed,

So normally you will go little bit away but not very far you cannot do the testing several kilometres away it does not represents the actual site conditions So within the parameters probably representative location you will do a 1 preliminary test for 250 piles,

So you can see here it is only a guess there is no rule book or it is not representing some kind of you know relationship it is only a guess that it may actually give you some information plus 1 working pile test for every hundred piles,

That means among the remainder of the piles every hundred piles you select one and then do a where the the ground conditions are very much unknown probably not very clear No previous pile test data is available in the site new piling technique is used in case in that area every time,

They were using a concrete pile but suddenly you are going to use a test you are going to use a steel pile then it is an unknown experience very limited information available in such cases you do this Where as if it is the other cases you know your risk is reduced with reasonable information then you can increase or decrease the number of piles per testing,

So you see here 1 preliminary test for 500 piles which and then for very low or in fact you got plenty of data then you can also use 1 in 500 1 in 100 or 1 in 200 In fact codes are not suggesting any of these numbers because they leave it to the,

You know the owners or consultants who are representing the design validation So normally we design something very similar like this 1 in 250 but not very projects will have 250 piles you know maybe 10 20 50 so if you do one pile that itself is good enough,

So this is only a guidance which if you are representing your company for pile testing or if you are writing a specifications for pile testing you can put that kind of number Rabbit load test versus dynamic load test you know the kind of capacity that you expect you know 30 mega Newton is $ 3000 tonnes and what kind of hammer,

You will be using just information that you can use it that much is practically possible to do the testing So if you remember we were talking about pile capacity in offshore pile system I think we were talking about 20 to 30 mega Newton for each pile which is something like this,

So it is not that we cannot do it can be done but at a very expensive system design because water depth is more and you want to design a reaction pile for such type of testing will become costlier than your jacket so that is why we avoid,

I think we just discussed about static maintained load of test versus static penetration test or the so-called constant penetration test you can read some of the information about the past history of what was done the maximum load of what was achieved in the previous several years it can be done to that much of load 3000 times,

So you will see if you go around some of the the pile way construction I think MRT construction is going on I think 6 months back so many places they were doing pile testing for the pillars the big pillars you will see that a use platform is built and concrete blocks are stacked upon each was about 600 tonnes,

So you can see that the bulkiness of that platform to load this 600 tonnes because you calculate a 600 tonnes by either by sandbags or by concrete blocks you will get 3 to 4 layers of concrete blocks will come So safe working load ultimate load and design verification load sometimes differ from we discussed about safe working load is a working load of the pile as per the design requirement Ultimate load includes the factor of safety that means either 2 or 2 and half or whatever the design factor of safety,

As per the design code If it is a IS code you normally use 2 or 2 and a half whereas API code we use 1.51 through and so this is the test load that you will apply if you do ultimate load test Sometimes design verification load is in between these 2 we go 50 percent overload instead of failing the pile,

We do a pile load test taking between the working load and the ultimate load sometimes 25 percent higher than the working load Still the pile can be reused because you are not failing it but it is slightly overloaded just to see that how the behavior goes,

Because if the pile fails immediately after reaching the working load after say 5 percent the the factor of safety is not there anymore So design verification load it can be any one of them or it can be in between also A typical onshore pile load test we will just read the methodology how it is carried out,

So you can here this is a good ground condition means the ground at the surface is reasonably good So we have a gravity based support system something like this you construct pillars sometimes we actually use concrete blocks,

You know simply put on 4 Corners make a steel beam something like this and just you have your pile previously installed which is going to be tested and then with a prepared pile head it could be a concrete piece or steel piece placed on top and then you start stacking up your weight because while you are stacking up because people have to go up and load,

It or you your Crane has to bring material and then just keep stacking up And then you will place a hydraulic jack or Jacks 1 or 4 of them normally 4 of them is used and just jack it up So what happens is previously when it was loading is done at that time no load is going to the pile and safe because for a longer duration,

You do not want to keep this condition because it will topple or slides down to sideways you will be putting big danger on the pile itself as well as the system So normally you have this is called Cantalage weight distribution system this is feasible only when the ground conditions are good number 1 and also the the distance from the pile should be sufficient enough that the load does not actually alter the soil conditions in the vicinity of the pile,

Imagine if you do this and if the soil gets actually squeezed and get compressed the pile capacity that you are actually going to measure is not going to be represented in the actual site condition because already the soil has been compressed and consolidated,

So that is why you have to keep this support system quite away from the pile itself so you have to keep it 3 diameter to 4 diameter away so this cantalage becomes actually very large depth girders normally you will see 2 meter-3 meter girders spanning between the supports something like this you have to keep 10 meters away if it is a 2 meter-3 meter pile,

So they will be away so that that influence of the reaction is not coming back to the soil So this is a typical onshore pile load test that using you know spread footing type reaction system so that is the idea put behind So this test can be repeated if it is a working load test you just load-unload load-unload,

But load will not be applied in one single stage normally because then you you will only get one load one displacement relationship So you actually divide the total load into say several steps if it is a 300 times divided into say 5 or 6 steps and put 300 into say 6 steps means 50 tonnes and just look at the displacement then go to hundred tonnes wait for some time and till the displacement becomes constant,

Then you take the displacement reading go and put the further loading so it is just done in steps And then similarly you can do a unloading so from 300 you come to 250 and 200 and so on so you can see whether the loading path and unloading path is same or different,

If there is a plastic deformation then you will see that there is a different load path from loading to unloading so that also can be verified If it is a soil condition that the top surface soil is not good or it is going to distribute the load very close to the the pile that is being tested then you may actually look at installing additional piles and this is the case most of the cases it happens like this So install additional number of piles in and around the test pile,

Normally 4 number of piles are installed and you prepare a cantalage which is nothing but a just a grid of beams which will support these weights to re stacking during unloading process and then when you want to do the testing you simply use the hydraulic jacks to activate,

And then lift it up So you can see the difference between soft bound you know soil condition at the surface to good soil condition the expense increases several folds You can see here here just only a simple pedestal support quick to make easy to remove where as when you go to this one you can see here for one pile load test,

You are installing 4 number of piles so you can see the the multiplication of the time and the cost and the removal you have to remove these piles you cannot leave them there itself unless it is isolated place,

So basically the procedure is same only the difference is depending on pile condition you will do the support reaction and cantalage according to the requirement And if you are going to do the same testing in coastal waters 5 meter 10 meter 15 meter 100 meter water depth can we do this,

So that is where we bifurcated into a different idea if it is a 20 meter water depth yeh probably you can design a pile which will be directed around the other load testing pile and make a platform something like this and then construct this frame load and unload can be done up to say 10 meter 15 meter 20 meter,

But when you go beyond 25 meters will easily see that the diameter of the pile tested and diameter of the support frame the diameter 0 becomes too large If you actually have to do a pile test in say jacket location 100 meter water depth because jacket is still not there because jacket will come only after you complete all your design and everything,

You cannot do testing of a pile through a leg for sure it is impossible So when you want to do this 100 meter water depth imaging you may have to actually specially fabricate a jacket vertical in nature is not it something like this and keep the frame there and put the pile inside and do the testing,

That means, it becomes another project so that is why this pile testing is completely not feasible so maximum pile testing I think for coastal areas people have done up to 20-25 meters maximum beyond which you will see that the design of the system itself becomes a problem,

Specially when you are doing so much loading coastal areas 300 400 500 tonnes But for jacket type of structure if you want to mobilize weight of 3000 tonnes which is becoming a bigger problem so how to avoid even in coastal areas even in land based structures can we do testing without this weight,

This is one of the very good idea so that you can avoid for example if I go and connect this beam with this pipe so what will happen I do not want to put the weights here so instead of using this weight as a reaction what we want to do is we have simply weld this this beam with this pile So what happens,

When you are actually putting up the hydraulic jack the reaction will come from soil itself so that is basically the idea in the recent times no one wants to do a this this is called Dead weight method of testing,

And you can just look and eliminate the so much of weight bringing the weight stacking upon and removal can be removed provided these piles which were installed as a reaction pile or a support pile has sufficient pullout capacity otherwise that pile will come,

You do not know whether you are measuring the this displacement of this pile or whether you are measuring the pullout of the other pile which will become a very complicated situation,

Pile Load test

PILE LOAD TEST PART -2

Let us continue with the pile testing so by this I think you could understand the 3 concepts concept 1 foundation by means of simple spread footing for the cantalage itself And basically pile foundation where the ground condition does not permit Load distribution around the test pile the primary concern is we should not put undue load to the pile soil interface which is being tested,

So that is why we have to space it larger enough so that the pressure from the thus upload pile cantalage support pile does not affect or influence the result of the test pile itself that is one concern The 2nd concern you know when you are doing measurement of a displacement of the pile being tested you need to have a firm ground or a darter line by which you will be able to measure the the settlement,

For example in this case the ground condition is good and also you have accessible ground so you just put the darter line which is not going to change over period of time during the testing So if there is a easy way of putting a dial gauge with respect to the ground and then measure the movement of the pile,

Now if you go to the offshore condition what happens if you have no firm condition or firm ground you have to use only the the pile which is supporting the cantalage but at the time of testing it is not loaded anymore,

So you can use that as a reference and use a beam or some welded connection so that you can use the dial gauge So what we need is the the firm place it is not moving during the testing so that is one of the 2nd concern And then when you are doing the testing,

In any case it is not influencing the soil-pile interface or the capacity of the test pile which is being done the now-that is one of the idea so you need to keep it faraway 3 to 4 diameters so your cantalage anyway will require a larger space to stack up the waste and things like this Very rarely in coastal areas we do this because,

It is very expensive one of the tests could take months to set up and do it and bring back A typical cantalage test which is just on land so you can see here even in this particular case it was done in one location in Kakinada where last year before you can see piles were driven so this ground condition was so bad that even you cannot spread the load which coming from so much of sandbags,

So we need to have piles going down to a firm ground because the total top 15 meter of soil is play soft clay and if you try to put some spread footing it will definitely think under this kind of support reaction load during stacking and then you cannot retrieve and every time when you just load and unload the foundation becomes no use,

So that is the picture that you are seeing the pile is being tested which is at the middle and basically the pile will be provided with a pile cap steel plate and these are the jacks which are just placed between the cantalage and pile head just to stack of you know And the dial gauge can see here is placed at this place and this is the reference to the pile head itself,

And this is the bottom line which is not moving So when the pile is moving up the dial gauge will show the displacement every time when your how much pressure you are applying The alternate ways also because instead of instead of going for cantalage with self weight or dead weight,

We can actually use this method by using the pile itself as a reaction frame So you do need to stack up weights only thing is the load is produced onto the test pile by means of the compression load because you are just holding this cantalage frame on the sides using the pile so this is being a welded connection,

So always this anchor pile will be under tension so you need to have sufficient capacity of the anchor pile so that so that means if you are testing a 3000 tonnes here each one of them will have to be divided by 4 and recently have designed with the adequate penetration because it is only tension At least this pile have the N bearing whereas the anchor pile will not have N bearing so you need to have sufficient penetration sometime it may become very large,

And basically bigger bigger than the test pile because you need bigger capacity in tension than the test pile is being a compression capacity so you have to be little bit So that is where this method becomes little bit difficult because it might become very expensive,

When you compare with this maybe better because you do not need to mobilize so much of material movement every time because it is not one-time you will see that later on the sandbags have gone back and forth several times because you have to do loading sequence and unloading sequence and you have to repeat the test at least 2 times,

And that is where you find this is a time-consuming process and also very expensive Anchor pile seems to be very good but then caution needs to be taken in terms of design make sure that when the pile is being tested this is the anchor that you have designed it is not going too much,

Otherwise you will be measuring actually relative movement of the pile anchor pile and the pile being tested Typical reaction pile setup so you can see here this is the pile being tested pile requires to be tested otherwise you have the jack being placed at the and these are the pile heads the left side and right side you see the pile heads which the piles are being driven with the pile head,

And when you just push this hydraulic jack upwards the reaction being applied to the test pile and these the reaction piles on the left side and right side should have sufficient capacity and basically that should be designed And just a closer view of how the hydraulic jack is placed in the girder,

So that it reacts against the test pile as well as the reaction pile Another load test using concrete blocks instead of sandbags many times people use this because it is easy to handle and can be used in multiple places only require storage,

But in any case in construction sites you will find many of these concrete blocks uhh spare capacities available there but many times people use these sandbags because easy to dispose because they can be used for construction work no extra storage space is required and each one of them will be weight before placing it on the top so that you know the weight what it is only the stability of them,

Sometimes bit of a worry because even a small eccentricity caused by either placement or by you know stability the whole thing can be turned In many places if you notice pile load test failed because of the cantalage tilted or cantalage failed which will cause quite a bit of problem,

Whereas using concrete blocks is quite useful because it is very stable sometimes these concrete blocks will come with a sheer case so you can have an opening at the bottom and you can when you place it it will not go anywhere and horizontal stability is well-established,

We can have precast blocks specially for testing not just for any other purpose So the ultimate load test is basically done to the load which is taken to the maximum failure capacity of the pile which will be 2 times or 3 times depending on what the factor of safety used in the particular project of particular core of design,

It is most of the time for IS codes we design for factor of safety for 3 which is for concrete piles which actually says 2 to 3 but then mostly we use factor of safety of 3 that means you find out what is the load that is designed for for working conditions take it to factor of safety of 3 and then find out So typically,

If you look at 300 tonnes is a working load most of the 1 meter-1 and half meter diameter piles then you multiply by 3 you will take to nearly thousand tonnes so imagine thousand tonnes what could be the requirement for dead weights Working load test is typically one and a half times safe working load so we want to go for slight overloading,

But not to the ultimate stage As long as you want to see passing of the working load and also have little bit of budget get depends on how much design margin is available at sometimes be reduced to 25 percent we normally call it overload test Even mechanical devices nowadays everyone of them the working load test is not acceptable,

You have to go for slightly overload because if the load exceeds the working load even by slight amount it should not fail so that is why overload test is about 25 to 50 percent So the 2 methods of testing that we were discussing the other day is constant rate of penetration or maintained load constant rate of penetration is just you can see here 0.75 mm per minute,

So it is a quite slow process and that eventually required by the British code 800 is for design of foundations And maintained load test typically used in most part of this construction site in India is very easy to carry out you do need a sophisticated loop back system simply put the weight and get the whereas the constant rate of penetration,

You need a good amount of instrumentation to read the the penetration backward and adjust the pressure accordingly and it can only be done by hydraulic system not by dead weight and cantalage method it is just not feasible,

Whereas the maintained load test even in a very simple method which you need a dead weight and a jack And the load shall be maintained constant until settlement rate is decreased to 0.25 mm per hour so what we normally do is use you set up your cantalage put the weights safer example 900 tonnes divided into say 5 steps or 6 steps,

So the step 1 of the load and this activates hydraulic jack to transfer the load to the test pile relieving the Anchorage piles or support system and then monitor the displacement Initially displacement of the pile may be larger slowly  reducing indicating that the soil has achieved its failure state at that load and then it will go constant or may slightly increase in a very low implement,

So once you see that it becomes flat the displacement graph is flat that means you are not expecting any more images settlements you may actually expect long-term settlement which may be several years which is we are not interested in that So basically then how do you decide when to stop the or when to restart,

The unloading process because every time you are going to unload it bring to 0 then stack up to the next increment So 1st time say you arriving 200 tonnes and bring to 0 that means you have to take out the load and load it again to 400 tonnes so that process when you want to start as soon as you see the displacement relationship is going flat,

That will be better but if the rate is still within this then you can go that means when the displacement is happening you cannot do unloading process So maintained load test is quite simple we will see the procedure later on something like this so you see here you put the 200 tonnes and then that the displacement is increasing,

So what you will see is when you are doing unloading process if there is elastic part it will come back There is permanent deformation of the soil that will not come back that will be residual so it will keep on stacking up so that is what we are interested in Similarly we go to the 2nd 2nd step so when the 200 ton weight is placed on the cantalage,

When you relieved the hydraulic jack the load will go back to the support stock then put another 200-300 tonnes on top of it It will become 400 ton take the hydraulic jack and load it on to the pile and just repeat the procedure until you reach the total test load it could be ultimate test load or it could be working test load,

And every time you do this you will see a loading-unloading curve you can see so basically you will be taking this as a displacement 9 mm 8.5 mm for 200 tonnes so you can go and plot here load displacement in a different relationship,

And typically we will take several hours because get this flat curve sometimes you may have to wait longer time depending on type of soil if it is a sandy material you will get the displacement quickly after that it will just become flat If it is a clay it might take little bit longer time but then instead of setting this criteria IS codes actually gives the time to wait for one hour depending depending on  type of soil,

You may only vary little bit So if you look at the procedure given in IS codes it will give you the timing every time step how much time you need to wait and then start the process of loading-unloading In fact this this particular procedure is taken from pile testing manual which I was talking about day 1,

So the design specifications load all it is basically the test load if it is ultimate test design verification load will be your total load multiplied by the fact of safety 25 percent 50 percent 75 percent so this procedure is just segmented into 4 subdivisions 30 minutes so once you load 25 percent load wait for 30 minutes and 100 percent load wait for little longer time,

And then during the unloading process only because relieving of elastic compression will take just like this it is not going to take time so unloading time they are just allowing you to only little time 10 minutes And then again we start the process  100 percent and you are going to do a overloading test,

There you are going to wait for little longer time beyond the design verification load if it is a working load test and then repeat the procedure So basically this is just typical time versus increment of load,

I have just taken from the you know the manual of pile load testing from the Association of civil engineering contractors every everywhere they used this but if you look at the IS codes they may actually gives slightly different numbers and different timings,

You know so depending on which jurisdiction you want to use So if you look at this graph load displacement curve for ultimate load test up to failure So you can see depending on type of foundation material you will see 3 types of so if you look at the blue one N bearing and V crock basically it increases and then suddenly fails,

So you will see a certain capacity reaching the rock is trying to fail so almost like elastic and perfectly plastic so something similar like this And if you look at the black one friction pile in soft clay or sand you will see that highly nonlinear it keeps increasing and then the failure rate will be slow down achieving certain capacity,

Or else if you have a fiction pile in stiff clay also will be very similar but then there will be a downgrade effect because the stiff clay broke down when it is achieving the so typically you will see something similar when you plot the when you extract the displacement from  such plots,

Nowadays you can automate these kinds of things so automatically we will get a time bound graph then you can later take the displacement come up with the displacement versus the applied load graph is something like this and basically you need to decide,

Now what capacity is to be taken as ultimate or working load So depending on what the allowable all ultimate reflection that you want to permit remember when we were doing the TZ curve for clay and sand we were talking about 0.1 inch for sand and then 1 percent for clay something like this,

So that corresponds to the ultimate failure whether you want to consider here for steel piles has to be decided by what is your ultimate failure to state you want to define So once you define that limiting load or limiting displacement then you can go onto the graph you can take this is my ultimate failure load of the pile beyond which we will not be able to take it Saturday is the idea behind construction of this diagram is just to make sure that your TZ graph you have made is going to be reflected here,

And if you get a representative from here and that will be realistic because this is based on test where as the other one is based on historical data and empirical methods So you see here in this particular one the ultimate capacity at 25 mm settlement is taken as 425 tonnes,

So though it is highly nonlinear some amount of plastic deformation have happened compared to when you go to the blue if you look at it this is completely elastic and after that only becomes the plateau so you can see the difference So that is the way we want to determine,

When you do a testing I want to determine what is the ultimate capacity The thing is you have to sum up what is the displacement at which you would like to take for example when you are designing a structure you will always have a limiting deflection in both horizontal and vertical working load conditions,

So then if you are allowable capacity you want to find from this then suppose your fix rate 10mm is the allowable displacement during service life of the structure then 10 you just go to 10mm the pile has achieved a 350 tonnes,

Pile Load test

Now if you take the ultimate capacity apply a factor of safety of 3 or 2 you will only get something like 120 tons so that is what will be revealed here If you do not know about this graph is going what you are trying to do is if you take 420 tons join from here straight away to 0 make a straight line that is what you are doing by means of factor of safety 420 divided by factor of safety of 3 on load,

Whereas if you have this this graph you know very well that you can allow maximum of 10 mm during its service life with the factor or on factor load then you can decide how much margin you have almost large margin is available,

When you take 10 mm and restrict to 10 MM is the displacement 420 decided by factor of safety of 3 you will get around 130 tons that is what you are going to permit But actually the pile has got deserved capacity up to 350 at the same 10 MM displacement,

So that will be the difference when you have nonlinear load deflection curve especially after testing So this will give you a picture how much extra margin you have because of the soil behavior and if you take this one you will not get anything better is not it Because you are grabbing almost linear relationship,

If you take that will be the capacity of say 550 tonnes divided by straight away factor of safety of 3 you will get somewhere around 180 tonnes Whether it is 10 MM or 5 MM you are going to just linearly prorate so does not matter So that is the idea of constructing or establishing load displacement characteristics up to failure,

If we have only established up to for example some lower displacement because you are not going to do a failure test you are going to do a working load test just up to the linear portion then you may not actually reveal how the behavior after this this is why at least one or 2 piles at the site you have to do up to failure to see how much margin,

You have It can behave this way which we do not know unless you do the testing Then we also move onto horizontal load test basically similarly you can do horizontal load test One of the biggest problems is doing reaction she just now we have learned about vertical load test with support arrangement,

Somehow we can make it because it is similar piles can be driven but when you do horizontal load test you need to have some ground or firm support condition just to measure the horizontal displacement of the pile and also to transfer the reaction from the jacks which is going to be a big challenge So doing it onshore itself is a challenge,

Then when you are doing it in coastal or offshore conditions it is even a challenge because you have to design a system stronger than the test pile itself and install it And also you can carry out cycling load test in cases of coastal structures where cyclic behavior is required for degradation effects So typically you see here some working platform is required,

And I would have just straightaway gone to the coastal areas where some of the berthing structures we still do this lateral load test to establish the capacity in horizontal direction but most of the structure on land normally we do not do you know horizontal load test not really required,

Because predominantly it is not so much problem so far for buildings and bridges predominantly gravity load So you see here we have a test pile which is in yellow colour and we have a reaction pile and just the jack,

Now you see here the jack is placed in between attached to both the pile heads and the jack is trying to expand by giving horizontal load through the test pile the reaction is transferred to the reaction pile Noise they reaction pile stable the reaction pile displacement is smaller or ignoble then what you are measuring is the pile head displacement otherwise he will be measuring the relative displacement,

Because this pile is also moving the other pile also moving and how much we have to find out So you need a chili credit system to find out what will be the displacement which will be quite tough,

Because you can theoretically calculate but then it may not be correct A reference will be used another few numbers of piles is required or system is required to support all this as well as access to these places,

So you will see that horizontal load test becomes reasonably expensive because you have reaction frame and you also have a reference frame the reference frame the green colour what you see is a reference frame against which you will do the measurement of displacements,

And they are need to be placed sufficiently you know wider spacing otherwise what happens when you are doing when you are doing reaction here when the pile is trying to bend it puts undue pressure on the soil and that soil gets affected by this particular location and behavior of the lateral capacity is going to be affected to some extent and that is why you have to have minimum of 3 diameter or 4 diameter or 5 diameter,

Once it become wider spacing mounting of the jack becomes a problem you need to design a frame and that is going to put you onto support system together it has to be mounted onto the 2 piles which needs to be free to move so that is one of the challenge A typical cyclic load test results or plot how you carry out loading and unloading process basically horizontal load versus lateral load displacement,

You take it one cycle at particular load level bring it to 0 repeat it few times just to get the repeatability and again increase the higher load repeat it again load and unload since there is no dead weights are involved it is only hydraulic jack doing such load test is very easy then you repeat it again and again for various loads and stop,

When you actually reach the expected displacement for example ultimate load test you are trying to do for 100 mm maximum If you are doing a ultimate horizontal failure load test then you can go up to failure of the pile and stop otherwise you have a predetermined load by which it will not be a larger capacity,

Most of the pile if you look at 50 tonnes or maybe maximum 70-80 tons unlike the vertical capacity where you have thousands of tons or sometimes very large number Here it all be you know restricted by the pile horizontal shear because if the soil does not fail what will happen the pile will fail,

So if you look at the Shell capacity of the pile that will give you the maximum magnitude by which you can test in fact will apply factor of safety on it What you do not want you do not want the system to fail before the soil fails system means the pile itself or the anchor pile itself,

So you will find out what is the bending capacity of the pile or structural capacity and shear capacity Make sure that you have got sufficient factor of safety available on the structural system prior to go to ultimate load test,

Because you do not want the system to fail when there will be a catastrophe And in some cases in the coastal structures like berthing structures we may require pullout test because some of the piles are actually going to have tension capacity requirement especially when you build a berthing structure the front pile will be in tension the back pile will be in compression,

When you are having shift or berthing against the berthing structure So such you may require a pullout test instead of a compression test it is exactly opposite of it only the cantalage placement and the hydraulic jack placement is in the reverse condition,

If we just go back to our the this test somewhere here I think something like this so this this one is anchor pile method you are doing a compression test just reverse the process and placement of the hydraulic jack you will get the So basically the cantalage arrangement is attached to the reaction pile,

And there will be stress blocks and you have hydraulic jacks and then you attach your brackets welded to the test pile itself So what you are trying to do is you are compressing the reaction pile and pulling up the test pile so basically you are just reversing the reaction just to get what tension capacity is available Many times you will require this for coastal structures but magnitude will be not very big,

Few hundred tons So what are the things that we need to note down when you are doing a compression load test the support frame needs to be designed appropriately because you you have such a large weight to be placed Support piles needs to be placed away by 3 diameter that makes the so if you have 2 meter diameter pile you need to go for either side 3 meters 3 times 2 meters 6 meters so the frame becomes 12 by 12 or 15 by 15 Structural capacities of test pile,

As well as the support piles leads to be made sure that it has good adequate capacity Special care must be given to the test pile because it is a cantilever whereas actually the same pile when it is working in the actual structural system it may not be a cantilever it may be combined pile heads with the other structures,

Whereas when you are doing testing it is a pure cantilever you must remember what is the difference between pile in a temporary condition which is a cantilever to a supported pile in the permanent condition because of high level buckling The load capacity will come down drastically,

So you cannot think about always you have pile 1 meter diameter in a permanent system which is connected to a bigger structure which may not behave as a pure cantilever so the effective length and the conditions are different you are 1 meter diameter pile may work there whereas the same 1 meter diameter pile,

When you bring to the test category it becomes a pure cantilever number 1 high-level buckling load will be definitely half or less than the actual buckling capacity When you are doing the same ultimate load test here you do not want the pile to fail So what we really need to do is keep the diameter same because you need you do not want to change the pile-soil interface is not it Because we want to test the 1 meter diameter,

But what you can do is you can increase the wall thickness to increase the bending stiffness buckling capacity shear capacity in such a way that structure does not fail but the soil pile interface is being tested,

You understand the idea know so you need to make sure this otherwise if you bring the same pile and testing before the soil fails the pile collapses and then it puts the whole system into problem that is what you have to make sure So what IS codes are suggesting instead of what we saw was 25, 50, 75 they have divided into 5 sub-segments of loading 20, 40,60.80 to 100 so it is just a little difference,

And basically loading-unloading cycles almost similar I am not very sure whether I have copied the time cycle You can look at the code the time is also given 30 minutes up to 6 hours so you can refer to the code but what the criteria,

I wanted to look at it is basically when do we decide it has achieved its ultimate capacity and it is applicable only for concrete piles you cannot apply this one to steel tubular piles uhh it is not under that particular code So if you look at this graph,

I have just plotted one of the recent last year test two thirds of final load at which the total displacement attains value of 12 MM So you just look at the graph and just go around apply the criterion number 1 the safe load on a single pile for initial test should be least of the following,

So the criteria is given Do the testing comeback here plot the graph and look at these criteria whichever is lower that is your safe working load so that is the criteria that you are going to apply And of course this is written on the basis of onshore structures you know 2911 is a code for both the concrete piles for onshore applications not even for coastal applications that is why you cannot blindly apply this principle to a coastal structure on or offshore structure where displacement get area are different from dawn show structures,

You will see that they are very strict in terms of displacement because these are applicable to buildings and bridges or to some extent industrial structures on land where they are controlled by deflection Whereas if you go to coastal structures and offshore structures the displacement are definitely going to be larger,

You cannot even think of the criteria here because here they are talking about 25 MM When you think about coastal or offshore structure you are going to have several hundred millimetres of displacement because of the the magnitude of horizontal load you have to be a bit cautious and apply the principle differently 50 percent of final load at which the total displacement equal to 10 percent of the pile diameter,

So these are the 2 criteria so if you see there the criteria 1 and criteria 2 you can find out whichever is giving you the capacity I think even the lateral load also similar crater is given 50 percent of the final load at which the total displacement increases to 12 MM final load at which the total displacement corresponds to 5 MM and then any load corresponds to any specified displacement this is some at least some option is given for horizontal load,

So according to your project specific requirement so you specify I can go out to 50mm then I can look at so that if that is the thing that we need to have a decision-making process just doing load test alone will not be good enough you do not know what to do with that what you need is the demarcation what will be the acceptable displacement for that particular type of structure and applicable code in force,

What the API says we do not have a procedure to restrict the displacement unfortunately there is no requirement because we do not need because offshore structures are subjected to so much higher loading that if you restrict 25 mm displacement for example your structure will be so much bigger and may not be practical,

So that is why the the adapted method by API is to design by the factor of safety which gives you an adequate safety against pile failure or premature failure and at the same time you have a ductile material which is steel,

And you are not worried about failure by other means of fracture because the worry in concrete structure is larger displacement either in vertical direction or in horizontal direction can cause superstructure failure by fracture because the concrete cannot fail by the tail,

So that is one of the reasons why most of these concrete cores they restrict the displacement to smaller where as the offshore structures we never build using it except the concrete gravity platforms all the fixture types of structures are built by steel material has higher tensile capacity and also have a ductile characteristics In that reason we go by the method of engineering-based design based on soil properties with adequate factor of safety and we leave that we do not want to apply the restricting displacement,

The reason why we developed TZ all that is to make sure that pile is actually subjected to the actual load load displacement behavior and the bending stresses are calculated So if we have a larger displacement what happens is the pile is subjected to larger bending and larger bending means the requirement of section and the diameter and the thicknesses are going to increase,

So you design for it rather than trying to limit the displacement of the pile to lower value and increase the larger diameter so that is exactly the the design method adapted by API so so far I do not think any problem with that idea One of the issues with concrete pile supporting concrete structure is the architecture and finishers,

And serviceability requirement that is why it restricts the displacement to a very small value in fact the reason why we restrict to 1 inch is because of that You know if you have the structural system capable of taking the architectural finishes and service functions will be seriously disturbed that is why buildings are designed for smaller displacement,

For other post please click here
Click here of govt jobs

STANDARD PROCTOR COMPACTION TEST

STANDARD PROCTOR COMPACTION TEST

STANDARD PROCTOR COMPACTION TEST
PROCTOR COMPACTION TEST



STANDARD PROCTOR COMPACTION TEST

hello, In this post we will be going over The Laboratory procedure is used for a standard Proctor compaction test this Post will demonstrate how to conduct a standard Proctor compaction test in accordance with ASTM (American Society for Testing and Materials) specifications.


This test was developed to evaluate the level of compaction in the field of compacted soils In the proctor compaction test the soil is compacted into a mould as specific energy ➵➵➟comparable to the energy used in the field the laboratory practice is performed at varying moisture contents to establish a dry density versus moisture content plot.


From this plot, the maximum value not weight and optimum moisture content can be determined the practical application of this test in geotechnical engineering is for compacted specification of soils the maximum dry unit weight obtained from this test can be used to determine the relative compaction of soils in the field.

EQUIPMENT’S FOR STANDARD PROCTOR COMPACTION TEST



The equipment required for the standard Proctor compaction test is➯


➱4-inch mould having
➱volume of one-thirtieth of a cubic foot
➱collar,
➱standard Proctor compaction hammer measured weighing five-and-a-half pounds and dropping 12 inches to moisture content cans,
➱steel straight edge,
➱large mixing pan,
➱graduated cylinder capable of holding up to 250 millilitres
➱spray bottle,
➱metal spoon
➱knife we’ll also be needing
➱digital balance
➱oven for moisture content determination


In a sample extractor the soil that we will be performing the standard proctor compaction test on as a low clay silt obtained from the Mississippi River Valley the soil has been mechanically pulverized than air dried the lab documents pertaining to today’s lab can be found on blackboard the handout is posted there and is titled C 215 laboratory number five Proctor compaction testing in addition an ASTM standard pertaining to this lab is also posted ASTM the 46 98 pertains to practicum passion testing also available is today’s datasheet

PROCEDURE OF STANDARD PROCTOR COMPACTION TEST



The standard Proctor compaction test consists of mixing soil with water to a predetermined moisture content the soil water mixture is then compacted into a mold of a specific volume with a standardized energy at low moisture contents. inter-particle friction will hinder compaction resulting in a low unit weight as moisture increases the friction in between the particles reduces and the particles will compact into a more dense pattern.

STANDARD PROCTOR COMPACTION TEST
PROCTOR COMPACTION TEST





At past a certain moisture content notice the optimum moisture content water will start to take the place of dry soil particles and the dry unit weight will again go down by conducting several standard Proctor tests at varying moisture contents.


 This curve can be established in the maximum dry unit weight and corresponding moisture content can be determined to perform the proctor compaction test.


Start by weighing the empty Proctor mould without the collar, and record the empty weight on your data sheet also weigh the two moisture content cups and record their weights as well, with a calliper record the dimensions of the mould so the volume can be calculated average three equally spaced diameter dimensions in three equally spaced Heights dimensions so that an accurate measurement of volume can be established way out approximately 2,000 grams of the provided air-dried soil,


Now that we have our soil weighed out the desired amount of water to add to the soil must be determined the weight of the water that needs to be added to our soil can be determined from this equation,


The weight of the water equals the weight of the soil 2,000 grams in this case times the final moisture content minus the initial moisture content the final moisture content is the target moisture content which I have selected to be 15% the initial moisture content is all the water that is trapped inside the air-dried soil,


This has been predetermined to be 2.5% with 2,000 grams of soil and an initial moisture content of 2.5% in a target moisture content of 15% it can be determined that I need to add 250 grams of water to my soil or 250 millilitres to obtain the correct amount of water from the tap and pour the water into the spray bottle using the spray bottle,


Add the water to the soil and start mixing it till it becomes a uniform colour and consistency when all the water is gone and the soil has been mixed to an even and uniform consistency it is time to place the soil in the proctor compaction mould,


Start by placing the collar back on the proctor mould spoon enough soil into the mould that when compacted the soil mould will be filled approximately one-third of the height of the mould,


Now you want to place the mould on a hard surface such as a concrete floor and compact with the Proctor hammer compact the soil using the standard Proctor hammer use 25 blows spaced evenly throughout the layer for proper compaction,


After 25 blows take the mould back to the table scarify the surface and add more soil for the next lift scarify the surface of the first compacted layer with a spoon this will ensure that the second layer will bind to the first layer,


Well spoon enough soil into the mould so that when compacted approximately 2/3 of the height of the mould will be filled again take the mould to the concrete floor and compact it with the standard Proctor hammer,


The soil should fill the mould and extend past the top of the mould an eighth inch using the straight edge trim smooth the top of the soil mould using the leftover material fill any voids that might appear in the surface of the soil,


Remove all this loose soil around the mould and way the mould without the collar loosen the soil mould from the base with two hands carry the soil in the mould into the extractor and extract the soil from the mould,


Insert the soil and mould into the extruder with two hands carefully pick up the soil specimen and carried it into the other room,


After the sample has been extruded split the sample with your knife take samples from the top and the bottom and place them in the moisture cans,


For moisture content determination weigh the cans on the scale and record the weights place the cans in the oven for 24 hours,remove the cans and record the dry weights the dry unit weight of the compacted soil specimen,


The moisture content can be calculated from several iterations of this test a plot of the dry unit weight vs. moisture content can be determined from this plot the maximum dry unit weight and corresponding optimum moisture content can be determined.


You must read The Consistency Test of Cement  click here

Read in Detail About STANDARD PROCTOR COMPACTION TEST Click here

Delhi – Vadodara Expressway Pkg-22,

Delhi - Vadodara Expressway Pkg-22,
Delhi Mumbai Expressway

Delhi-Vadodara Expressway


About The Project- Delhi-Vadodara Expressway Is Going To Be The Longest Expressway In India After Completion Of It’s Construction Work, It Will Connect To Mumbai The Commercial Capital Of India Also That’s Why It is Named As Delhi-Mumbai Expressway as well,

Foundation Stone Was Laid By Union Ministers Sushma Swaraj , Arun Jaitely And Nitin GadKari On 8th March 2019,

This Expressway Will Be Constructed In 8 Lanes With Median Separator As per NHAI Requirements, It Will Reduce The Travel Time Between Delhi To Mumbai By 24 Hours To 12 Hours,

Delhi-Mumbai Expressway Project Is Divided Into 34 Stretches ( Packages) For Construction To Reduce The Construction Time And Budget,

Mumbai Vadodara Expressway

Delhi Jaipur Expressway

Locations Of Project- Delhi-Vadodara Expressway Or Delhi-Mumbai Is Going Through The Major Backward Areas Of Delhi , Haryana , Rajsthan , Madhya Pradesh ,Gujrat And Maharastra,

Total Cost Of Project- The Estimated Construction Cost Of Delhi -Vadodara(Delhi -Vadodar-Mumbai) Expressway Project Is 90000 Crore,

About Delhi-Vadodara Expressway Package 22

Delhi-Vadodara  Expressway Is being Constructed In Many Packages The Reduce Its Construction Time And To Minimize The cost, Package 22 Is The Part of  Delhi – Vadodara Expressway,


Starting Point- Kandarwasa (Ratlam district)

End Point- Bawadi Village- Near Shivgarh (Ratlam district)

Total Length- 25 kilometers,

Total Cost- 1022 Crore,

Bid Submission Date- 29-01-2020,


Bid Opening Date- 08-05-2020,

All Companies Filled The Tender Form- Many  Companies Has Shown It’s Interest For Construction Of Delhi-Vadodara Expressway, List Of Few Companies With There Bidding Amount Are As Below,

Delhi Vadodara Expressway Contractors ?,

Larsen and Toubro Limited- 993.007 Crore (L-1)
GHV- 999.22 Crore,
Ashoka- 1008 Crore,
JIANGXI- 1033.60 Crore,
Tata – 1047 Crore,
NCC- 1080 Crore,
GR Infra – 1087.77 Crore,
Dilip Buildcon -1120.05 Crore,
Sadbhav – 1152 crore,
Gayatri – 1172 Crore,
MonteCarlo – 1172.2 Crore,
DRA – 1377.41 Crore,
CREC- VARAHA JV- Disqualified,
GGHB- Disqualified,

Lowest Bidder Company- The Lowest Bidder Company For Delhi- Vadodara Expressway Pkg 22 Is Larsen And Toubro Limited, The Tender Value Filled By Larsen And Toubro Limited Is 993.007 Crore, Second Lowest Bidder For Pkg 22 Is GHV With 999.22 Crore Tender Value,

About The L-1 Company- Larsen And Toubro Limited Is An Indian Multinational Company, L&T Is One Of The Major Engineering , Construction, Technology ,Manufacturing , And Financial Services Conglomerate With Global operations , It Is Engaged Over 30 Countries Worldwide In Construction, Engineering , Manufacturing And Other Operations, It’s Revenue Is Over 21 billion USD,


Click Here For More Results,

Click Here For Current Govt Jobs
